Layout and function
Citan 12001-C/15001-CCitan 12001-C/15001-C BAH0039-2 07.15
51
5.2 Service brake system
The implement can be equipped
 with dual-circuit pneumatic service braking system.
 with hydraulic service brake system.
The hydraulic service brake system is not approved in Germany
and a few other EU countries.
 without service brake system (see section 6.1.3).
In Germany, the implement is equipped with a dual-circuit pneumatic
braking system.
The dual-circuit pneumatic brake system controls two brake cylinders,
which actuate the brake shoes in the brake drums.
The tractor also has to be equipped with a dual-circuit pneumatic
brake system.
5.2.1 Parking brake
Implements with a dual-circuit pneumatic service brake system and
hydraulic service brake system are fitted with a parking brake.

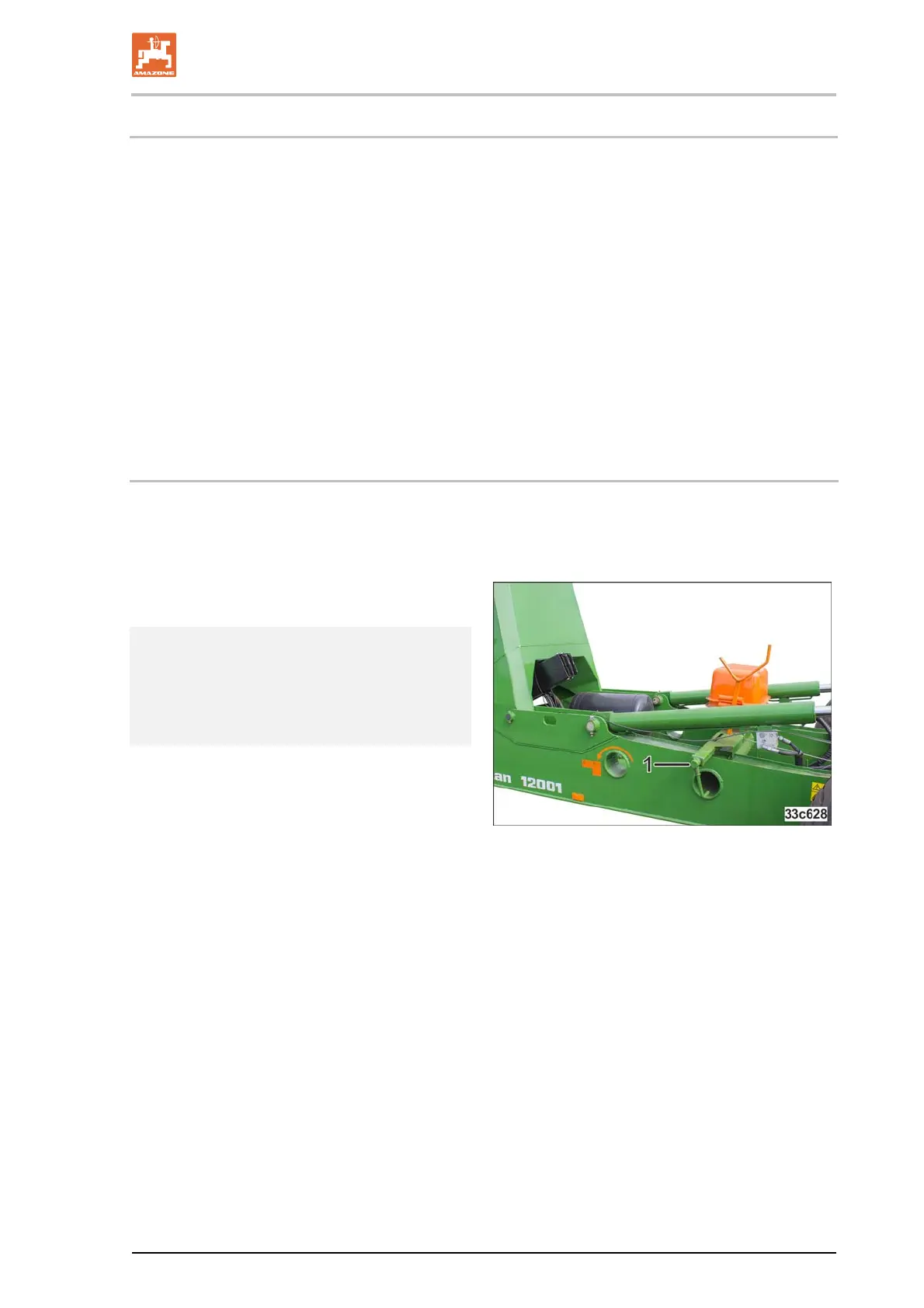

The crank (Fig. 34/1) is used to activate the
parking brake.
Fig. 34
Engaging the parking brake:
Turn the crank to the right (R).
Releasing the parking brake:
Turn the crank to the left (L).
