Fig.
13
Fig.
15
Fig.
17
Fig. 18

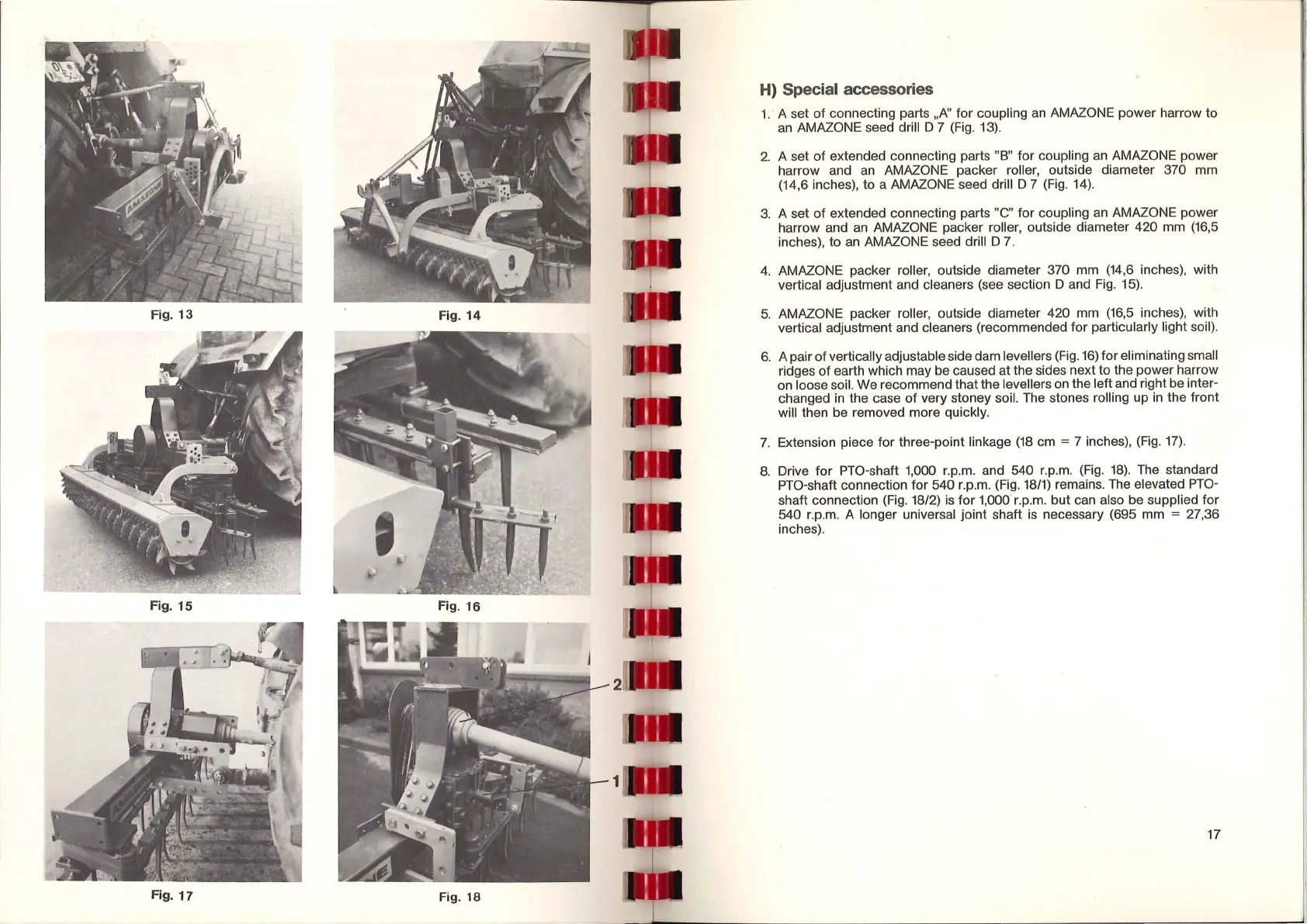

H) Special accessories
1.
· A set
of
connecting parts
,,A"
for coupling
an
AMAZONE power harrow to
an
AMAZONE seed drill D 7
(Fig.
13).
2. A set
of
extended connecting parts "B" for coupling
an
AMAZONE power
harrow and
an
AMAZONE packer roller, outside diameter 370 mm
(14,6 inches), to a AMAZONE seed drill D 7
(Fig.
14).
3.
A set
of
extended connecting parts "C" for coupling
an
AMAZONE power
harrow and
an
AMAZONE packer roller, outside diameter 420 mm
(16,5
inches), to
an
AMAZONE seed drill D
7.
4.
AMAZONE packer roller, outside diameter 370 mm
(14,6
inches), with
vertical adjustment and cleaners (see section D and
Fig.
15).
5.
AMAZONE packer roller, outside diameter 420 mm
(16,5
inches), with
vertical adjustment and cleaners (recommended for particularly light soil).
6. A pair
of
vertically adjustable side dam levellers
(Fig.
16)
for eliminating small
ridges
of
earth which may be caused at the sides next to the power harrow
on loose soil. We recommend that the levellers on the left and right be inter-
changed
in
the case
of
very stoney soil. The stones rolling up
in
the front
will then be removed more quickly.
7.
Extension piece for three-point linkage
(18
cm = 7 inches),
(Fig.
17).
8.
Drive for PTO-shaft 1,000 r.p.m. and 540 r.p.m.
(Fig.
18).
The
standard
PTO-shaft connection for 540 r.p.m.
(Fig.
18/1)
remains. The elevated
PTO-
shaft connection
(Fig.
18/2)
is
for
1,000 r.p.m. but can also be supplied for
540 r.p.m. A longer universal joint shaft is necessary (695 mm
= 27,36
inches).
17
