Hydronic Buffer Tanks
Commercial Hot Water Tanks

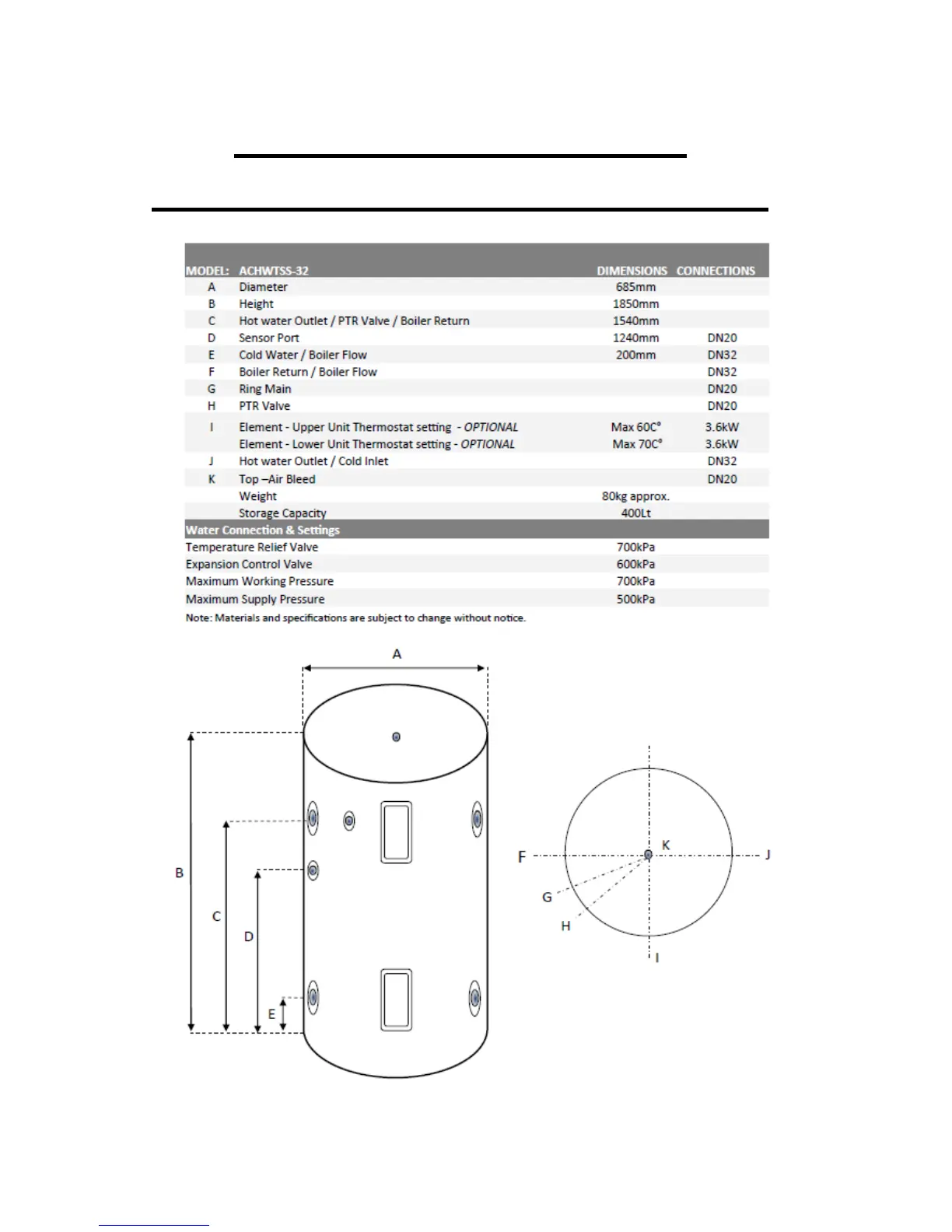

Model: ACHWTSS
Dimension
Fittings
A Diameter
680mm
B Height
1860mm
C Hot Water Outlet/PTR Valve/Ring Loop Return
1540mm
D Sensor Port
1240mm
DN20
E Cold Water/Heat Pump In
200mm
DN32
F Boiler Return/Heat Pump Out
DN32
G PTR Valve
DN20
H Element-Upper Unit Thermostat Setting
Max
60deg.C
3.6KW
I Hot Water Outlet/Cold Inlet
DN32
Weight
80kg
Approx.
Storage Capacity
400L
Water Connection & Settings
Temperature Relief Valve Settings
700kPa
Expansion Control Valve Setting
600kPa
Maximum Working Pressure
700kPa
Maximum Supply Pressure
500kPa
*Note: Materials and specifications are subject to change without notice
