Ambient ASHP-23 - Page 14

Page 14 of 38

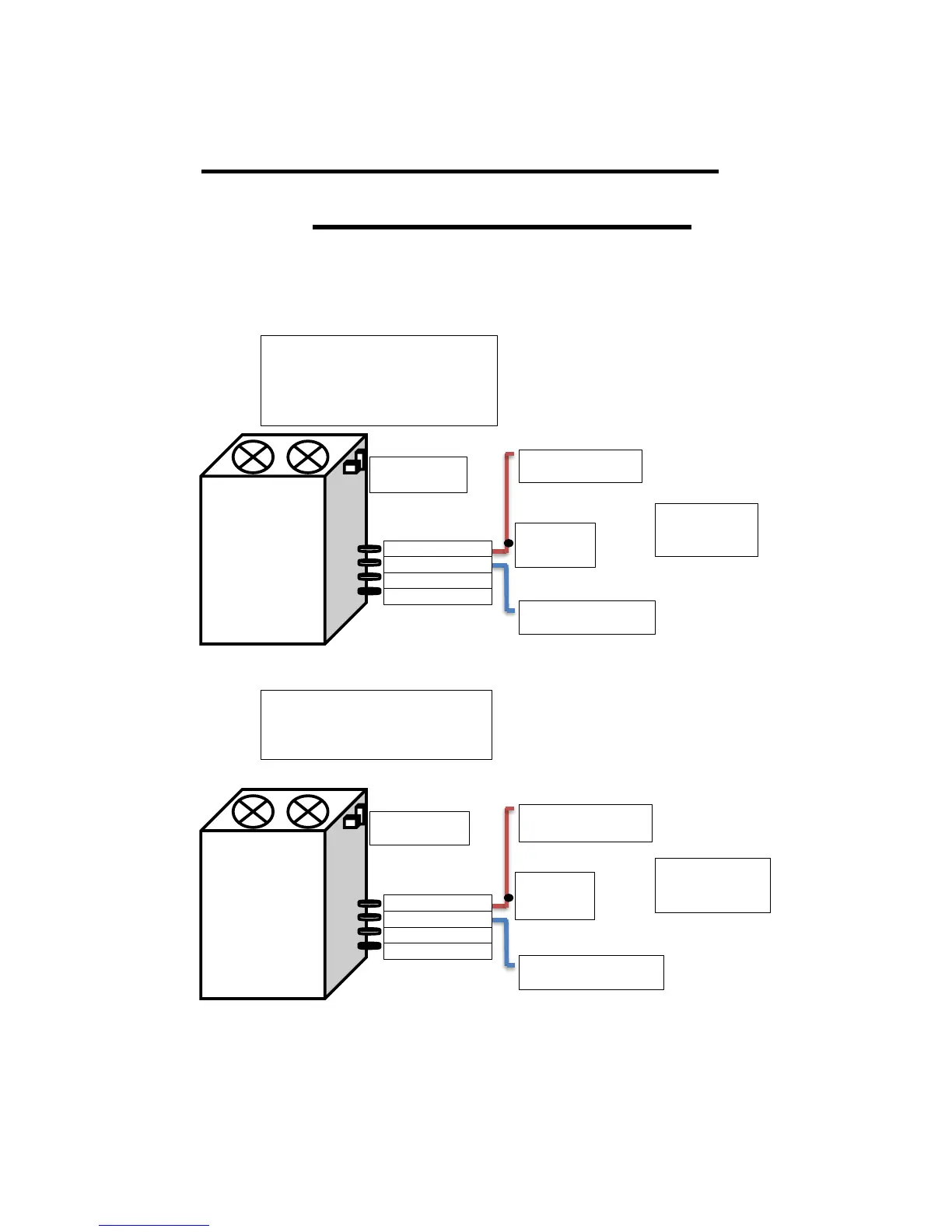

Installation Options and
Piping (Hydronic)
Diagram/Photo Copyright AusGeothermal 2018
3 BAR PRESSURE RELIEF VALVE ½ INCH
COLD WATER FILL ½ INCH MBSP
HYDRONIC RETURN WATER IN 1 INCH
HYDRONIC FLOW WATER OUT 1 INCH
AMBIENT WITH RADIATOR
HEATING PANELS
SENSOR POCKET
FOR SUPPLIED
PIPE SENSOR
ELECTRICAL SUPPLY
ISOLATOR
FLOW TO HYDRONIC
RADIATOR CIRCIT
RETURN FROM HYDRONIC
RADIATOR CIRCIT
ROOM CONTROLS
TO WIRE BACK TO
AMBIENT EXTERNAL
DIGITAL INPUT
CONTROL BOX
3 BAR PRESSURE RELIEF VALVE ½ INCH
COLD WATER FILL ½ INCH MBSP
HYDRONIC RETURN WATER IN 1 INCH
HYDRONIC FLOW WATER OUT 1 INCH
AMBIENT WITH FAN COIL
HEATING/COOLING
SENSOR
POCKET
FOR SUPPLIED
PIPE SENSOR
ELECTRICAL SUPPLY
ISOLATOR
FLOW TO CHILLED/HOT WATER
FAN COIL UNIT
RETURN FROM CHILLED/HOT
WATER FAN COIL UNIT
ROOM CONTROLS
TO WIRE BACK TO
AMBIENT EXTERNAL
DIGITAL INPUT CONTROL
BOX
