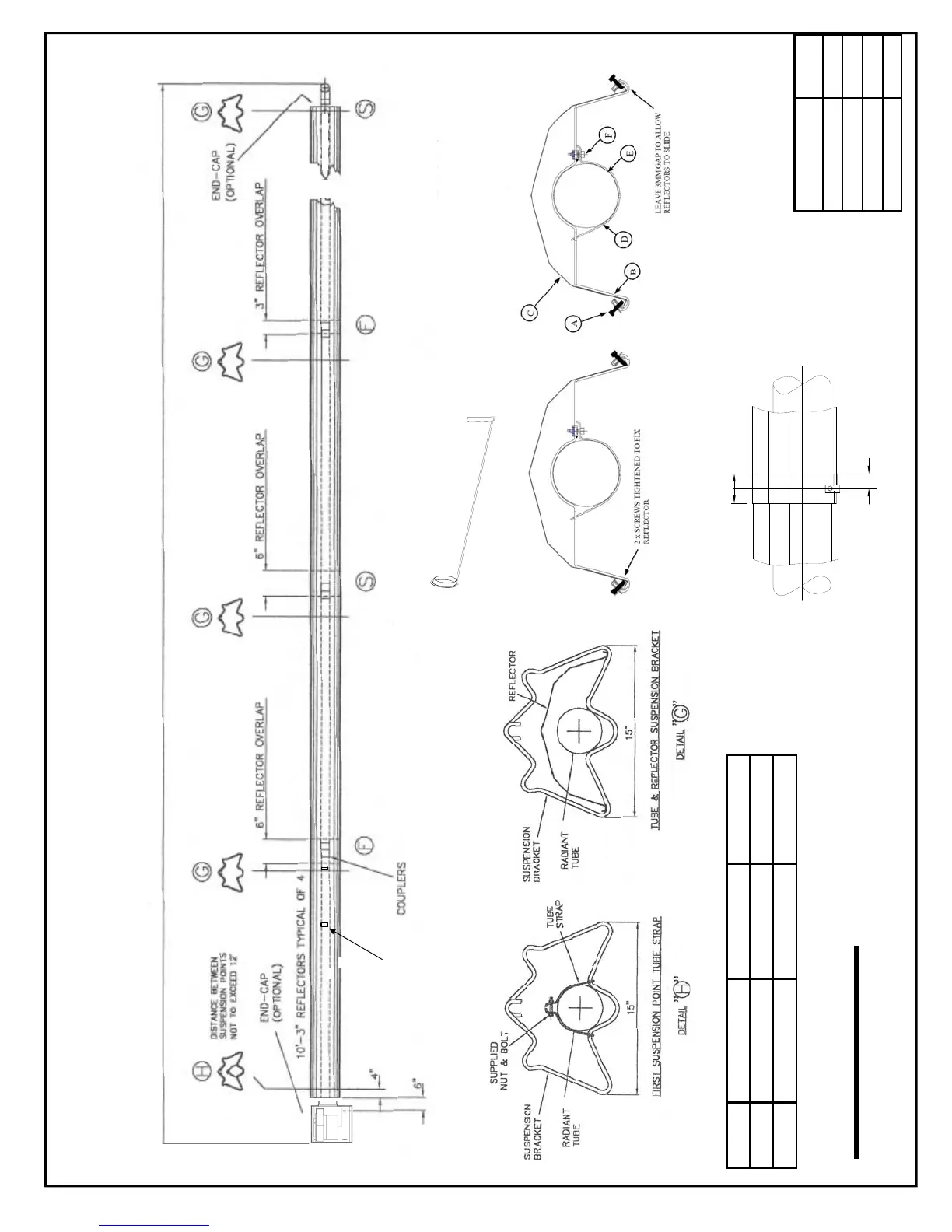

“VPLUS” SERIES INFRARED GAS HEATER
“S40”
BURNER INSERT DETAIL
NOTE: FOR VPLUS80 AND
VSPLUS100 ONLY
FIXED JOINT DETAIL SLIDING JOINT DETAIL
SERIES COMBUSTION TUBE REMAINING TUBES REFLECTORS
SC 4” ALUMINISED STL. 4” MILD STEEL ALUMINIUM
ER 4” ALUMINISED STL. 4” MILD STEEL STAINLESS STEEL
REFLECTOR OVERLAP
2" (50) MINIMUM
C
L
BURNER INSERT
SEE DETAIL
MODEL NUMBER BTU/HR
VPLUS80-S40 80,000
VPLUS100-S40 100,000
VPLUS125-S40 123,500
VPLUS150-S40 150,000
AMBIRAD
41’6½” NOMINAL OVERALL ASSEMBLED LENGTH
