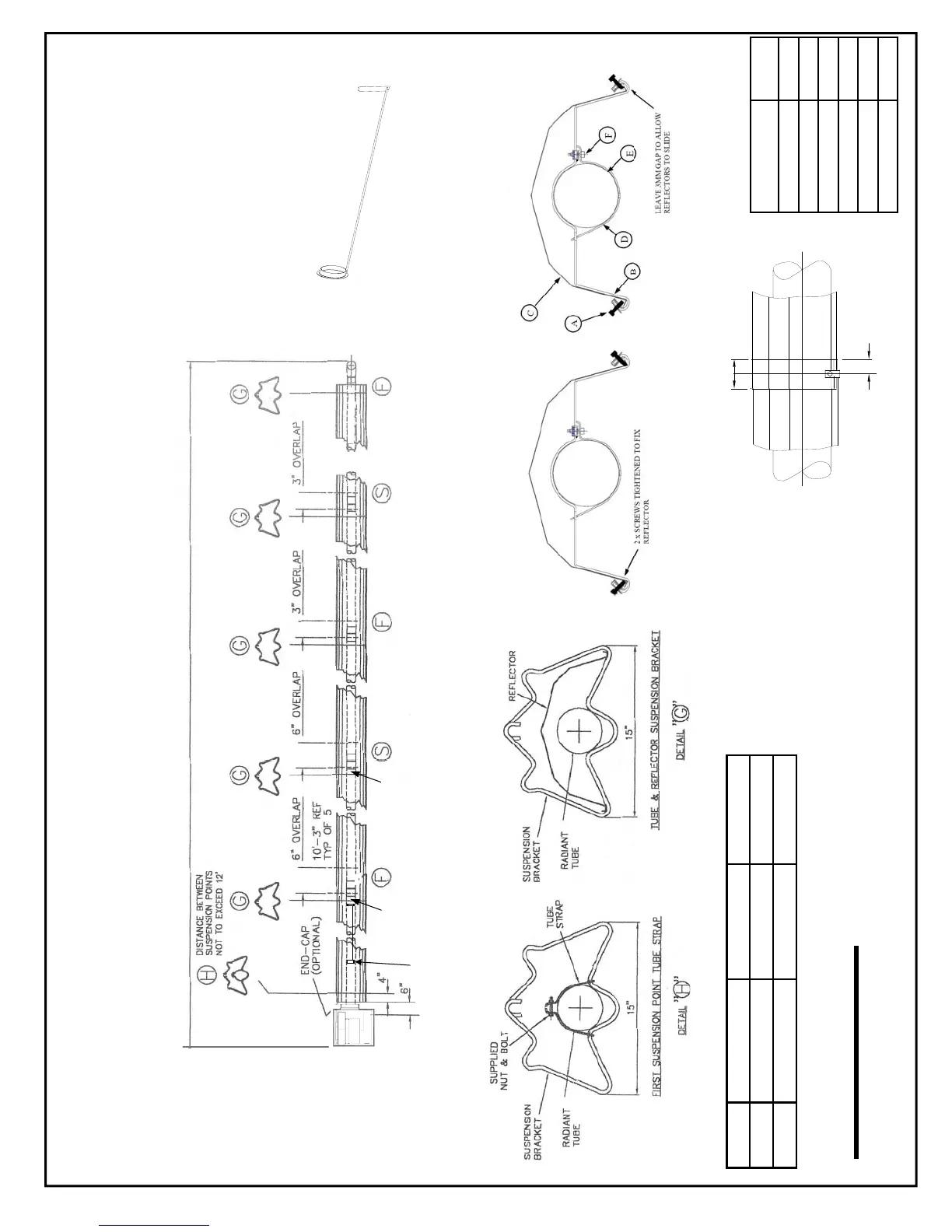

“VPLUS” SERIES INFRARED GAS HEATER
1st COUPLER*
COUPLERS
“S50”
FIXED JOINT DETAIL SLIDING JOINT DETAIL
SERIES COMBUSTION TUBE REMAINING TUBES REFLECTORS
SC 4” ALUMINISED STL. 4” MILD STEEL ALUMINIUM
ER 4” ALUMINISED STL. 4” MILD STEEL STAINLESS STEEL
AMBIRAD
BURNER INSERT
SEE DETAIL
MODEL NUMBER BTU/HR
VPLUS100-S50 100,000
VPLUS125-S50 123,500
VPLUS150-S50 150,000
VPLUS170-S50* 169,000
VPLUS200-S50* 200,000
VPLUS225-S50* 222,500
REFLECTOR OVERLAP
2" (50) MINIMUM
C
L
* NOTE:
20’ MINIMUM OF ALUMINISED STEEL COMBUSTION TUBES CONNECTED
BY HIGH TEMPERATURE STAINLESS STEEL COUPLING AS SHOWN ON
PAGE 34, FOR ALL VPLUS170, 200 AND 225 HEATERS
51’6½” NOMINAL OVERALL ASSEMBLED LENGTH
BURNER INSERT DETAIL
NOTE: FOR VPLUS80 &
VPLUS100 ONLY
