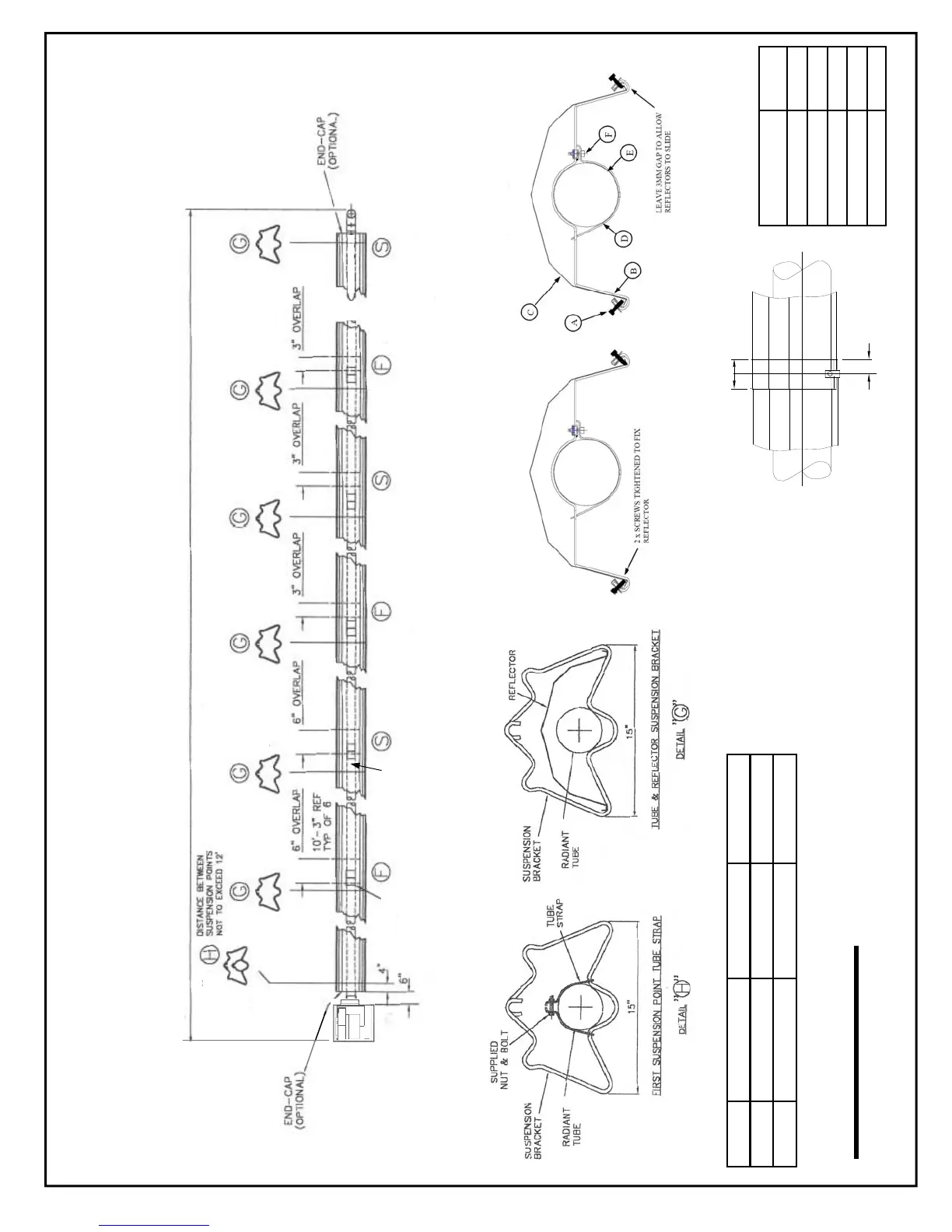

“VPLUS” SERIES INFRARED GAS HEATER
1st COUPLER* COUPLERS
AMBIRAD
FIXED JOINT DETAIL SLIDING JOINT DETAIL
SERIES COMBUSTION TUBE REMAINING TUBES REFLECTORS
SC 4” ALUMINISED STL. 4” MILD STEEL ALUMINIUM
ER 4” ALUMINISED STL. 4” MILD STEEL STAINLESS STEEL
“S60”
REFLECTOR OVERLAP
2" (50) MINIMUM
C
L
MODEL NUMBER BTU/HR
VPLUS125-S60 123,500
VPLUS150-S60 150,000
VPLUS170-S60* 169,000
VPLUS200-S60* 200,000
VPLUS225-S60* 222,500
* NOTE:
20’ MINIMUM OF ALUMINISED STEEL COMBUSTION TUBES CONNECTED
BY HIGH TEMPERATURE STAINLESS STEEL COUPLING AS SHOWN ON
PAGE 34, FOR ALL VPLUS170, 200 AND 225 HEATERS
61’6½” NOMINAL OVERALL ASSEMBLED LENGTH
