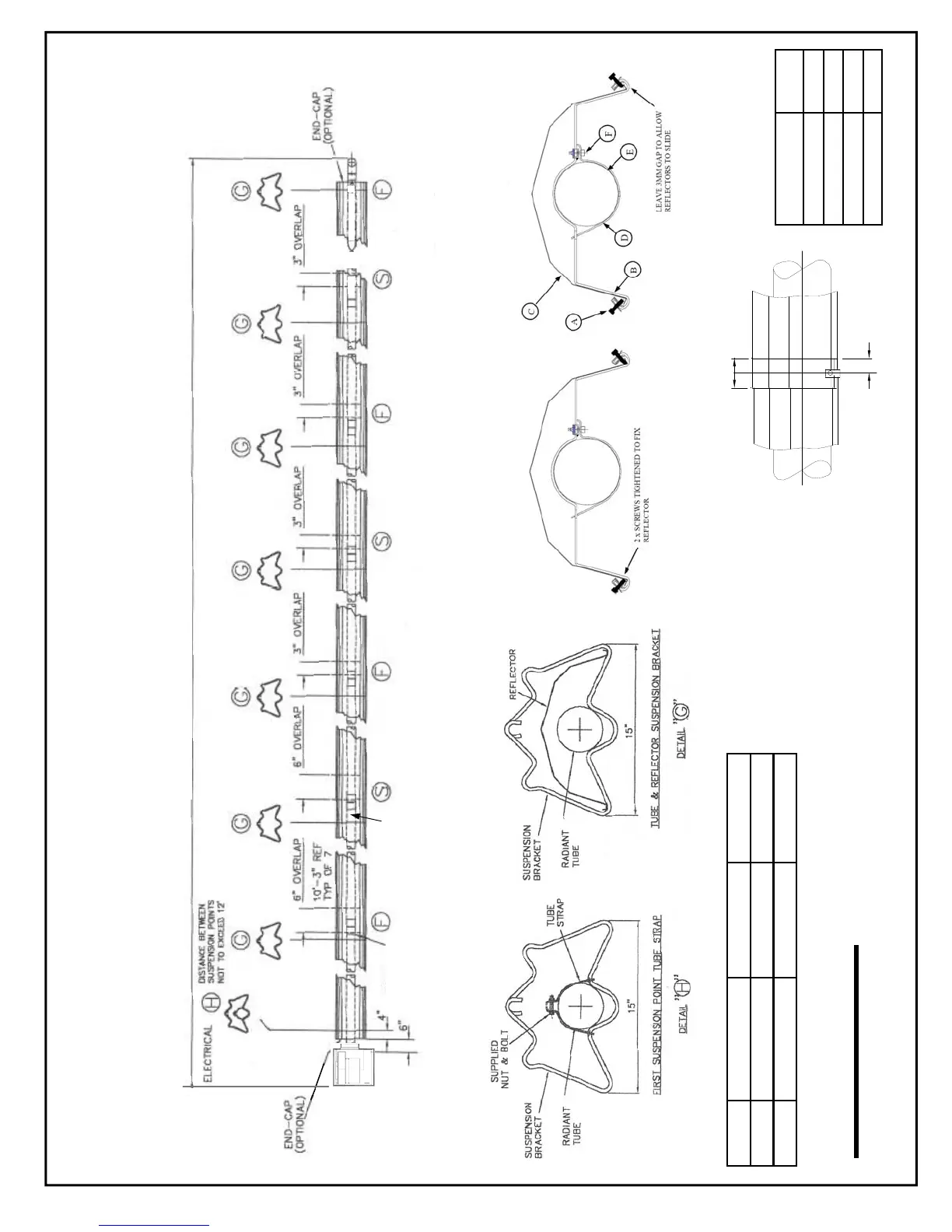

“VPLUS” SERIES INFRARED GAS HEATER
1st COUPLER*
COUPLERS
AMBIRAD
FIXED JOINT DETAIL SLIDING JOINT DETAIL
SERIES COMBUSTION TUBE REMAINING TUBES REFLECTORS
SC 4” ALUMINISED STL. 4” MILD STEEL ALUMINIUM
ER 4” ALUMINISED STL. 4” MILD STEEL STAINLESS STEEL
REFLECTOR OVERLAP
2" (50) MINIMUM
C
L
* NOTE:
20’ MINIMUM OF ALUMINISED STEEL COMBUSTION TUBES CONNECTED
BY HIGH TEMPERATURE STAINLESS STEEL COUPLING AS SHOWN ON
PAGE 34, FOR ALL VPLUS170, 200 AND 225 HEATERS
“S70”
MODEL NUMBER BTU/HR
VPLUS150-S70 150,000
VPLUS170-S70* 169,000
VPLUS200-S70* 200,000
VPLUS225-S70* 222,500
71’6½” NOMINAL OVERALL ASSEMBLED LENGTH
