“VPLUS” SERIES INFRARED GAS HEATER
AMBIRAD

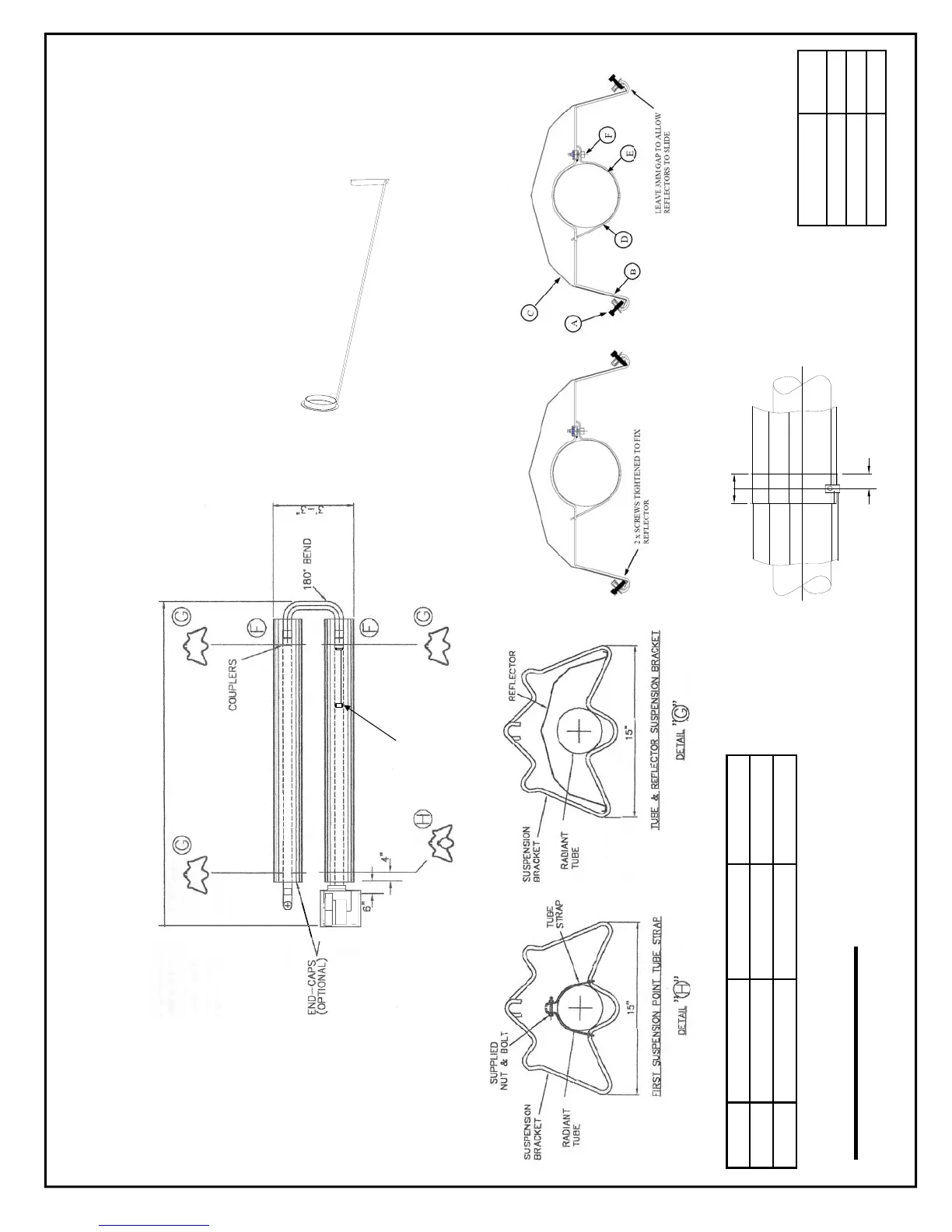

FIXED JOINT DETAIL SLIDING JOINT DETAIL
SERIES COMBUSTION TUBE REMAINING TUBES REFLECTORS
SC 4” ALUMINISED STL. 4” MILD STEEL ALUMINIUM
ER 4” ALUMINISED STL. 4” MILD STEEL STAINLESS STEEL
REFLECTOR OVERLAP
2" (50) MINIMUM
C
L
MODEL NUMBER BTU/HR
VPLUS40-U20 41,500
VPLUS80-U20 80,000
“U20”
BURNER INSERT DETAIL
NOTE: FOR VPLUS80 ONLY
BURNER INSERT
SEE DETAIL
12’1½” NOMINAL OVERALL ASSEMBLED LENGTH
