AmbiSonic Systems LS Kit 3 - 12 B. LS KIT 4 Wiring Diagram

31
L-300 L-300
S11BP-IG 4 X LS64 60’ RANGE
Only Engage LPF when using L-300
Amp only for Subwoofer [ not
on Speaker Amp ] for the LS Kit 4
L-300 Subwoofer Amp: Engage LPF
*
■381.00
■740.00
■615.00
坑纹方向
■740.00
■615.00
AS41SYS LSCAPE: Gift box
材質：
300G 白板+A9 高强+A9 高强+光胶
Scale: 1:1
Unit: mm
数量：
1SUB+4PCS SATS
AS4100SYS
844.674.4461
sales@originacoustics.com
www.originacoustics.com
AS4SAT
AS4SAT
AS4SAT
AS4SAT
AS41SUB10
DESIGNED IN OREGON, USA - MADE IN CHINA
AS41SYS - ACOUSTIC LANDSCAPE ™ SYSTEM
AS41SYS - ACOUSTIC LANDSCAPE ™ SYSTEM
PREMIUM OUTDOOR LOUDSPEAKER SYSTEM
ADD UP TO EIGHT SATELLITE SPEAKERS
WITH STANDARD 2-CHANNEL AMPLIFICATION (SOLD SEPARATELY)
WHAT’S INCLUDED:
4 x AS4SAT 4.5” SATELLITE LOUDSPEAKERS
1 x AS41SUB10 10” DUAL VOICECOIL SUBW0OFER
CREATE RICH HI-FI SOUND IN ANY OUTDOOR ENVIRONMENT
1,500 SQ FT OF HIGH QUALITY AUDIO COVERAGE |EXPANDABILITY UP TO 2,550 SQ FT*
* WITH 8 x AS4SATS | AS4SAT EXPANSION PAIR PACKS SOLD SEPARATELY
SIMPLE, FAST & FLEXIBLE INSTALLATION | EXPANDABILITY
WORKS WITH 2 CHANNELS ON AMBISONIC L300 AMPLIFIER
SOUND CAN BE DIRECTED INWARDS / ELIMINATING DISTURBANCES TO SURROUNDING NEIGHBORS
DUAL-USE PATIO OR BURIAL SUBWOOFER | CO-AXIAL TWO-WAY LOUDSPEAKERS
ALL MOUNTING HARDWARE INCLUDED | BURIAL SPEAKER WIRE SOLD SEPARATELY
EARTH COLOR CAMOUFLAGE ENCLOSURES FOR A HIDDEN SOUNDSCAPE WITHIN PLANTS & FOLIAGE
IPX6 RATED | ENGINEERED TO WITHSTAND ANY CONDITIONS FROM 4
º TO 176ºF (-15.5º TO 80ºC)
BACKED BY 5 YEAR FACTORY WARRANTY
FOUR AS4SAT 4.5” SATELLITE LOUDSPEAKERS
ONE AS41SUB1 10” DUAL VOICE COIL SUBW0OFER
AS41SUB10 FLEXIBLE INSTALLATION
BURIAL
OR
HARDSCAPE
1 x AS41SUB10 Subwoofer
(Included)
4 x AS4SAT Speakers
(Included)
Receiver
(Not Included)
4 x AS4SAT Speakers
(Sold Separately)
Description
Quantity
Dimensions
Woofer Cone
Tweeter
Enclosure
System Impedance
Frequency Response (System)
Crossover Frequency (System)
Power Handling
Output SPL
Dispersion
Listening Area
Wire Recommendations
4 1/2” Plantable Speakers w/ 11 3/4” In-Ground Mounting Stakes
4
5 3/4” W x 5 9/16” H x 7 1/16” W (146 x 142 x 180mm) |18“ H w/ Stakes (457mm)
4
1/2” Injection Molded Polypropylene
0.75” PEI Dome
Sealed Color-Molded Composite
10
” Dual Voice Coil Subwoofer with Sealed Enclosure for Low Bass Extension
1
12
7/8 ” H x 15 3/4 ” W (326 x 400mm)
10
” Dual Voice Coil Injection Molded Polypropylene
-
Sealed Poly Composite PVC Enclosure
4 - 8 Ω per Channel, Nominal
35Hz - 20kHz
(+/-3dB)
100Hz
120W (Program) / 240W (Peak)
87dB
70° up to 20’ Omnidirectional
Up to 1,500 Sq Ft (Up to 2,550 Sq Ft with 8 AS4SATs)
14 Gauge -- Up to 250 Feet (80 Meters) 2 Conductor,
Stranded, Direct Burial
12 Gauge -- Up to 400 Feet (122 Meters) 2 Conductor,
Stranded, Direct Burial
AS4SAT SATELLITE LOUDSPEAKER AS41SUB10 10” DUAL VOICE COIL SUBWOOFER
+ +
--
+ +
--
L300
L300
+ +
L300
L300 Subwoofer Amp:
Engage LPF
+ +
--
+ +
--
8Ω
8Ω
--
■381.00
■740.00
■615.00
坑纹方向
■740.00
■615.00
AS41SYS LSCAPE: Gift box
材質：
300G 白板+A9 高强+A9 高强+光胶
Scale: 1:1
Unit: mm
数量：
1SUB+4PCS SATS
AS4100SYS
844.674.4461
sales@originacoustics.com
www.originacoustics.com
AS4SAT
AS4SAT
AS4SAT
AS4SAT
AS41SUB10
DESIGNED IN OREGON, USA - MADE IN CHINA
AS41SYS - ACOUSTIC LANDSCAPE ™ SYSTEM
AS41SYS - ACOUSTIC LANDSCAPE ™ SYSTEM
PREMIUM OUTDOOR LOUDSPEAKER SYSTEM
ADD UP TO EIGHT SATELLITE SPEAKERS
WITH STANDARD 2-CHANNEL AMPLIFICATION (SOLD SEPARATELY)
WHAT’S INCLUDED:
4 x AS4SAT 4.5” SATELLITE LOUDSPEAKERS
1 x AS41SUB10 10” DUAL VOICECOIL SUBW0OFER
CREATE RICH HI-FI SOUND IN ANY OUTDOOR ENVIRONMENT
1,500 SQ FT OF HIGH QUALITY AUDIO COVERAGE |EXPANDABILITY UP TO 2,550 SQ FT*
* WITH 8 x AS4SATS | AS4SAT EXPANSION PAIR PACKS SOLD SEPARATELY
SIMPLE, FAST & FLEXIBLE INSTALLATION | EXPANDABILITY
WORKS WITH 2 CHANNELS ON AMBISONIC L300 AMPLIFIER
SOUND CAN BE DIRECTED INWARDS / ELIMINATING DISTURBANCES TO SURROUNDING NEIGHBORS
DUAL-USE PATIO OR BURIAL SUBWOOFER | CO-AXIAL TWO-WAY LOUDSPEAKERS
ALL MOUNTING HARDWARE INCLUDED | BURIAL SPEAKER WIRE SOLD SEPARATELY
EARTH COLOR CAMOUFLAGE ENCLOSURES FOR A HIDDEN SOUNDSCAPE WITHIN PLANTS & FOLIAGE
IPX6 RATED | ENGINEERED TO WITHSTAND ANY CONDITIONS FROM 4
º TO 176ºF (-15.5º TO 80ºC)
BACKED BY 5 YEAR FACTORY WARRANTY
FOUR AS4SAT 4.5” SATELLITE LOUDSPEAKERS
ONE AS41SUB1 10” DUAL VOICE COIL SUBW0OFER
AS41SUB10 FLEXIBLE INSTALLATION
BURIAL
OR
HARDSCAPE
1 x AS41SUB10 Subwoofer
(Included)
4 x AS4SAT Speakers
(Included)
Receiver
(Not Included)
4 x AS4SAT Speakers
(Sold Separately)
Description
Quantity
Dimensions
Woofer Cone
Tweeter
Enclosure
System Impedance
Frequency Response (System)
Crossover Frequency (System)
Power Handling
Output SPL
Dispersion
Listening Area
Wire Recommendations
4 1/2” Plantable Speakers w/ 11 3/4” In-Ground Mounting Stakes
4
5 3/4” W x 5 9/16” H x 7 1/16” W (146 x 142 x 180mm) |18“ H w/ Stakes (457mm)
4
1/2” Injection Molded Polypropylene
0.75” PEI Dome
Sealed Color-Molded Composite
10
” Dual Voice Coil Subwoofer with Sealed Enclosure for Low Bass Extension
1
12
7/8 ” H x 15 3/4 ” W (326 x 400mm)
10
” Dual Voice Coil Injection Molded Polypropylene
-
Sealed Poly Composite PVC Enclosure
4 - 8 Ω per Channel, Nominal
35Hz - 20kHz
(+/-3dB)
100Hz
120W (Program) / 240W (Peak)
87dB
70° up to 20’ Omnidirectional
Up to 1,500 Sq Ft (Up to 2,550 Sq Ft with 8 AS4SATs)
14 Gauge -- Up to 250 Feet (80 Meters) 2 Conductor,
Stranded, Direct Burial
12 Gauge -- Up to 400 Feet (122 Meters) 2 Conductor,
Stranded, Direct Burial
AS4SAT SATELLITE LOUDSPEAKER AS41SUB10 10” DUAL VOICE COIL SUBWOOFER
LEFT
CHANNEL
RIGHT
CHANNEL
LEFT
CHANNEL
RIGHT
CHANNEL
SPEAKER AMP
RIGHT CHANNELLEFT CHANNEL
*
SUBWOOFER AMP
* LPF Engaged

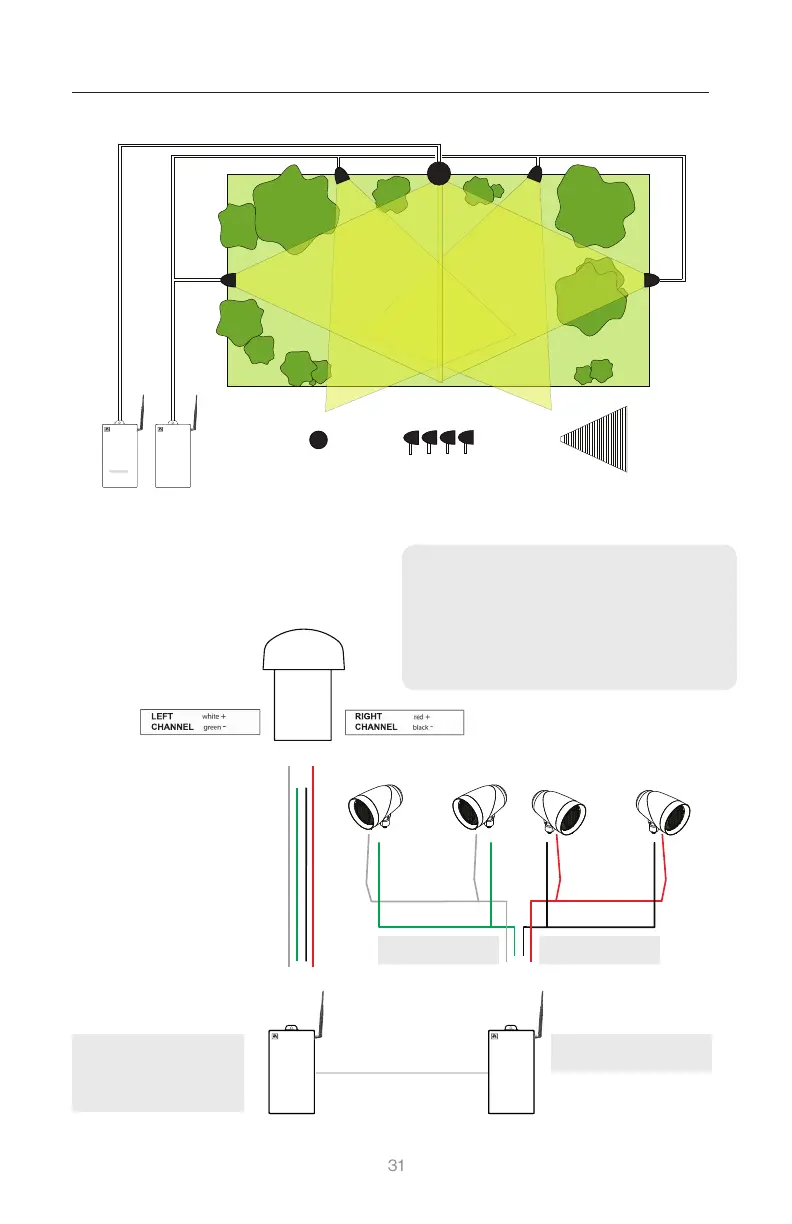

12b. LS KIT 4 WIRING DIAGRAM | Approx. 3,500+ SQFT COVERAGE
