AmbiSonic Systems LS Kit 3 - 11 B. Linking both Amplifiers for LS KIT 4

27
b. Linking Both Amplifiers for LS KIT 4
Use a 3-conductor wire to make a Phoenix-to-Phoenix Link cable to
connect two L-300 Amplifiers. Polarity is critical. L to L, R to R and Center
to Center is common. Phoenix connectors are included.
Note: The volume adjustment on the second amp will only go as high as
the volume on the first amp. You may want to line out of the subwoofer
amp to line in on the speaker amp. This will enable you to reduce power
to the speakers for perceived greater bass presence.

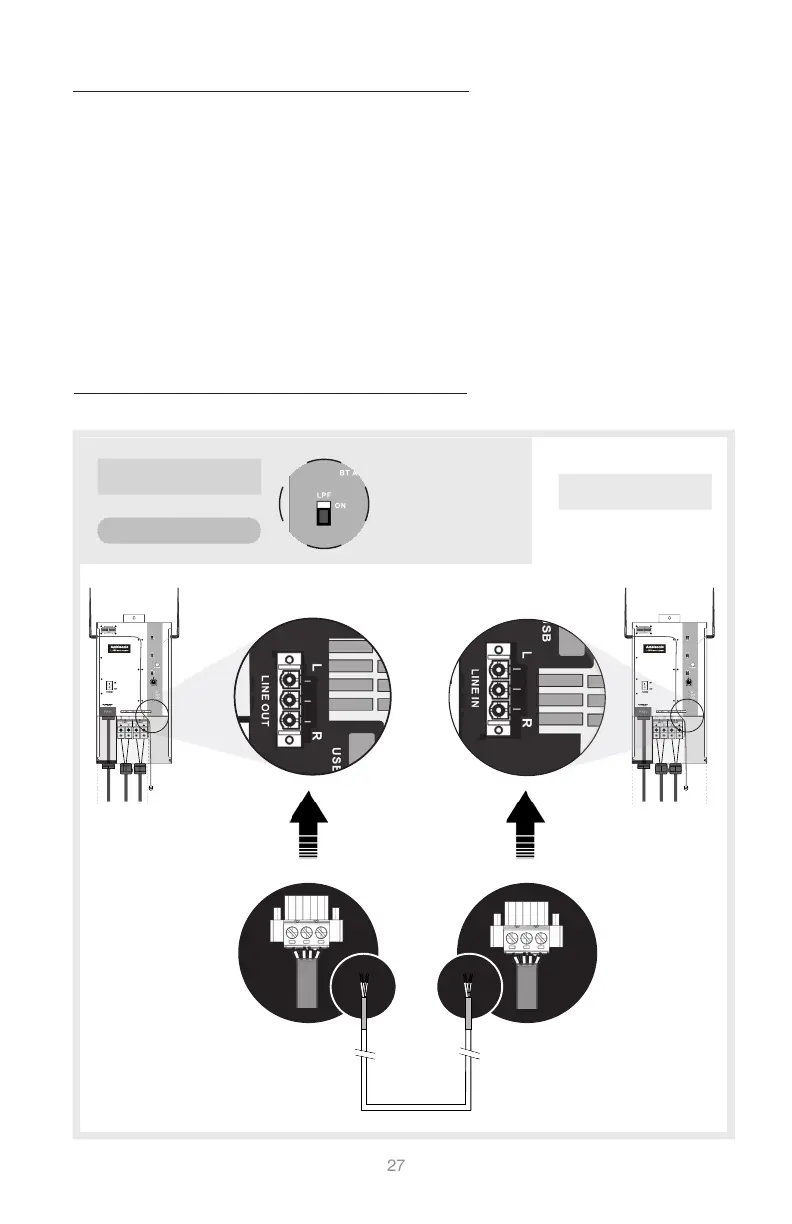

Phoenix-to-Phoenix link cable
DIAGRAM  • LSKIT 4 | Linking Amplifiers
LPF SWITCH:
ENGAGE ONLY
ON SUBWOOFER
AMP
LEFT RIGHT
-
+
-
+
GAIN
BRIDGE
(70V)
STEREO
LEFT RIGHT
-
+
-
+
GAIN
BRIDGE
(70V)
STEREO
LEFT RIGHT
-
+
-
+
GAIN
BRIDGE
(70V)
STEREO
Line INLine OUT
* LPF Engaged
SPEAKER AMP
SUBWOOFER AMP
*
*
