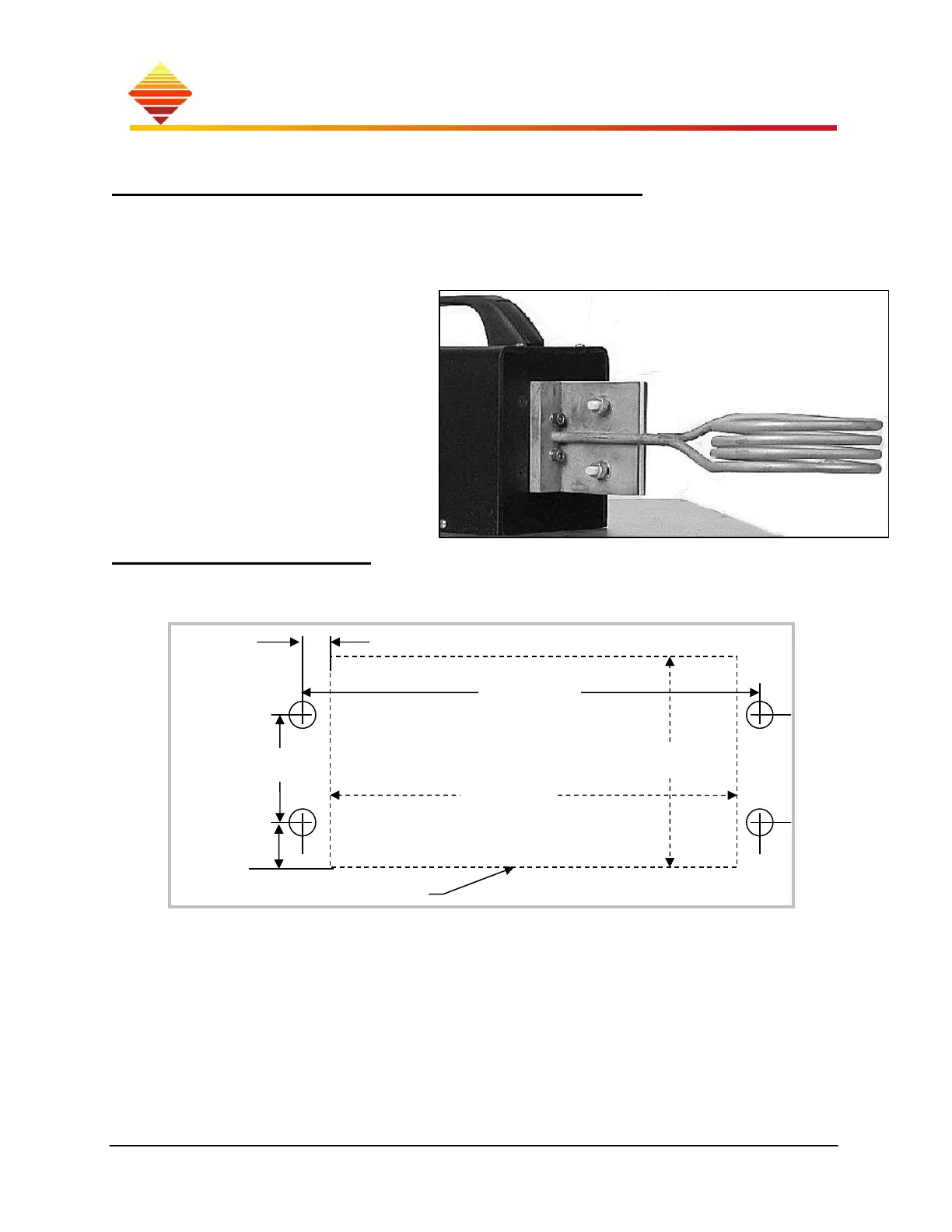

Work-coil or reference coil (included with the unit)
A reference coil is included with your work head to ensure basic operation; while it is
suitable for use in heating, another coil may have been ordered for your use.
If you are attaching your own coil:
use 4mm Allen key to remove
the 4 screws securing the
reference coil
remove reference coil and
retain 2 O-rings from coil
mounting plate
re-use or use new O-rings [PN
117-0021]; insert in recessed
face of work head
secure coil with 4 screws
provided; tighten
Rack/panel Mounting
Your EASYHEAT is mountable in your panel or 19” rack (4U); observe these steps and
requirements:
unscrew/remove 4 rubber feet on unit base
(panel) provide cutout and mounting pattern per above; plan for M5 or M6 screws
ensure that rear of unit is supported when mounted
provide at least 736mm (29”) depth to permit water and AC power cable bend
secure unit with M5 or M6 hardware
2.375 (60.3)
18.3 (465)
2.25 (57)
17.5 (445)
7.1 (180)
Not to scale; inch (mm) panel cutout
0.5 (12)
1.437 (36.5)
4.00 (102)
6.89 (175)
0.40 (10)
