Ambu aView User Manual

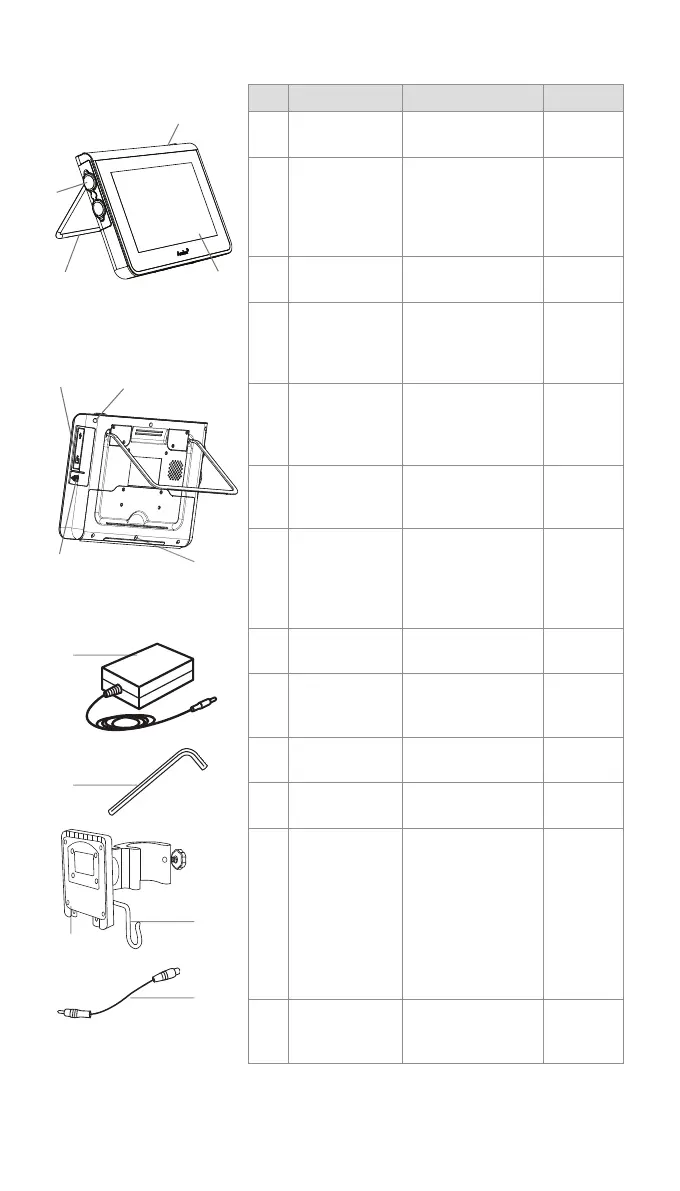

2.3. aView Parts
No. Part Function Material
1 Monitor Casing - PC/ABS
Rubber
2 Touch Screen Displays the image
from the Ambu
visualization device
and a touch screen
interface.
PET/Glass
3 Stand To place the display
on a solid surface.
ZDC3
4 Connection
for Ambu®
visualization
devices
Power supply and
data connection
Protected by a
rubber cover.
PC/ABS
Rubber
5 Power Power inlet for
charging aView.
Protected by a
rubber cover.
Rubber
6 Input/output
connections
JACK connector
(video-out) and
USB port.
-
7 Power button Push button for
power ON before
procedure and
power OFF after
procedure.
Rubber
8 Docking
connector
For future use. -
9 Power supply Powers the system
Power cord with
country-specific plug.
PC
PVC
10 Hexagonal key To tighten the bolt
on the bracket.
CrV
11 Bracket Secures the monitor
to e.g. an IV pole.
POM
12 Pouch hook Slide the hook
through the 3 holes
on the bracket. It can
now be used to hold
visualization device
pouches with a hole
in top corner for easy
storage before and
during use.
PAA
13 Adapter cable For the composite
video-out interface
(see no. 6).
PE/PVC
Abbreviations: PC (Polycarbonate), PE (Polyethylene), ABS (Acrylonitrile Butadiene Styrene),
ZDC3 (Zinc alloy), PVC (Polyvinylchloride), POM (Polyoxymethylene), PAA (Polyarylamide),
CrV (Chrome Vanadium)
13
10
9
12
11
8
76
5
4
1
3 2
6

Ambu aView Specifications

General

Display Type	LCD
Operating System	Android
Battery Type	Rechargeable lithium-ion
Battery Life	Up to 4 hours
Connectivity	Wi-Fi, Bluetooth
Weight	Approx. 1.2 kg
Storage Temperature	-20°C to 60°C
Operating Temperature	0° to 40°C (32° to 104°F)
Water Resistance	IPX4 (Splash-proof)
Camera	N/A (relies on connected endoscope)
