AMC 2445 User Manual

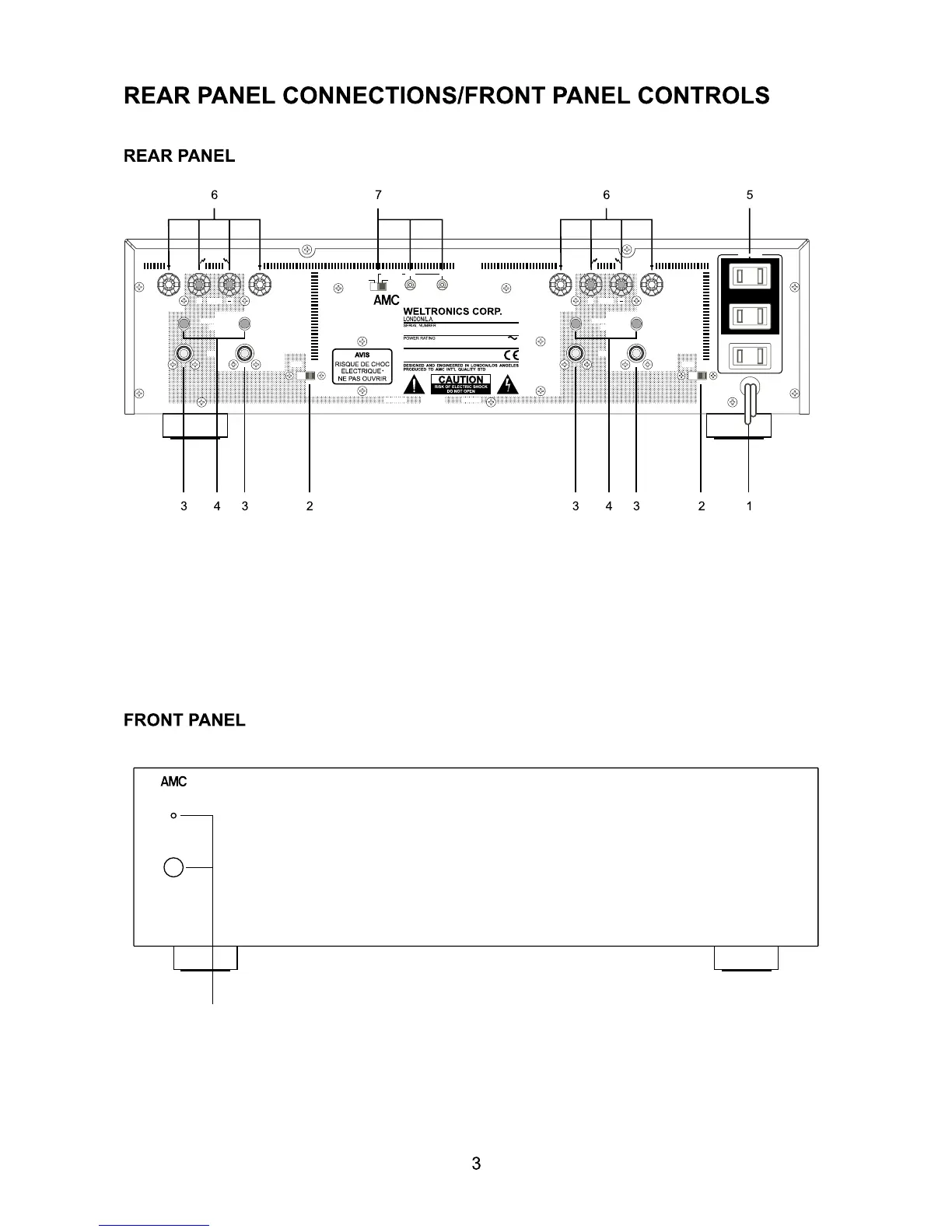

1. AC LINE CORD
2. 2CH/4CH "MODE" SWITCHES
3. INPUTS
4. INPUT LEVEL CONTROLS
5. CONVENIENCE AC OUTLETS
6. LOUDSPEAKER TERMINALS
7. AUDIO SENSE/ TRIGGER/
CONSTANT SWITCH
1. POWER SWITCH AND POWER
INDICATOR
1
H.O.M.E. AUTOMATION SERIES
2445a2/4 Channel Power Amplifier
POWER
TOTAL 2A MAX 240W
UNSWITCHED 2A MAX 240W
SWITCHED
120V 60Hz
120V 60Hz 3A
2/4 Channel Power Amplifier 2445a
++
+
+
+
CH 1
CH 3
CH 2 CH 4
LEFT
SPEAKER
SPEAKER
SPEAKER
SPEAKER
INPUT LEVEL
ADJ.
INPUT
AUDIO SENSE
OUT
12V
DC
3-30V
AC/DC
TRIGGER
CONS-
TANT
IN
2CH
+
RIGHT
INPUT LEVEL
ADJ.
INPUT
2CH
4CH
RIGHTCH LEFTCH
4CH
4CH
2CH
