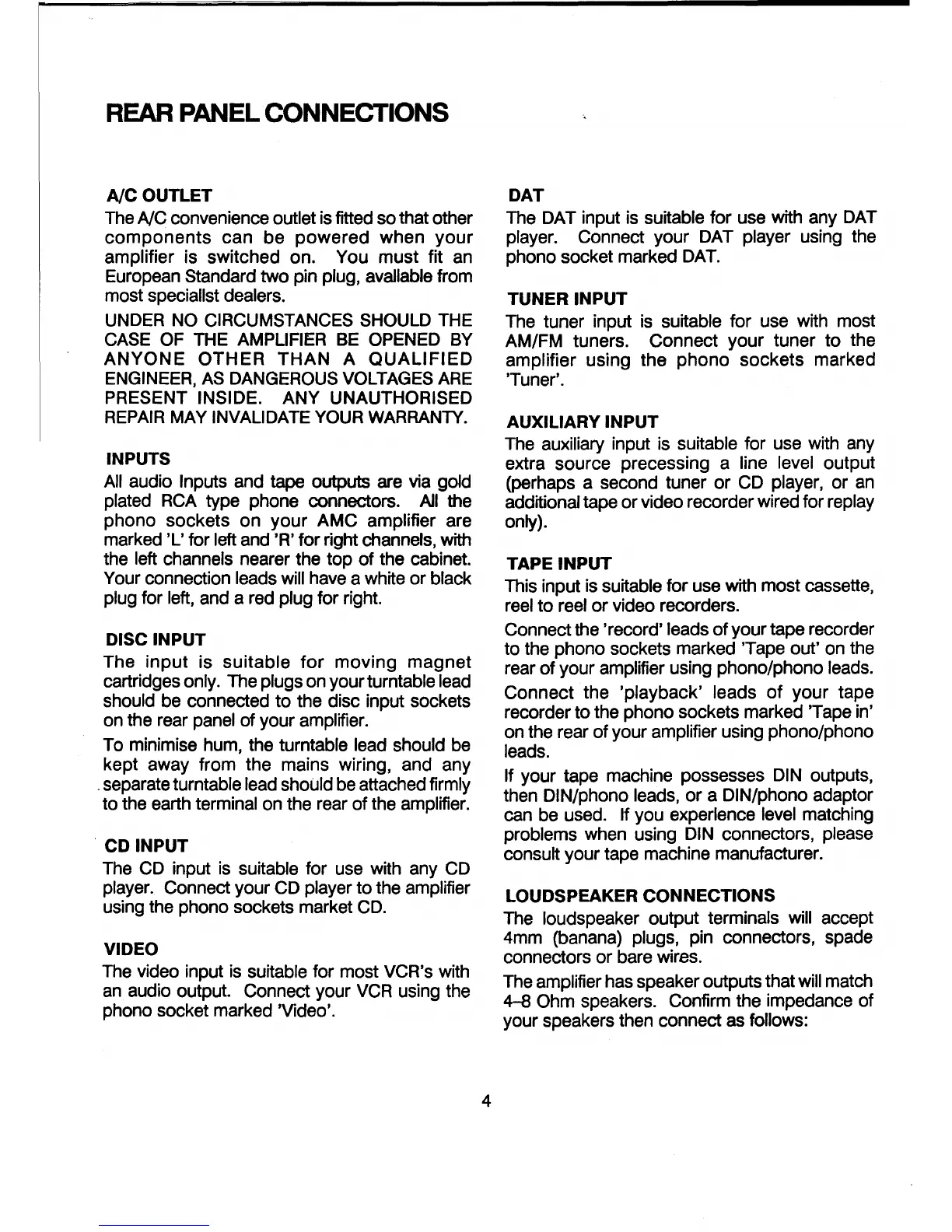

REAR PANEL CONNECTIONS
A/COUTLET
The AlC convenience outlet is fitted so that other
components can be powered when your
amplifier is switched on. You must fit an
European Standard two pin plug, avallable from
most speciallst dealers.
UNDER NO CIRCUMSTANCES SHOULD THE
CASE OF THE AMPLIFIER BE OPENED BY
ANYONE OTHER THAN A QUALIFIED
ENGINEER, AS DANGEROUS VOLTAGES ARE
PRESENT INSIDE. ANY UNAUTHORISED
REPAIR MAY INVALIDATE YOUR WARRANTY.
INPUTS
All audio Inputs and tape outputs are via gold
plated RCA type phone connectors. All the
phono sockets on your AMC amplifier are
marked 'L' for lett and 'R' for right channels, with
the left channels nearer the top of the cabinet.
Your connection
leads will have a white er black
plug for left, and a red plug for right.
DISC INPUT
The input is suitable for moving magnet
cartridges only. The plugs on yourturntable lead
should be connected to the disc input sockets
on the rear panel cf your amplifier.
To minimise hum, the turntable
lead should be
kept away from the mains wiring, and any
. separate turntable lead should be attached firmly
to the earth terminal on the rear of the amplifier.
. CD INPUT
The CD input is suitable for use with any CD
player. Connect your CD player to the amplifier
using the phono sockets market CD.
VIDEO
The video input is suitable for most VCR's with
an audio output. Connect your VCR using the
phono socket marked 'Video'.
4
DAT
The DAT input is suitable for use with any DAT
player. Connect your DAT player using the
phono socket marked DAT.
TUNER INPUT
The tuner input is suitable for use with most
AM/FM tuners. Connect your tuner to the
amplifier using the phono sockets marked
'Tuner'.
AUXILIARY INPUT
The auxiliary input is suitable for use with any
extra source precessing a
line level output
(perhaps a second tuner
or CD player, or an
additional tape or video recorder wired for replay
only).
TAPE INPUT
This input is suitable for use with most cassette,
reel to reel or video recorders.
Connect the 'record'
leads of your tape recorder
to the phono sockets marked 'Tape out' on the
rear of your amplifier using phono/phono
leads.
Connect the 'playback' leads of your tape
recorder to the phono sockets marked 'Tape in'
on the rear of your amplifier using phono/phono
leads.
If
your tape machine possesses DIN outputs,
then
DIN/phono leads, or a DIN/phono adaptor
can be used. If you experlence level matehing
problems when using
DIN connectors, please
consult your tape machine manufacturer.
LOUDSPEAKER CONNECTIONS
The loudspeaker output terminals will accept
4mm (banana) plugs, pin connectors, spade
connectors or bare wires.
The amplifier has speaker outputs that will match
4-8 Ohm speakers. Confirm the impedance of
your speakers then connect as folIows:
