Amco Veba 807N - Dimensioni Dingombro; Overall Dimensions

D-4

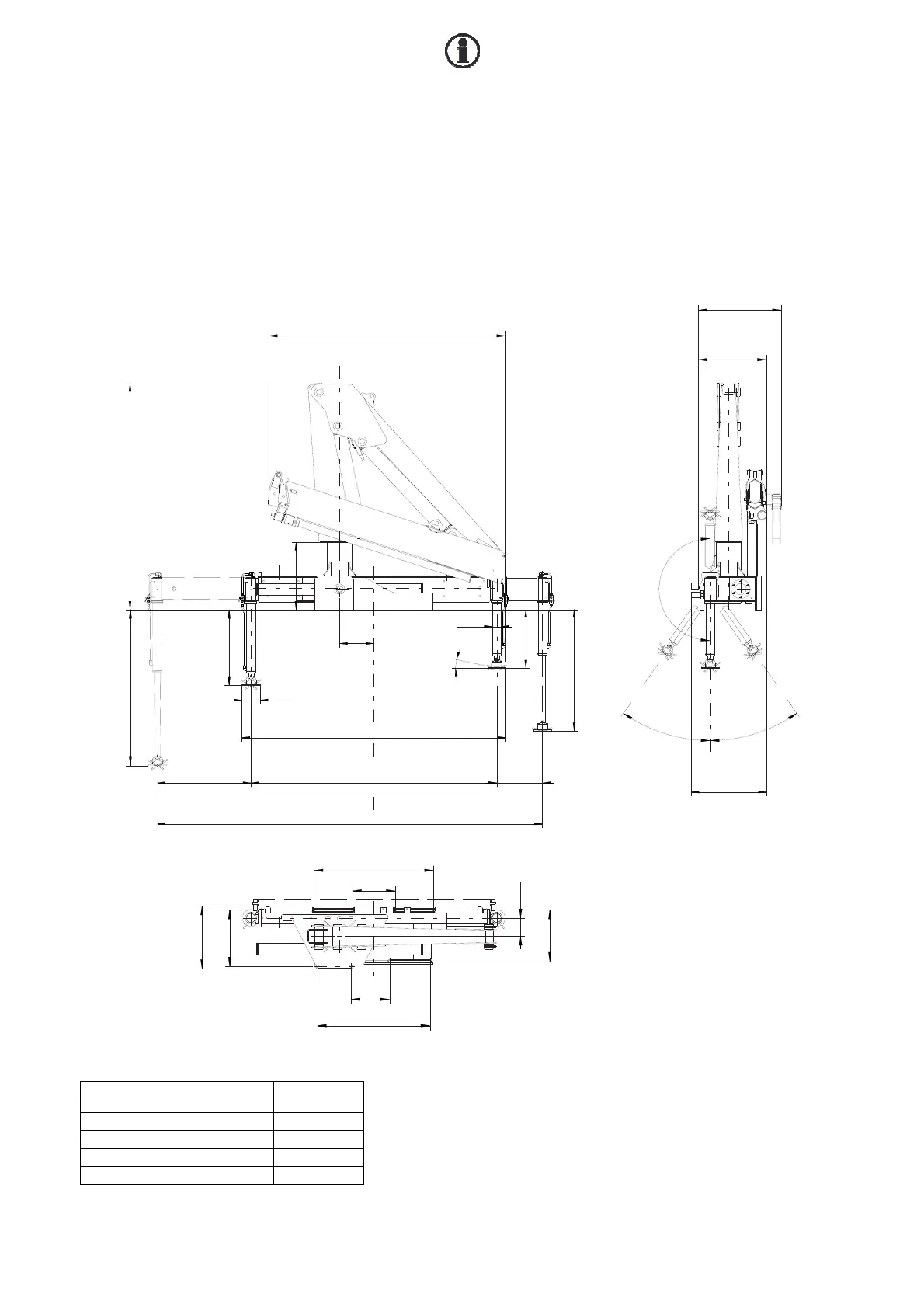

D.1.4 DIMENSIONI
D’INGOMBRO
D.1.4 OVERALL
DIMENSIONS
807N - 907N
NO JIB
STD-EX FIXED STABILIZERS
D.1.4 GESAMT-
ABMESSUNGEN
300
ø160
2150
= =
820 STD
1385 EX
400 STD
1065 EX
3370 STD
4600 EX
Ø 80
12°
2310
= =
1980
586
35°
OPTIONAL
35°
OPTIONAL
180°
OPTIONAL
160
450
492
550
376
1046
983
342
510
1060
666 (OPT)
1366 (OPT)
600
730
OPTIONAL
A
660
AA HYD
VERSIONE - VERSION
A
[mm]
1S 2080
2S 2155
3S 2275
4S 2300
