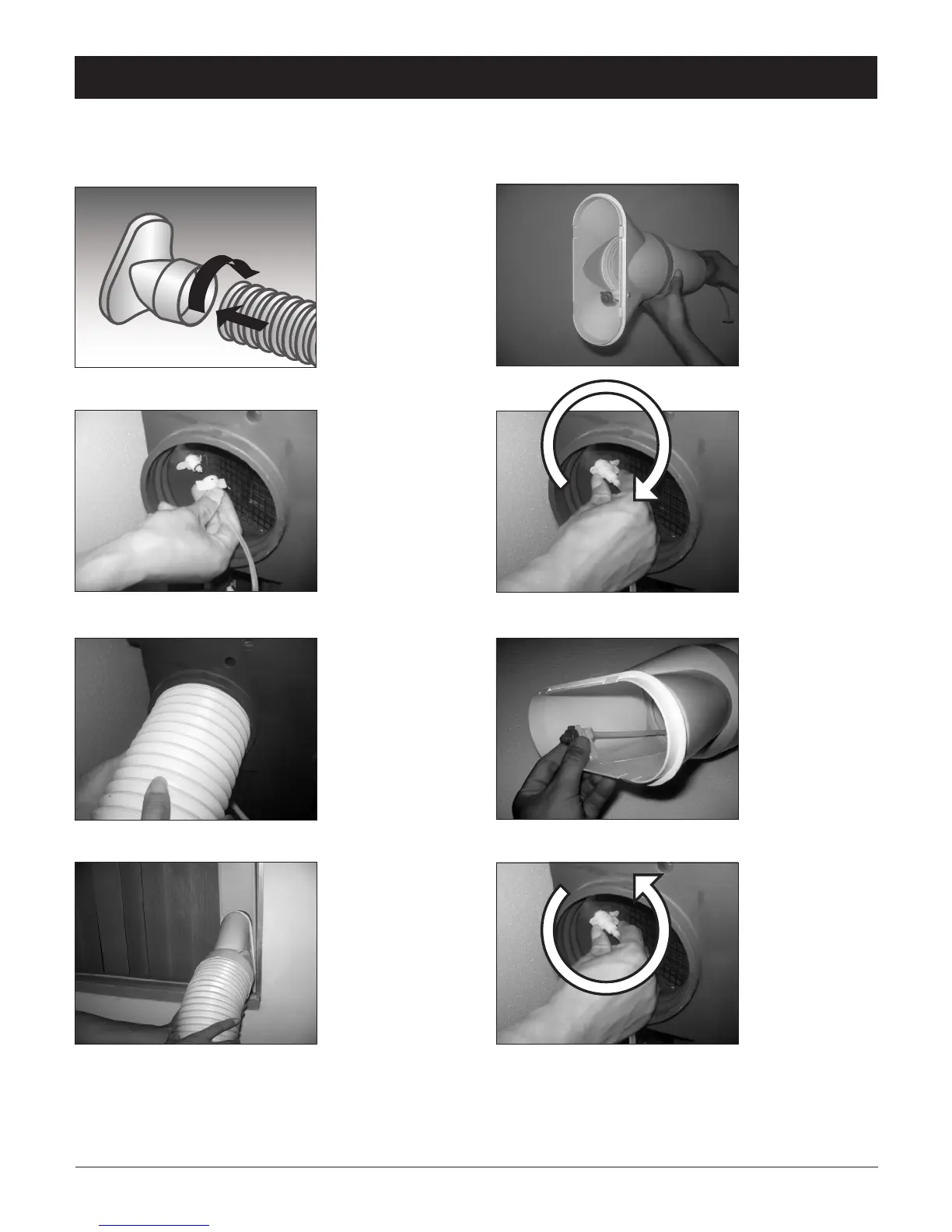

Amcor PCMB-12000E - AutoDrain NanoMist Technology Assembly

6
Put spiral water
pipe into hot air
flexible hose.
Connect the
female half of the
quick connector
at the end of the
spiral water pipe
to the male part
in the hot air
outlet pipe.
Turn the
connector
90 degrees
clockwise until it
is locked in place.
Assemble the
hot air hose on
the unit.
Clip on the
water atomizer
at the end of
the spiral pipe
to the holder.
Unfold flexible
hose with attached
hose adapter
connector, and
snap into
Window Slide Bar.
Only
Required For
Disassembly.
In order to
unlock the quick
connector, push
the tab and turn
the connector
90 degrees
counter-
clockwise.
AutoDrain NanoMist Technology
TM
Assembly
2
3
6
8
4
5
7
1
Attach Window
Slide Bar
Connector to
Exhaust Hose by
twisting as shown.
