AssemblyInstallation of the Window Kit
In order for this unit to function properly, it must be vented to the outside.
Fitting the Exhaust Hose through a window is easy. Please see below.
Adjustable
Slide Bar
Exhaust
Hose
Slide Bar
Connector

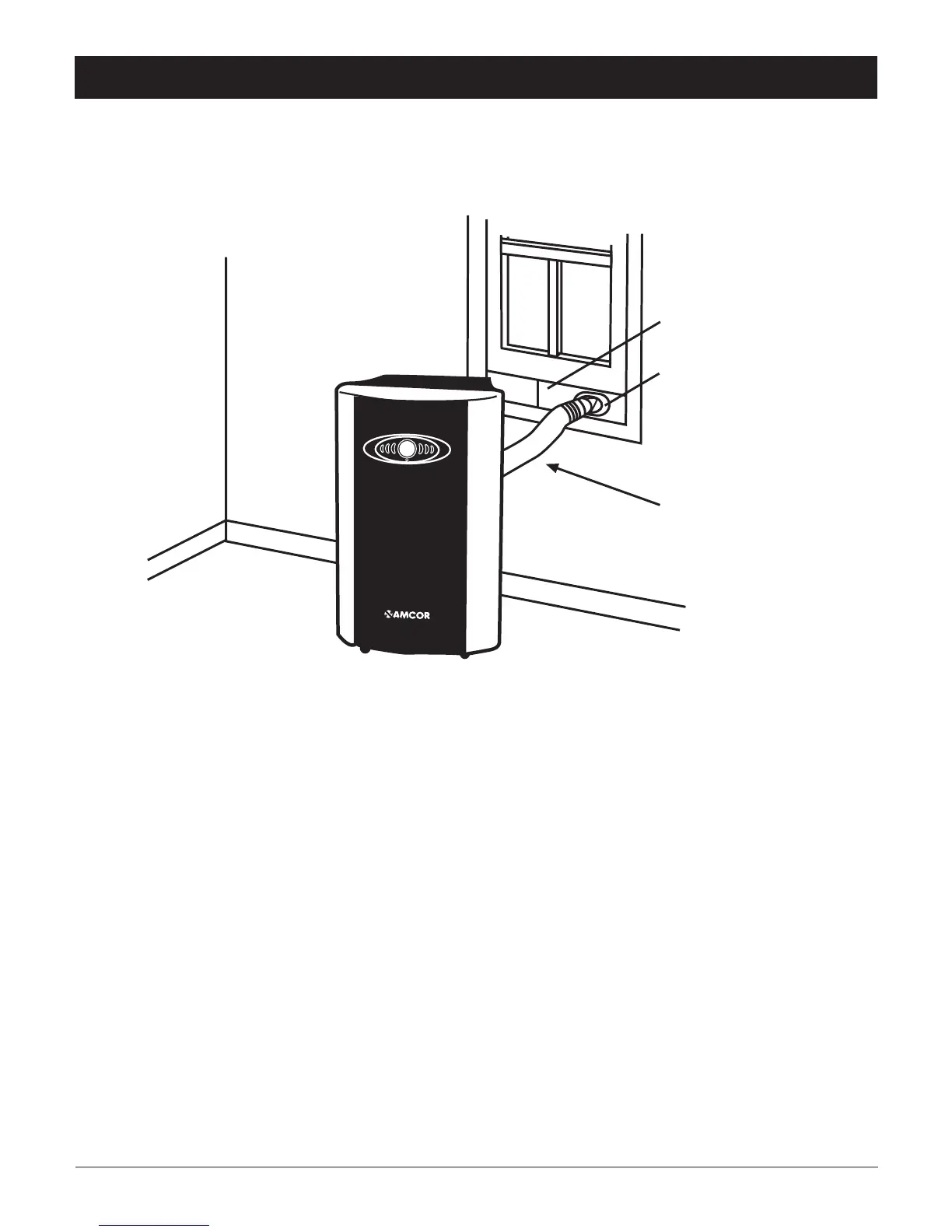

Window Kit Installation:
1. Extend Exhaust Hose at least 6" and insert it into back of the unit, tightening
into place by turning it clockwise.
2. Attach Slide Bar Connector to the other end of the Hose by extending hose at
least 6". Then tighten Hose by turning the Slide Bar Connector clockwise.
3. Place Adjustable Slide Bar in the window and expand so it fits tightly.
4. Mark Slide Bar to record width of the window.
5. Apply Insulation Strips on top and bottom of Slide Bar.
6. Reposition Slide Bar Connector in the window. Expand the Slide Bar to fit tight.
Tighten the screws.
7. Lower the window.
8. Make sure Hose has no kinks.
Slide Bar has 3 sections which allows installation in windows up
to 48" in width.
