GENERAL MAINTENANCE
Mechanical Systems
Motors – Wiring
WARNING: AMCOT RECOMMENDS THAT ALL MOTORS BE CONNECTED BY A LICENSED ELECTRICIAN TO
ENSURE PROPER CONNECTION IS MADE TO PREVENT DAMAGE TO THE MOTOR ITSELF AND POSSIBLE
INJURY TO THE INSTALLER.
WARNING: DO NOT ATTEMPT TO CONNECT THE MOTOR TO LIVE WIRES. SERIOUS INJURY OR DEATH
CAN OCCUR. POWER SHOULD BE TURNED OFF AT THE BREAKER BOX AND ELECTRICAL WIRING
SHOULD BE TESTED PRIOR TO INSTALLING TO ENSURE THERE IS NO LIVE WIRES.
When connecting multi-voltage motors to your power supply, it is important to follow the wiring
diagram located inside the junction box on the motor. This diagram is a metal sticker attached to the
inside of the junction box cover and is visible when the cover is removed. DO NOT REMOVE THE LABEL.

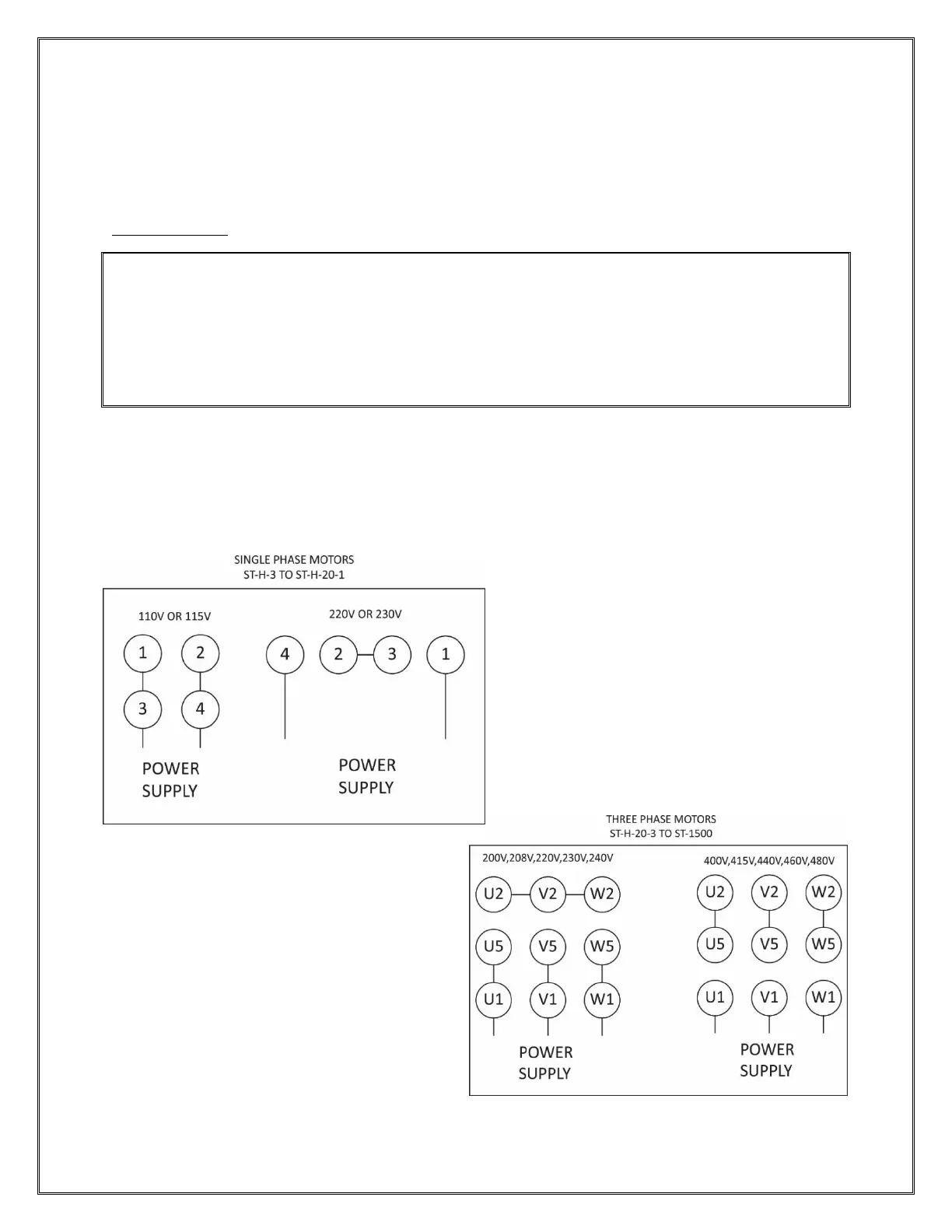

GENERAL MOTOR WIRING DIAGRAMS
(ALWAYS FOLLOW DIAGRAM LOCATED ON THE INSIDE OF THE JUNCTION BOX COVER!)
