2-2 Install Memory
MA3-740GSM motherboard series provide two 240-pin DDRIII DUAL INLINE
MEMORY MODULES (DIMM) socket for DDRIII memory expansion to maximum
memory volume of 8 GB.
Valid Memory Configurations for MA3-740GSM
Bank 240-Pin DIMM PCS Maximum Capacity
DDRIII1 DDRIII800/DDRIII1066/DDRIII1333/DDRIII1600 X1 4GB
DDRIII2 DDRIII800/DDRIII1066/DDRIII1333/DDRIII1600 X1 4GB
Total System Memory (Max .4GB) 2 8GB
MA3-740GSMD2 and MA3-760GSMD2G motherboard series provide two 240-pin
DDRII DUAL INLINE MEMORY MODULES (DIMM) socket for DDRII memory
expansion to maximum memory volume of 8 GB.
Valid Memory Configurations for Model MA3-740GSMD2 and MA3-760GDMD2G
Bank 240-Pin DIMM PCS Maximum Capacity
DIMM1 DDRII 400/DDRII 533/DDRII 667/ DDRII 800 X1 4GB
DIMM2 DDRII 400/DDRII 533/DDRII 667/ DDRII 800 X1 4GB
Total System Memory (Max .4GB) 2 8GB
Dual channel Limited!
1. Dual channel function only supports when 2 DDRIII Modules plug in either both DDRIII1
& DDRIII2 for MA3-740GSM; or 2 DDRII Modules plug in either both DDRII1 & DDRII2
for MA3-740GSMD2 or MA3-760GSMD2G.
2. Memory modules must be of the same type, same size, and same frequency for dual
channel function.

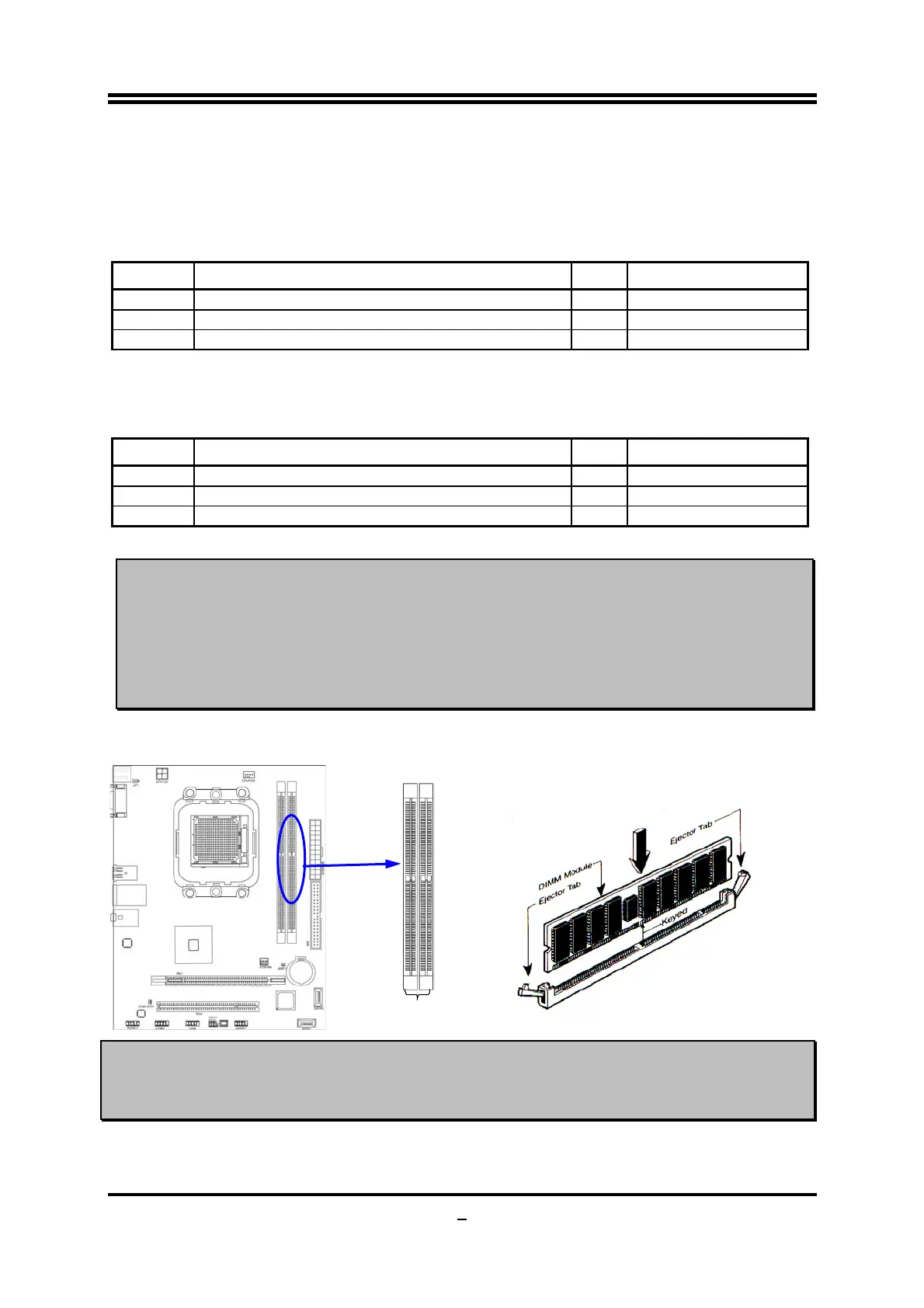

Install memory modules to your motherboard are not difficult, you can refer to figure
below.
Dual Channel
NOTE!
When you install DIMM module fully into the DIMM socket the eject tab
should be locked into the DIMM module very firmly and fit into its indention on both
sides.
