HDMI_SPDIF Header

GND

HDMI_SPDIF_OUT

3-3 Jumper Setting

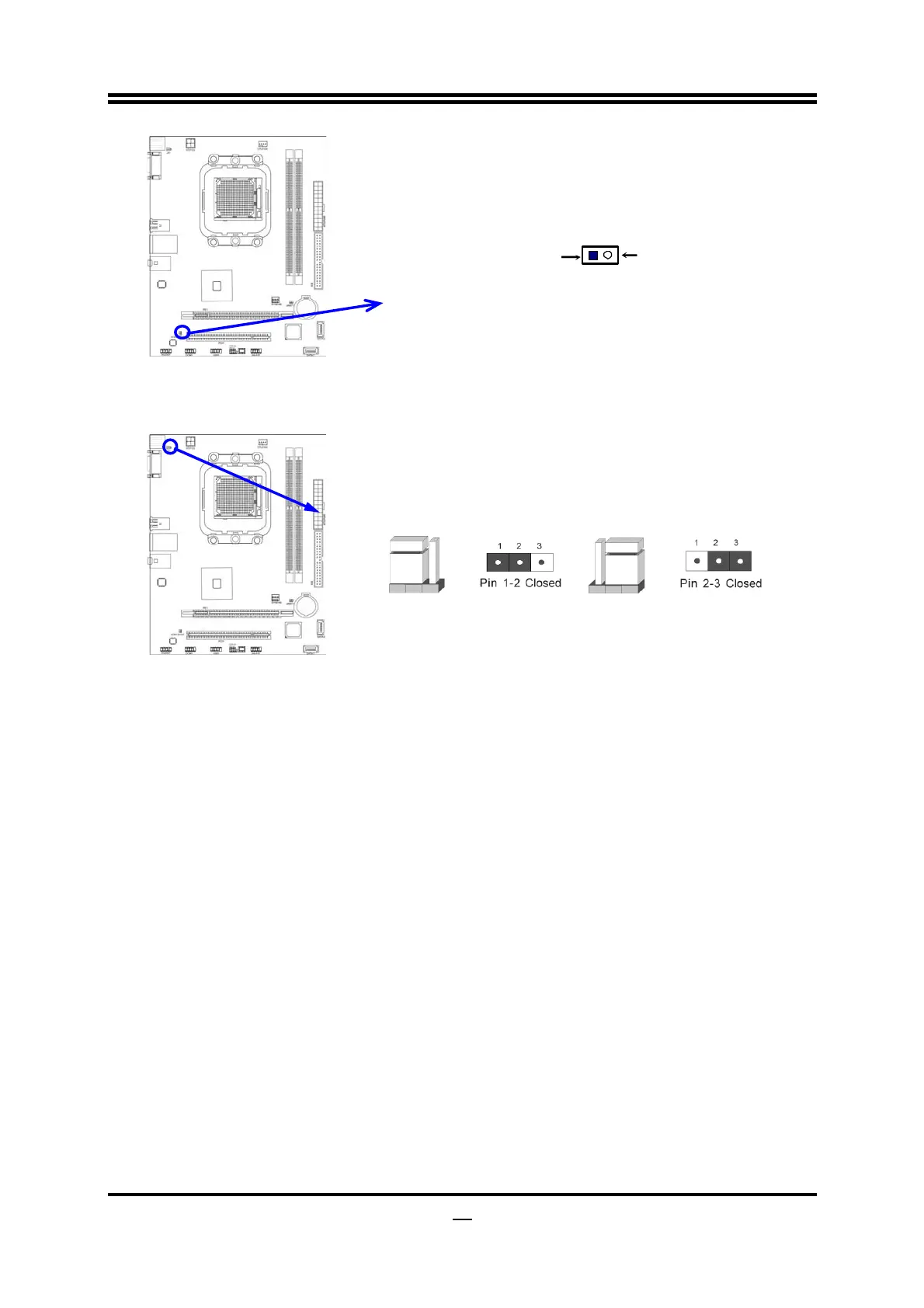

(1) Keyboard/USB function Enabled/Disabled: JP1

board/Mouse & USB Power On Settin

2-3 Closed KB/USB Power ON Enabled

JP1

1-2 Closed KB/USB Power ON Disable (Default)

(2) CMOS RAM Clear (2-pin): JBAT1

A battery must be used to retain the motherboard configuration in CMOS RAM,

short 1-2 pins of JBAT to clear the CMOS data.

To clear the CMOS, follow the procedure below:

1. Turn off the system and unplug the AC power

2. Remove ATX power cable from ATX power connector

3. Locate JBAT and short pins 1-2 for a few seconds, if shorted with the jump cap,

short for a few seconds then pull out the hat.

4. Connect ATX power cable back to ATX power connector

Note: When should clear CMOS

1. Troubleshooting

2. Forget password

3. After over clocking system boot fail
