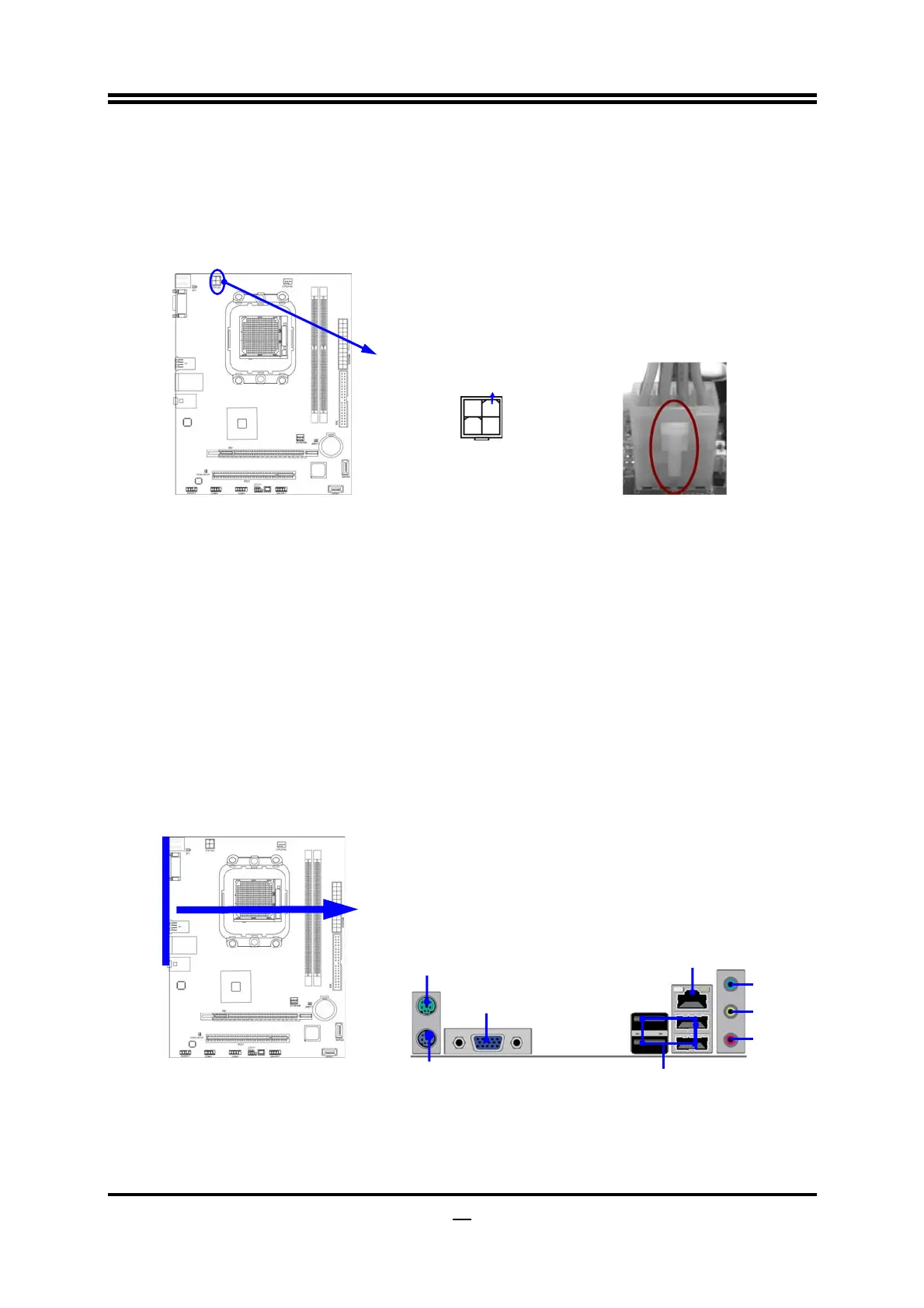

(2) ATX 12V Power Connector (4-pin block): ATX12V
This is a new defined 4-pins connector that usually comes with ATX Power
Supply. The ATX Power Supply which fully supports AMD AM3 processor must
including this connector for support extra 12V voltage to maintain system power
consumption. Without this connector might cause system unstable because the
power supply can not provide sufficient current for system.
ATX12V
+12V
+12V
Pin1
3
2
4
GND
GND
(3) PS/2 Mouse & PS/2 Keyboard Connector: KB
The connectors are for PS/2 keyboard and PS/2 Mouse.
(4) USB Port connector: CN5/ UL1 for USB
The connectors are 4-pin connector that connects USB devices to the system
board.
(5) LAN Port connector: UL1 for RJ-45 LAN
The connector is standard RJ45 connector for Network. It supports 10M/100Mb
data transfer rate.
(
6)
Audio Line-In, Line-Out, MIC Connector: CN3
These Connectors are 3 Phone-Jack for LINE-OUT, LINE-IN, and MIC audio
connections.
Line-in: (BLUE)
Audio input to sound chip
Line-out: (GREEN)
Audio output to speaker
MIC: (PINK)
Microphone Connector
USB Connector
PS/2 Keyboard
Line-OUT
MIC-IN
VGA Connector
Line-IN
RJ-45 LAN
PS/2 Mouse
