Step 35. Install the Keyboard and Mouse Cables
Check the connectors on the keyboard and mouse to see if they are round or
rectangular. Photo 47 shows the location of the round mini-DIN connectors on the back
of the system. The round connector on the right has a mouse icon. The round
connector on the left shows a keyboard icon. These connectors are keyed and can only
be inserted one way.
Below the round mini-DIN connectors are two USB ports. If your input devices are
USB devices (USB devices have smaller rectangular connectors), they are plugged
into the USB ports. With USB devices, you can either daisy-chain them—plug one into
the other—or they can go into separate connectors. Please check your
keyboard/mouse manual for detailed instructions.

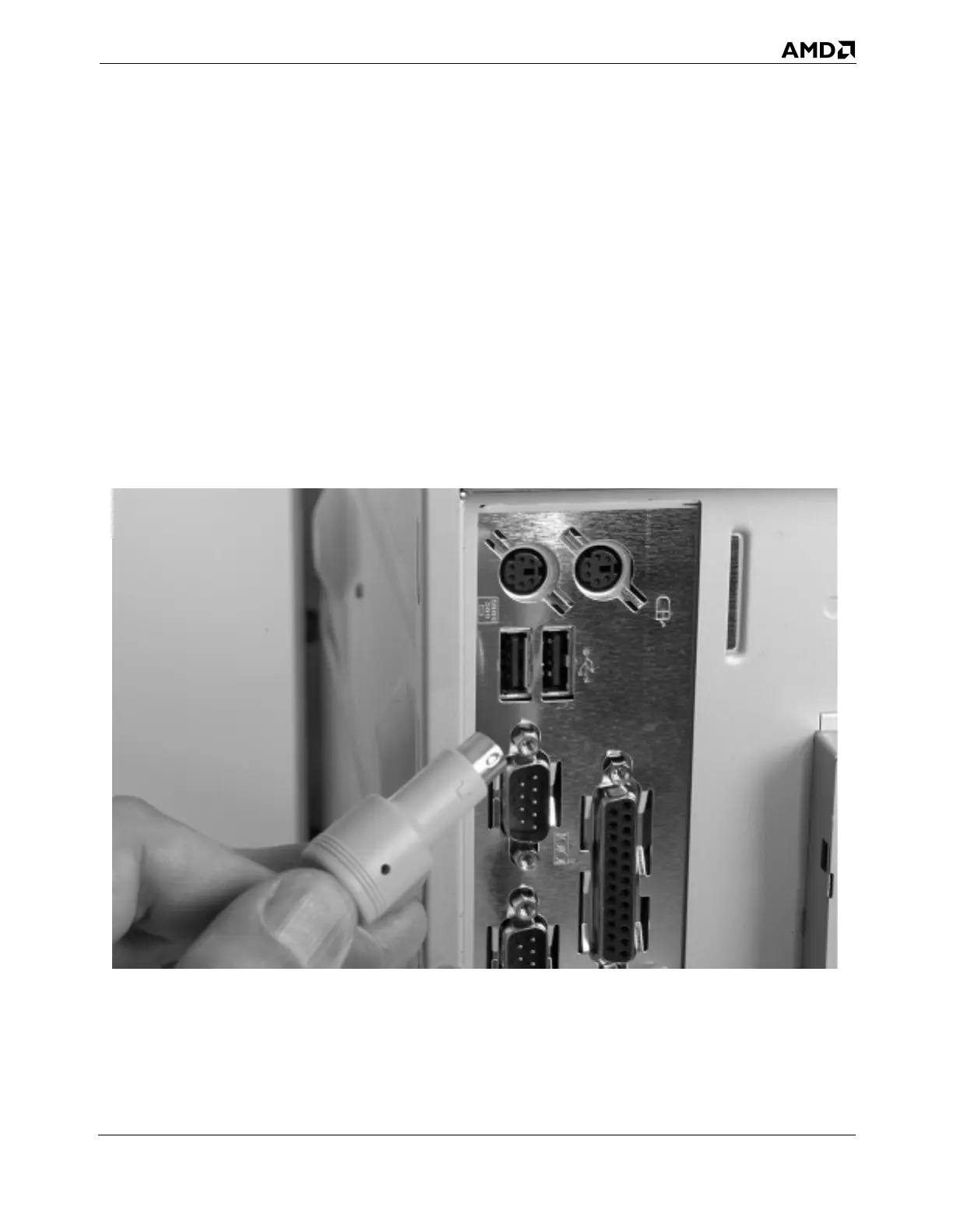

Photo 47. Keyboard and Mouse Cable Connectors
