AMD R7 250 User Manual

Caution:
Static electricity can seriously damage computer components. Discharge
your body's static electricity by touching the power supply or the metal
surface of the computer chassis before you touch any components inside the
computer's case to avoid damaging them.
4. Unscrew or unfasten and remove any existing graphics card from the computer,
if necessary.
5. Locate the appropriate bus slot and, if necessary, remove the corresponding
metal backplate cover(s). Make sure all internal cables are clear of the slot.
Note: If you cannot find a bus slot to match the card, you need a graphics card
with the correct bus to match the motherboard.
6. Align the graphics card with the slot and press it in firmly until the card is fully
seated.
7. If your card requires supplementary power and must be connected directly to
the power supply, locate the appropriate power connector cable(s) from the
power supply and connect it (or them) to the graphics card's supplementary
power connector(s).
Note: If applicable, before installing a card that requires a supplementary
power connection, make sure your existing power supply has such a
connection available.
Tip: The location of power connections may vary between models. They can
be located on either the side or back of the card.

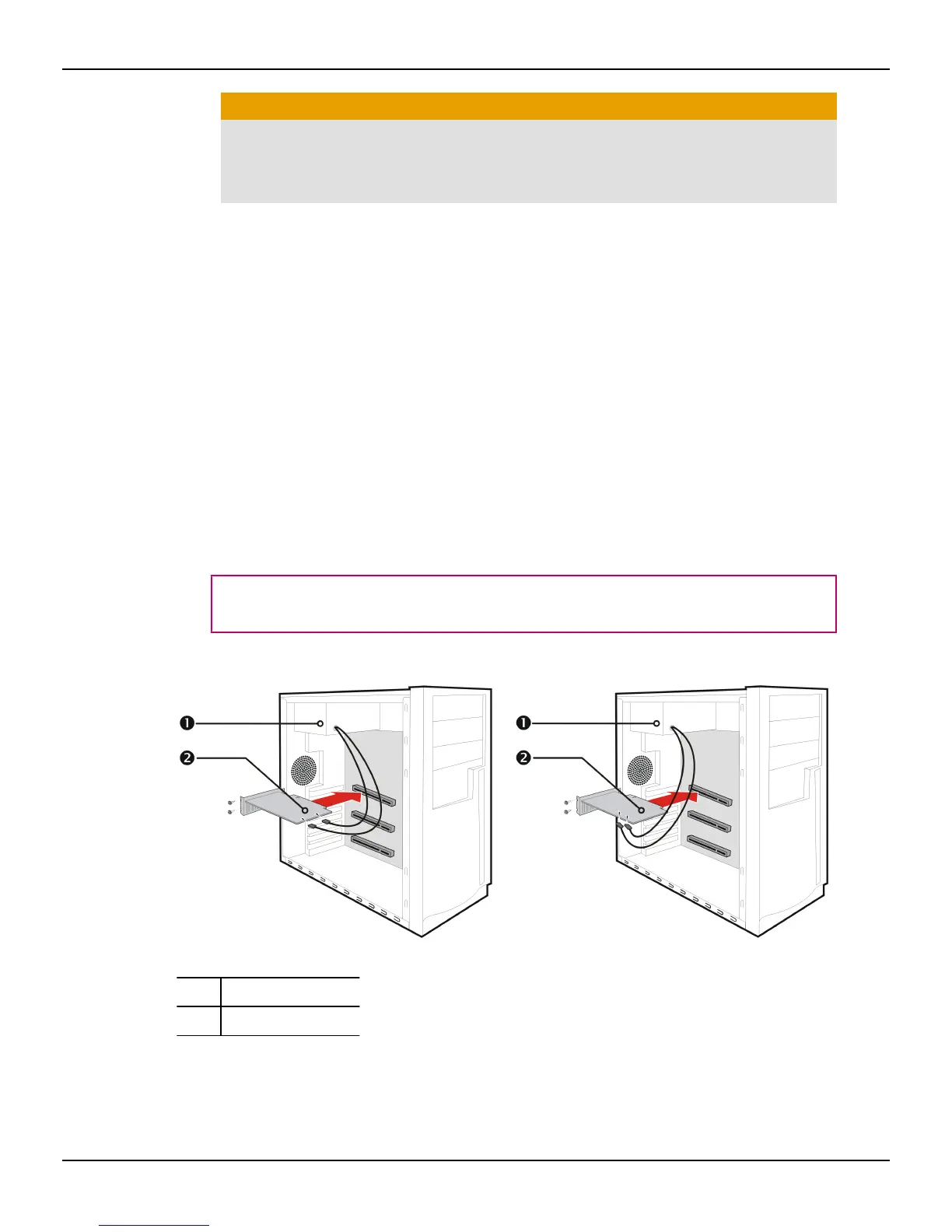

Figure 2–1 Possible Power Connection Locations on the Graphics Card
1 Power supply
2 Graphics card
8. Fasten the graphics card securely to the back panel.
9. Make sure no internal cables are interfering with components inside the
computer (for example, a cooling fan), and then replace the computer cover.
4 Hardware and Software Installation
AMD Radeon™ R7 240/R7 250 Graphics © 2014 Advanced Micro Devices, Inc.

AMD R7 250 Specifications

General

GPU Architecture	GCN 1.0
GPU Codename	Oland
Process Size	28 nm
Shader Units	384
Shader Model	5.0
Power Consumption	65W
Outputs	DVI, HDMI, DisplayPort
Max. Resolution	4096x2160
Memory Size	1 GB / 2 GB
Memory Type	GDDR5
Memory Bus	128 bit
