Chapter 4
Display Configuration
This section describes how to configure the display and lists the available display
connections.
AMD Radeon HD 6950/6970 Connections
The following figure shows the display connections available on your AMD Radeon
HD 6950/6970 graphics card.
Note: The baseplate may not appear exactly as depicted.

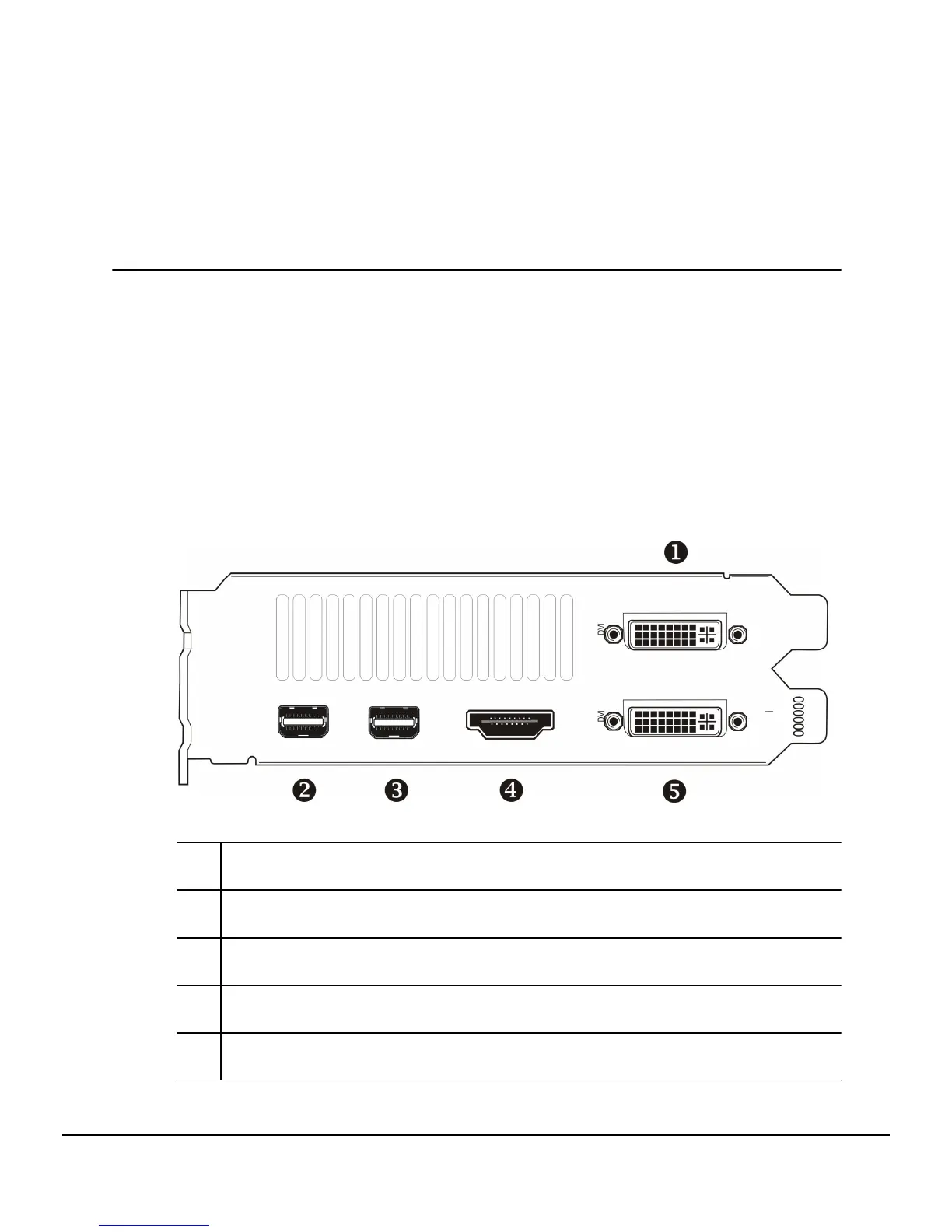

Figure 4–1 AMD Radeon HD 6950/6970 Display Connections
1 Single-link DVI-D connection. Provides video digital signals and HDMI™
output that is compatible with most HDMI-compliant devices.
2 Mini DisplayPort (DP+) connection. Carries video and audio signals to
DisplayPort-compliant devices.
3 Mini DisplayPort (DP+) connection. Carries video and audio signals to
DisplayPort-compliant devices.
4 HDMI connection (Type A). Carries video and audio signals to HDMI-
compliant devices.
5 Dual-link DVI-I connection. Provides video digital signals and HDMI output
that is compatible with most HDMI-compliant devices.
© 2010 Advanced Micro Devices, Inc. AMD Radeon™ HD 6950/6970
