AMD Radeon R9 380 Series User Manual

Chapter 3
Display Configuration
This section describes how to configure displays and lists available display
connections for your graphics card.
3.1 Baseplate Connections
The following figure shows the display connections that are available on your AMD
Radeon™ R9 380 Series graphics card.
Note: The baseplate may not appear exactly as depicted.

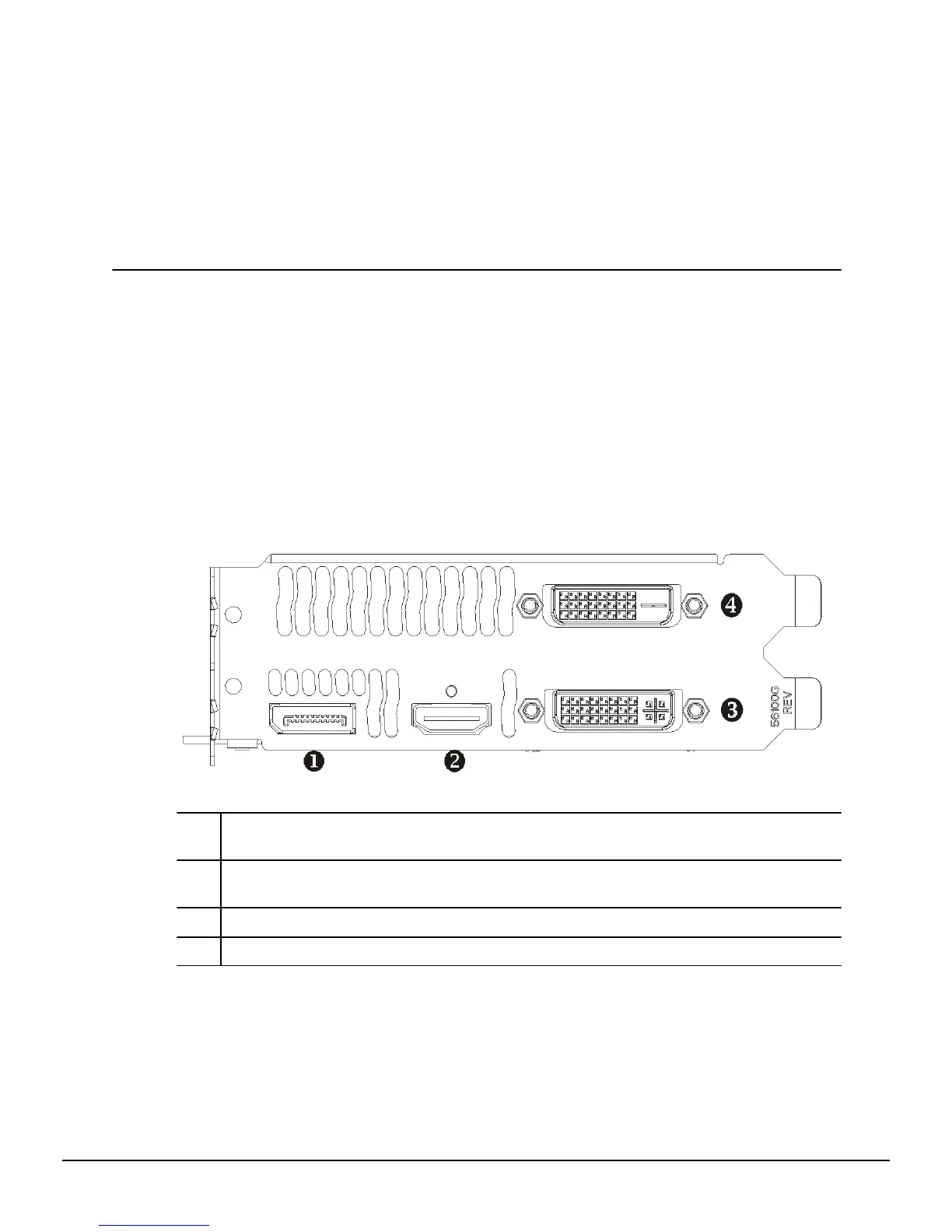

Figure 3–1 AMD Radeon™ R9 380 Series Display Connections
1 DisplayPort (DP++) connection. Carries video and audio signals to
DisplayPort-compliant devices.
2 HDMI™ connection (Type A). Carries video and audio signals to HDMI-
compliant devices.
3 Dual-link DVI-I connection. Provides video analog and digital signals.
4 Dual-link DVI-D connection. Provides video digital signals.
3.2 Display Adapters
Adapters can be used to connect displays that are not directly supported by the
connection types available on your graphics card.
©
2016 Advanced Micro Devices, Inc. AMD Radeon™ R9 380 Series Graphics

AMD Radeon R9 380 Series Specifications

General

Architecture	GCN 1.2
Stream Processors	1792
Core Clock	970 MHz
Memory Type	GDDR5
Memory Size	2 GB, 4 GB
Memory Bus	256-bit
Memory Bandwidth	182.4 GB/s
TDP	190 W
DirectX	12
OpenGL	4.5
GPU	Antigua PRO
Process Size	28 nm
Transistors	5 billion
Compute Units	28
Texture Units	112
ROPs	32
Outputs	2x DVI, 1x HDMI, 1x DisplayPort
Shader Model	5.0
PCI Express Version	3.0
