©American Audio® - www.americanaudio.com - VX Series™ Power Amplifier User Manual Page 7

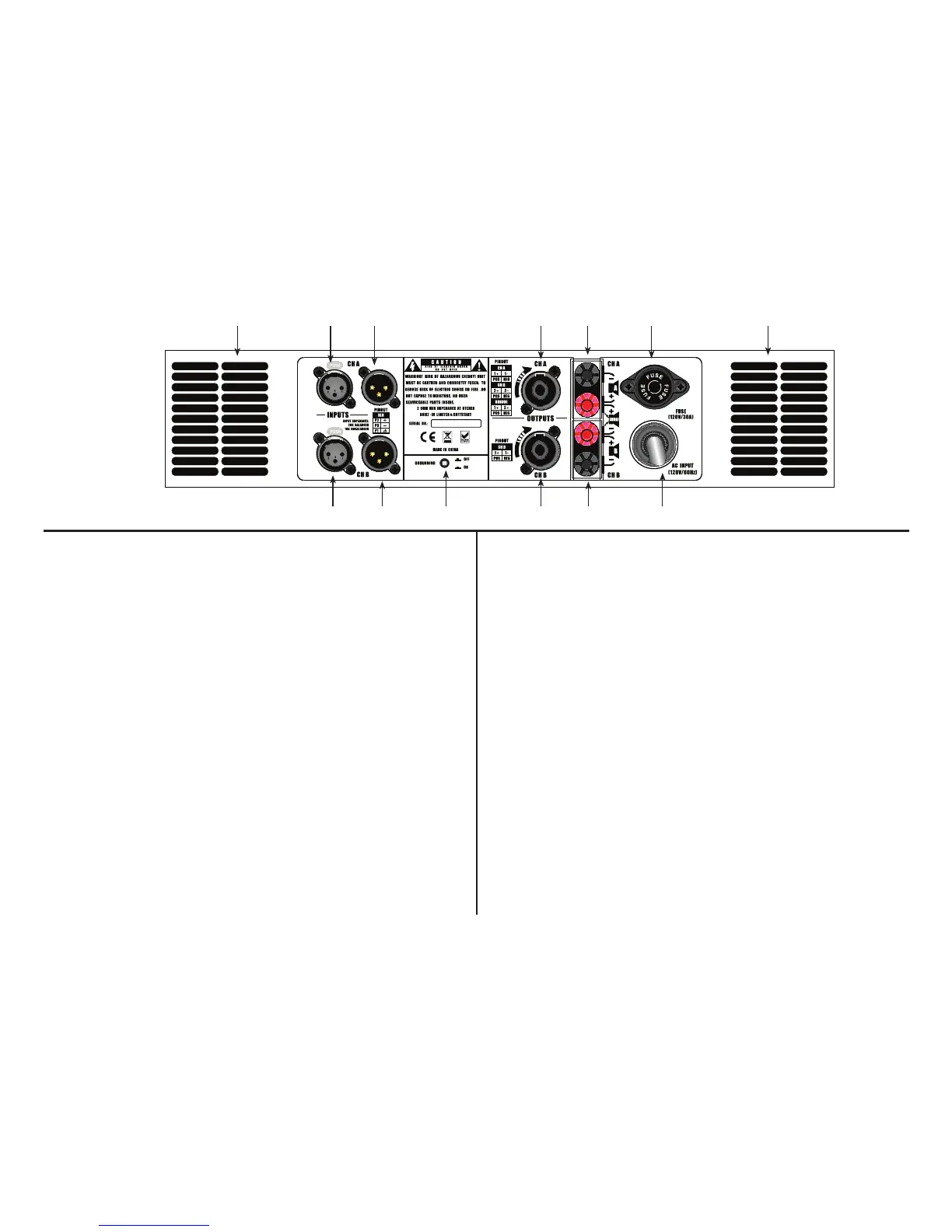

Rear Panel Control
VX2500
33. Cooling Fans - Dual high speed cooling fans
34. Channel A XLR Input - Channel A 3-pin XLR balanced input jack. See page
9 for more details.
35. Channel A XLR Ouput - Channel A XLR output jack. Excepts either a bal-
anced or unbalanced plug. See page 9 for more details.
36. Channel A Speakon Output - Optional speaker output connections. Use
pins 1+ and 1- of this 4-pole Speakon connector to connect to your speaker’s
Speakon input jack.
37. Channel A Output Jack/5 way Binding Post - Connect to your speaker’s
input jack. Red is positive signal and Black is negative signal.
38. Fuse Holder - This housing stores a 30 amp GMA protective fuse. Never
defeat the fuse, the fuse is designed to protect the electronics in the event of
severe power uctuations. Always be sure to replace the fuse with an exact
match as the one being replaced, unless otherwise told to do so by an autho-
rized American Audio® service technician.
39. AC Cord - Plug this cable into a standard wall outlet. Check that the voltage
in your area matches the ampliers required voltage.
40. Channel B Output Jack/5 way Binding Post - Connect to your speaker’s
input jack. Red is positive signal and Black is negative signal.
41. Channel B Speakon Output - Optional speaker output connections. Use
pins 1+ and 1- of this 4-pole Speakon connector to connect to your speaker’s
Speakon input jack.
42. Ground On/Off Switch - If hear a hum or any interference, put the Ground
switch in the “On” postion .
43. Channel B XLR Output - Channel B XLR output jack. Excepts either a bal-
anced or unbalanced plug. See page 9 for more details.
44. Channel B XLR Input - Channel B 3-pin XLR balanced input jack. See page
9 for more details.
40 3943 42 4144
33 333837363534
Figure 3
