Mega Pixel LED System Menu Mega Pixel LED System Menu
Addr - DMX Address Setting via control board -
1. Tap the MENU button until “Addr” is displayed, press ENTER.
2. “X” will now be displayed, “X” represents the displayed address.
Press the UP or DOWN buttons to nd your desired address.
3. Press ENTER to conrm, and then press and hold the MENU
button for at least three seconds to assign.
AUTO - Auto set DMX address -
1. Tap the MENU button until “AUTO” is displayed, press ENTER.
2. Press the ENTER and the xture will automatically assign a
DMX address.
ChNd - This menu will let you select your desired DMX
Channel mode.
1. Tap the MENU button until “ChNd” is displayed, press ENTER.
2. “X Ch” will now be displayed, “X” represents the displayed
DMX channel mode. Press the UP or DOWN buttons to nd your

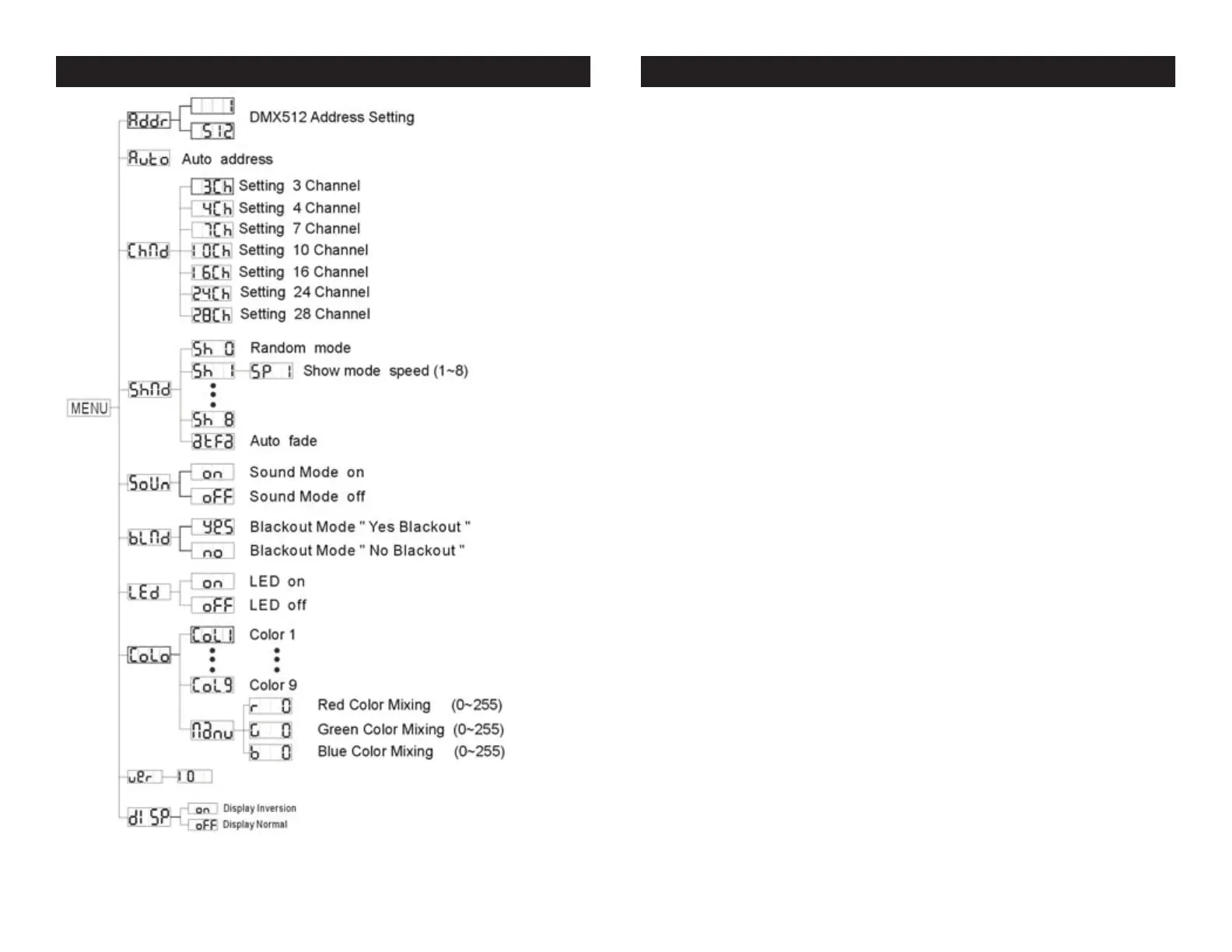

On-Board System Menu.
The Mega Pixel LED comes with an easy
to navigate system menu. This next section will detail the functions of
each command in the system menu. Please read the next section
thoroughly!
To access the main menu press the MENU button. Tap the UP or DOWN
buttons until you reach function you wish to change. When you reach
the function you wish to change press the ENTER button. When a func-
tion is selected use the UP or DOWN buttons to change the function
settings. Once your changes are made press the ENTER button, and
then press and hold the MENU button for at least three seconds to lock
the change into the system memory. If the MENU button is not pressed
and held within eight seconds the xture will automatically lock the
change into the system memory. To exit without making any changes
press the MENU button.
©American DJ Supply® - www.americandj.com - Mega Pixel LED Instruction Manual Page 7 ©American DJ Supply® - www.americandj.com - Mega Pixel LED Instruction Manual Page 8
