Cuisine & Performer RangesInstallation Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
21
INSTALLATION STEPS
STEP 17

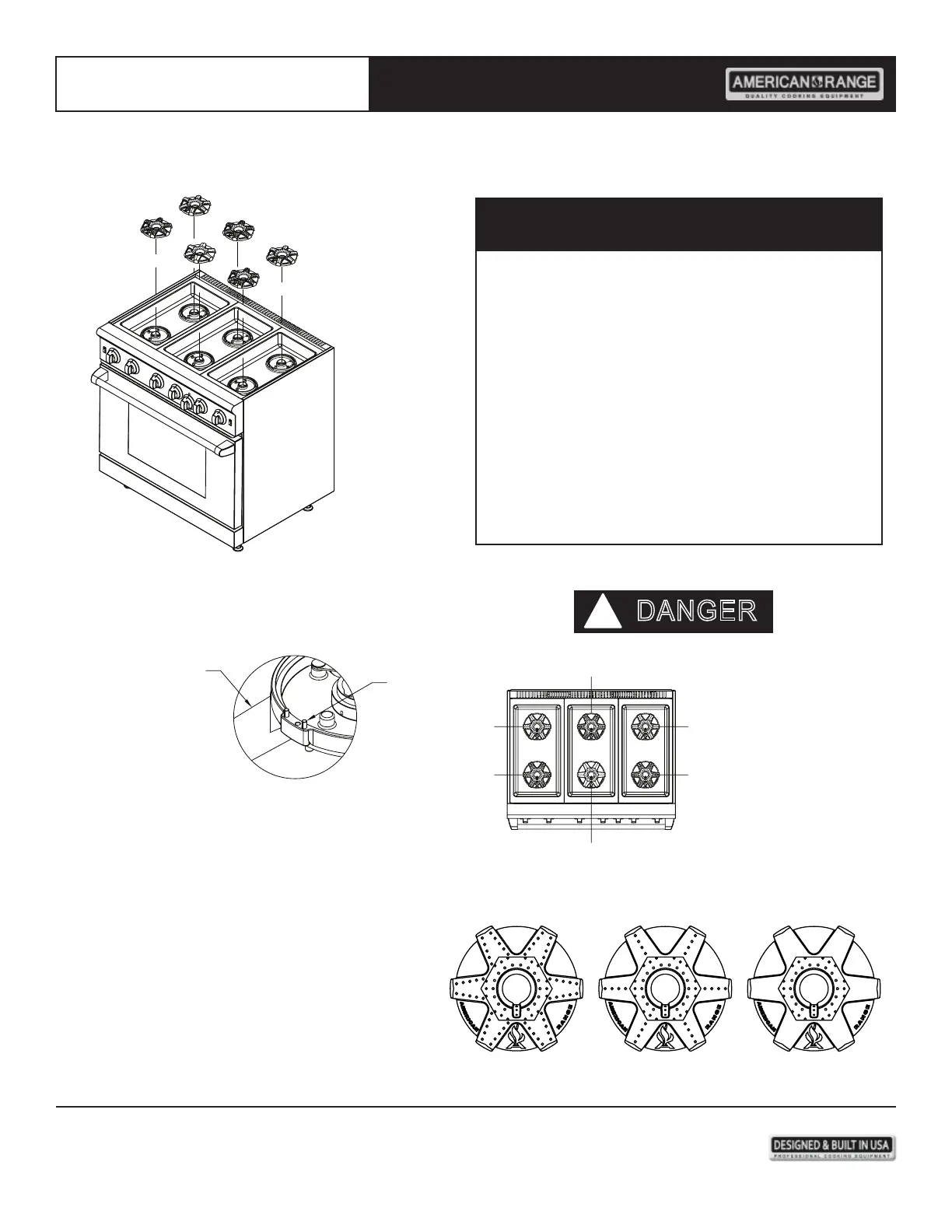

Burner heads are packed in a separate box. Replace
burner heads on burner bases. Align holes in top
burner with pins on base of burner for proper
capacity & operation. For locations of burner heads
see diagram below.
Each burner is different by capacity. Mis-aligning
them could increase carbon monoxide gases to an
unsafe level. Misalignment could alter the design
performance of the range.
* On LP gas units, the small burner uses a
“medium” burnerhead, but is congured to run at
“small” BTU levels.
LARGE MEDIUM SMALL
LARGE LARGE
MEDIUM MEDIUM
LARGE
SMALL
LARGE MEDIUM SMALL
PIN
BURNER BASE
