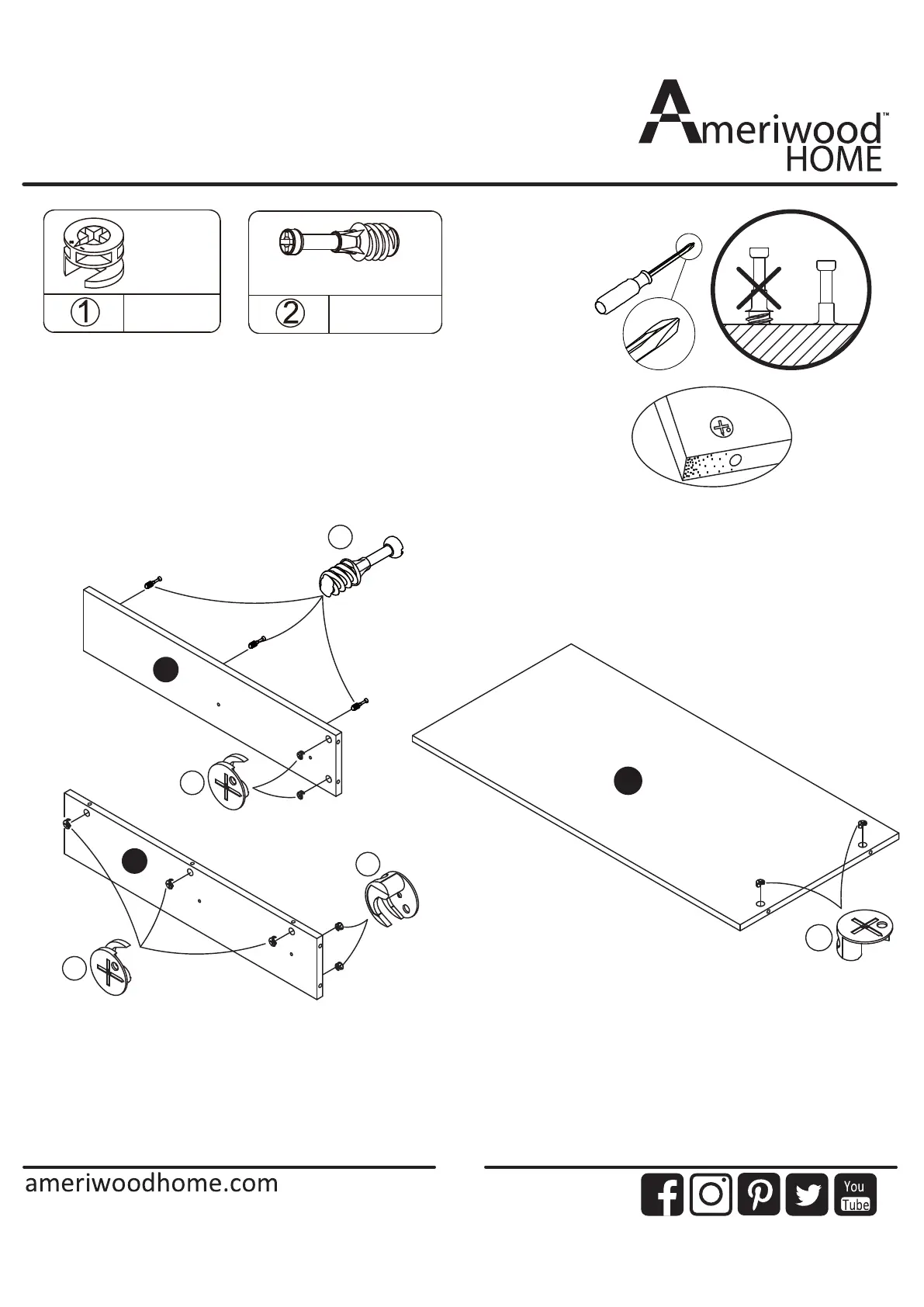

STEP3
Proper orientation of CAM LOCK
Posición correcta de la cerradura de leva.
Bonne orientation de la SERRURE DE CAME
1
1
1
2
C
B
9
Ø15x9.5mm
x 9
M8x20mm
x 3
3.1 Insert (1) into (B), (C) and (E) as illustrated.
3.2 Attach cam bolt (2) into (C) as illustrated.
1
E
