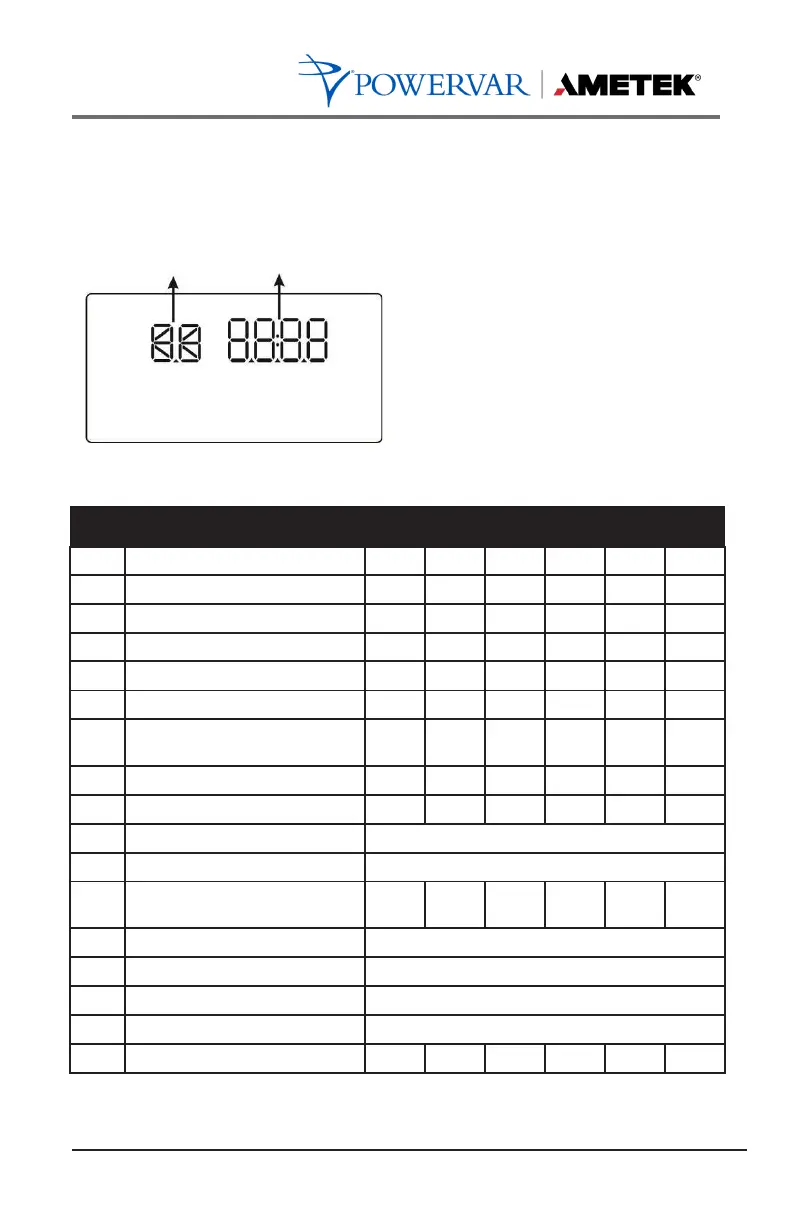

6.0 LCD SETTING
There are three parameters to set up the UPS. Refer to following
diagram.
Parameter 1 Parameter 2
Parameter 1: Program alternatives.
Refer to below table.
Parameter 2: Setting values for each
program.
15 Programs Available List for Parameter 1:
Code Description
Bypass
AC ECO CVCF
Battery
Battery
Test
01 Output voltage
Y
02
Output frequency
Y
03 Voltage range for bypass
Y
04 Frequency range for bypass
Y
05 ECO mode enable/disable
Y
06 Voltage range for ECO mode
Y
07
ECO mode frequency range
setting
Y
08 Bypass mode setting
Y
Y
09 Battery backup time setting
Y Y Y Y Y Y
10 Reserved
Reserved for future
11 Reserved
Reserved for future
12 Hot standby function enable/
disable
Y Y Y Y Y Y
13 Battery voltage adjustment
Function is not available on display
14
Charger voltage adjustment
Function is not available on display
15 Inverter voltage adjustment
Function is not available on display
16 Output voltage calibration
Function is not available on display
17 Charging current setting
Y
Y
Y
Y
Y
Y
*Y means that this program can be set in this mode.
