D - MACHINE ADJUSTMENT
13. CLAMP PLATE SPREADING
The amount of spread distance is determined by the sewing application. Loose fabric (especially thin) should
cause stitches missing.
Rotate the left-handle until the clamp plate rollers are positioned to the widest part of the spreader block..
After loosing the locking screw of the clamp, change the spreading size by the adjusting screw.
For denim, the producer recommends the spreading 0,6 mm between plate and located slipped out stop.

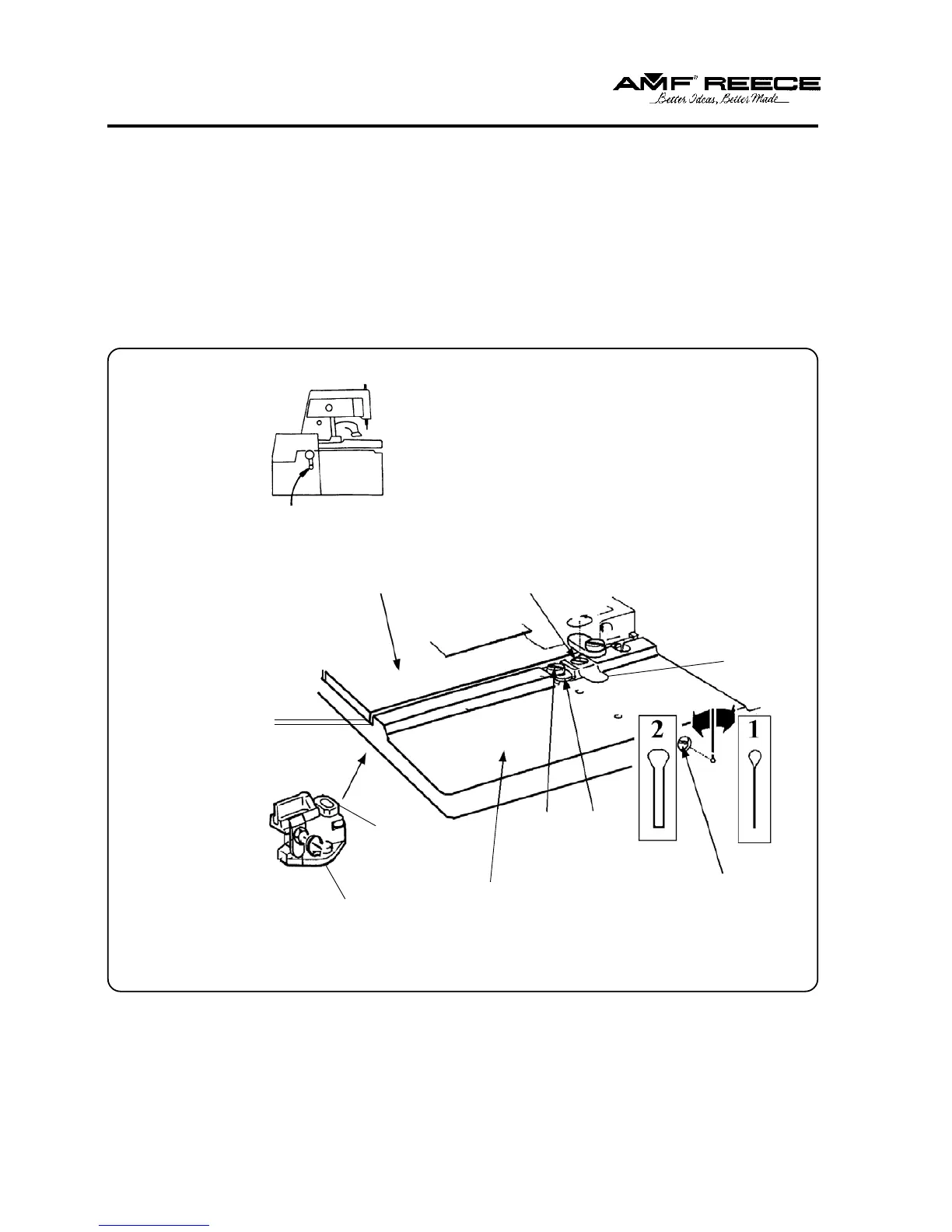

Left-hand crank
Clamp
Adjusting screw
Bedplate
Stop
screw
Stop
Knife holder
Spreader block
Clearance must be
equal on the both sides
Clamp plates Locking screw
