E - MACHINE ADJUSTMENT FOR THE ROUND EYE

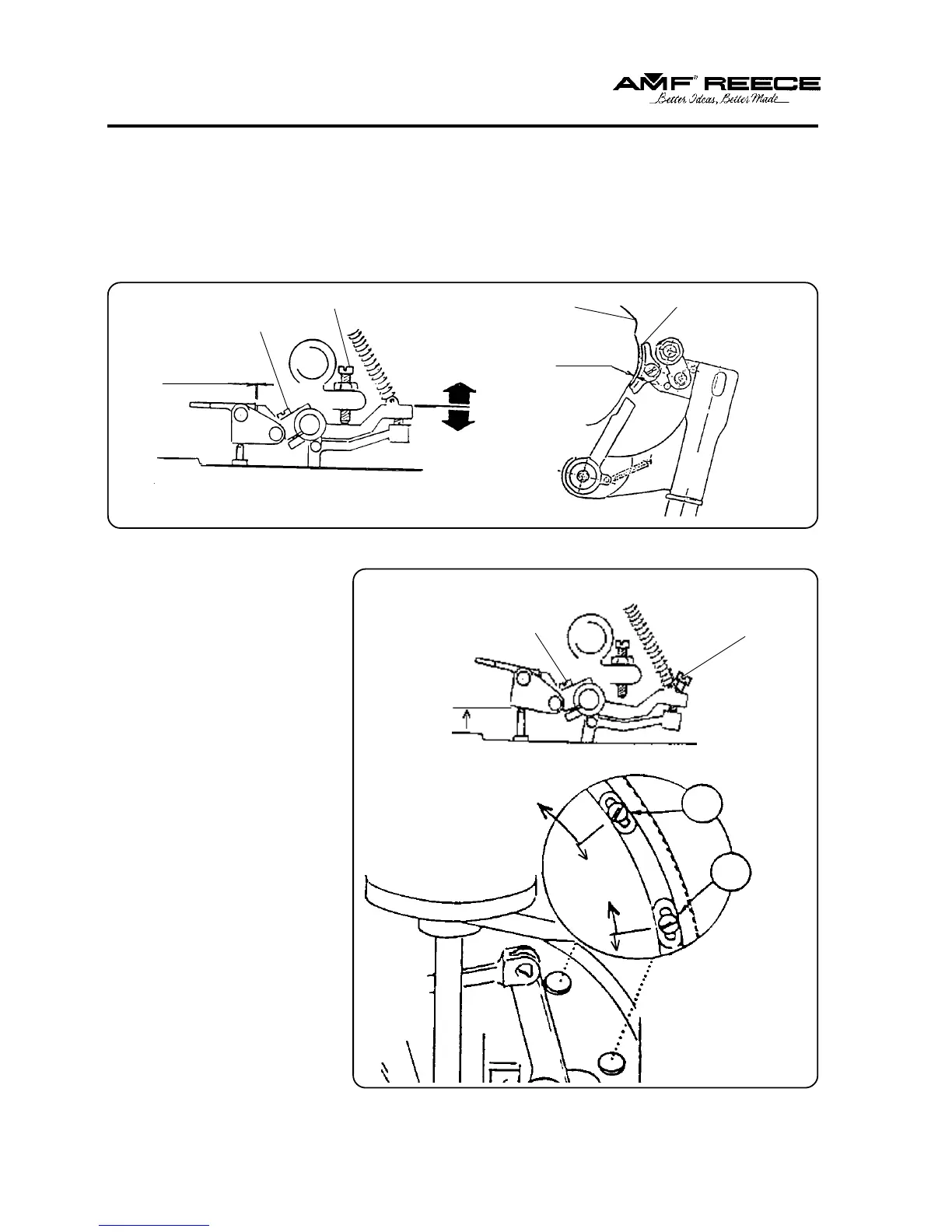

3. STOP MOTION CONTROL
With the machine in the home position, using the adjustable screw , set the gap 0.1 to 0.2 mm, (0.004 to
0.008"). Loosen the brake shoe locking screw and adjust the brake shoe and the right-hand stop
wheel clearance to 0.25 mm, (0.010").
Using the control screw, adjust the gap bolt to 0.4 mm, (0.016").
0.25 mm
.010"
0.1 to 0.2 mm
.004 to .008"
2
1
To adjust the sew start mechanism,
loosen the first stitch screw 1 and
correctly position the sewing
mechanism. Adjust the last stitch
screw 2 to obtain the normal correct
setting for the last stitch. The normal
correct setting for the last stitch, is to
sew 2 or 3 stitches
over the first stitch, to ensure the
eyelet will not unravel.
First stitch
Last stitch
Start sooner
Start sooner
Start later
Start later
Gap bolt
0.4 mm,.016”
Maximum
