3. SCHEME OF THE LUBRICATION DISTRIBUTION
The machine is equipped with needle and ball bearings, which in combination with two lubrication
circuits significantly decrease required maintenance.
Circuit I for lubrication of the arm has oil in reservoir of the barrel. The lubrication of lower unit is
made by oil in frame recess - circuit II. In case of replacement of any branch of distribution it is

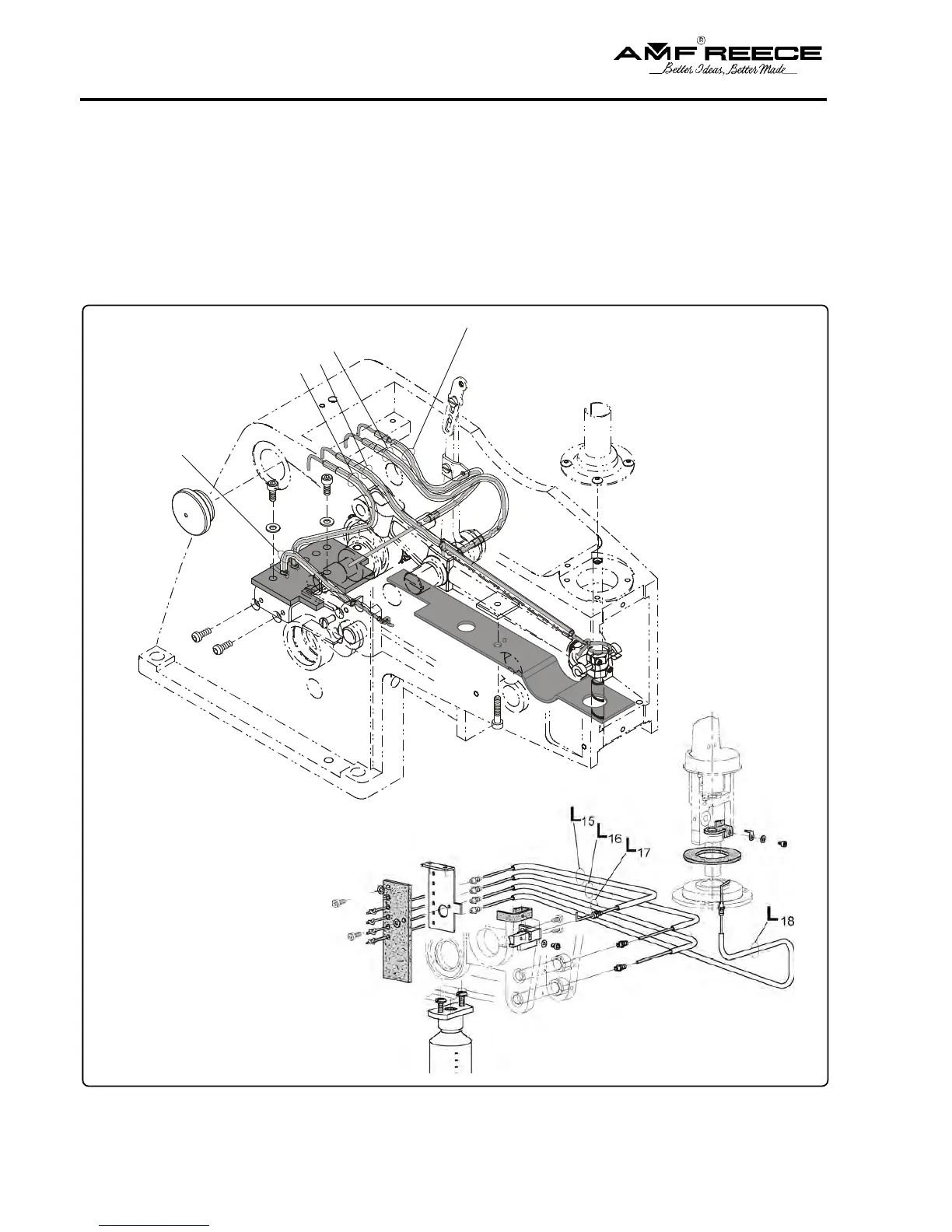

possible to order the tube sets and wicks. Replace according to the illustration below:
