AMF REECE S-311 - Cutting Block Position Adjustment in ACL

Revised 11/2007
E-mail: service@amfreece.cz; parts@amfreece.cz; website: www.amfreece.com
Phones: +420 582 309 146 (Service), +420 582 309 286 (Spare Parts); Fax: +420 582 360 606
S-311+ACL
1-19 ACL
E - STANDARD ADJUSTMENT

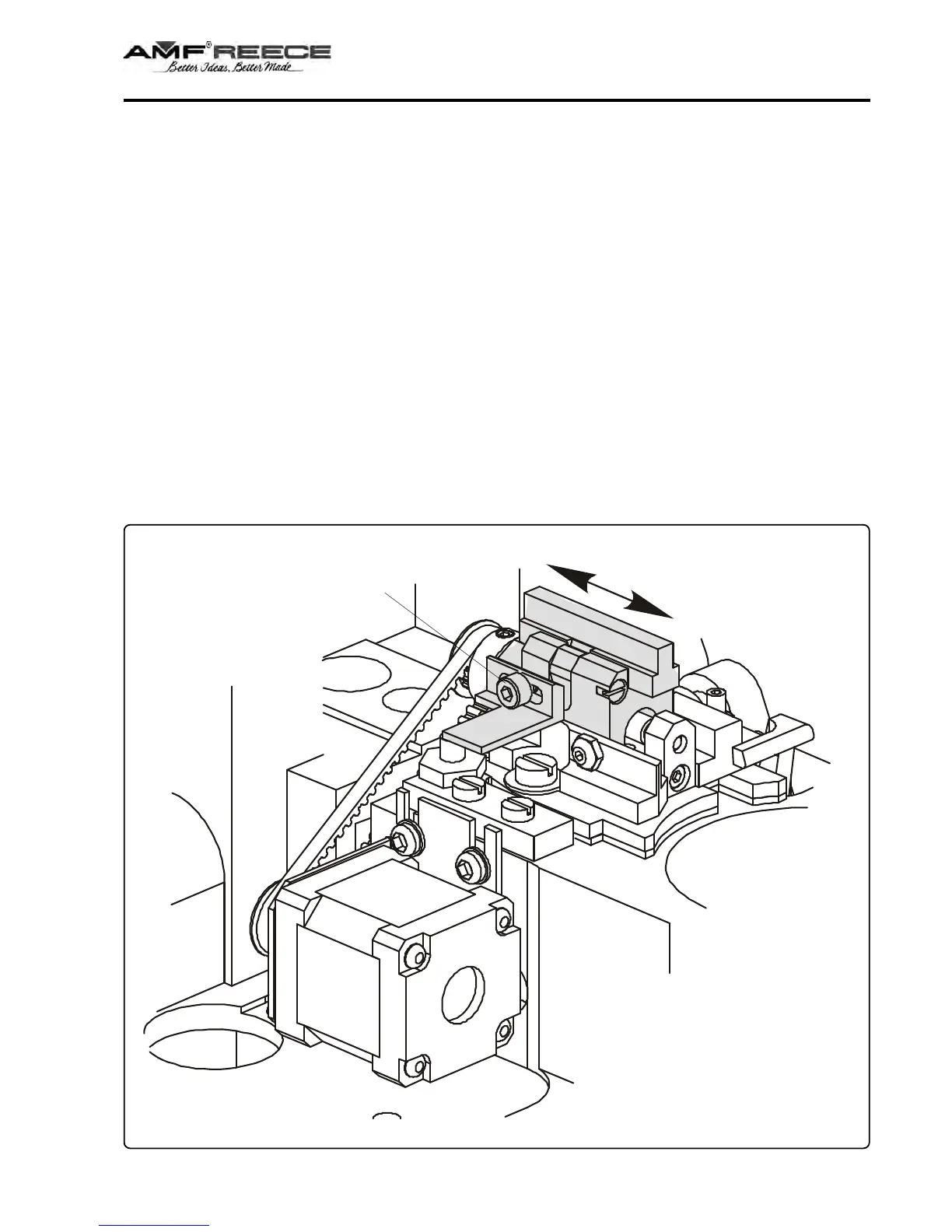

2. CUTTING BLOCK POSITION ADJUSTMENT IN ACL MECHANISM
1. Adjust the machine for version ACL - (LP1, LP2, LPE) see section C - 4.1.
2. Adjust the requested cutting lenght on the display
.
3. Insert the paper between knife and block and test the cut with button for cutting.
4. If the adjusted parameters do not match with control cut, correct the cutting block possition manually.
5. Loose the clamp screw ➏ and shift block into requested position.
6. Tighteen the clamp scew ➏ to secure the block position and repeat the cut testing.
➏
