24

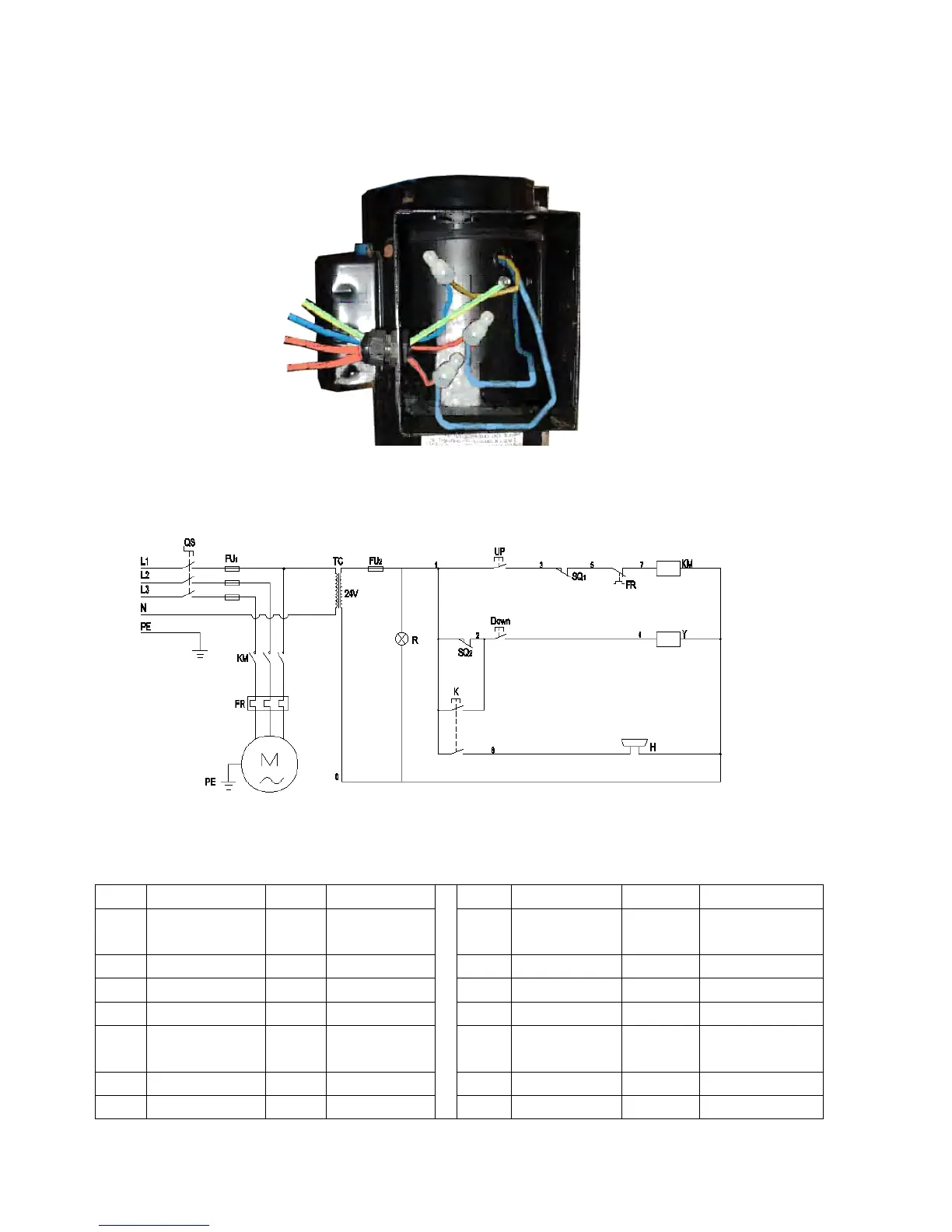

3.2 Wire connection diagram of Three phase hydraulic motor (See Fig. 31).
Motor wire (M1、M2、M3) are connected to the three wires in the motor.
Turn on the power, push button “UP”, if motor run but lift do not work, pls. change the wire
M1 and M2 connection.
3.3、380V Circuit diagram (See Fig. 32)
380V Circuit component
Item
Name
Code
Specification
Item
Name
Code
Specification
1
Power switch
QS
380V AC
8
Lowering
alarm button
K
duplex
2
Fuse
FU
1
25A
9
Motor
M
3 phase
3
Fuse
FU
2
3A
10
Transformer
TC
24V AC
4
AC contactor
KM
24V AC
11
Limit switch
SQ
（
1~2
）
10A
5
Solenoid
valve
Y
24V AC
12
Thermal
relay
FR
12A~18A
6
Push button
UP
Single
13
Buzzer
H
24V AC
7
Push button
Down
Single
14
Power indictor
R
24V
Fig.31
Fig.32
M1
M2
M3
Earth
wire
3 phase
