25

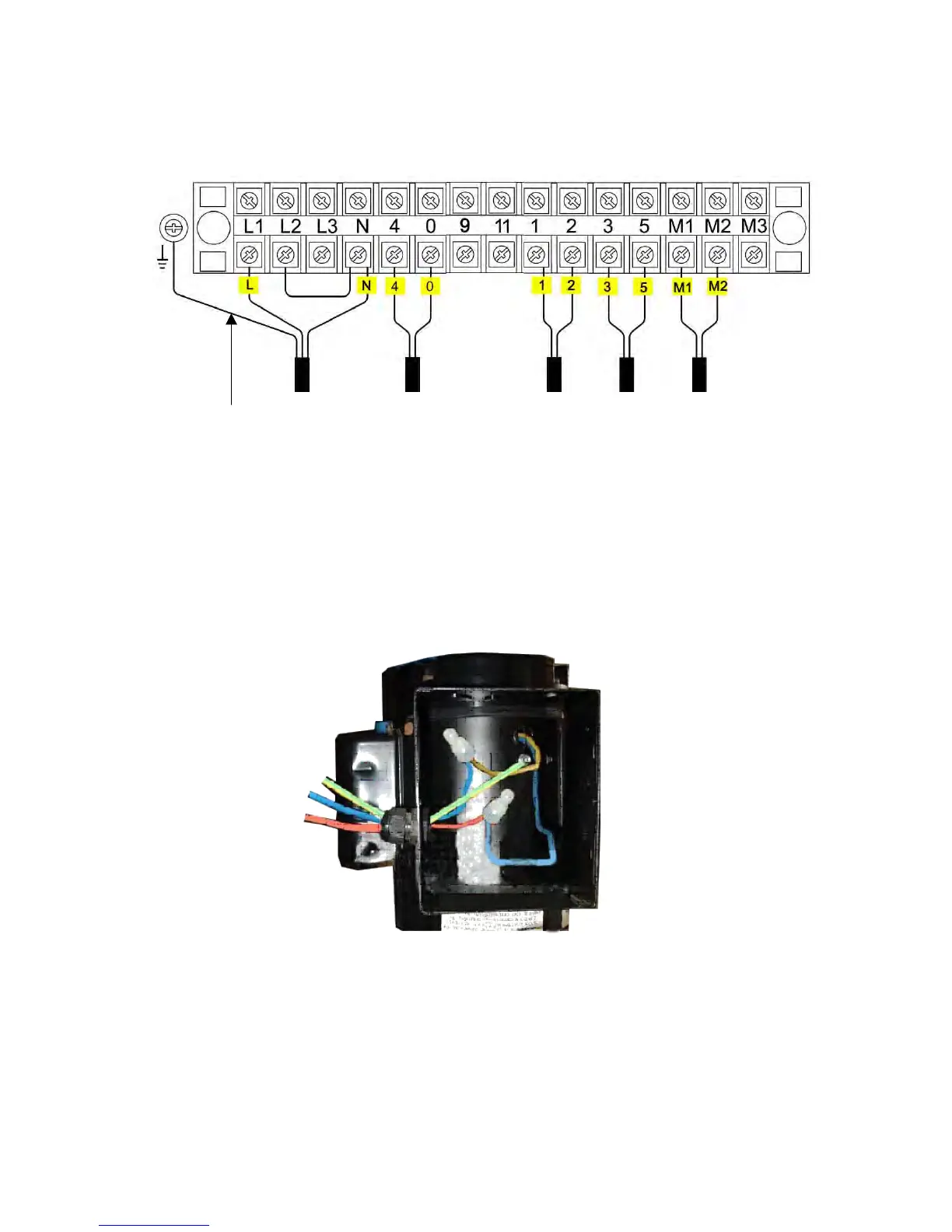

4、220V Wire connection and circuit diagram
4.1 Wire connection diagram in the control box (See Fig. 33)
4.2 Wire connection of single phase hydraulic power unit( See fig.34)
Motor wire (M1、M2) separately connected to two terminals in the control box。
Fig.33
Fig.34
M1
M2
Earth
wire
Power
source
wire
Solenoid
valve wire
Motor wire
Earth
wire
Low
limit
switch
High
limit
switch
