Introduction
Thank you for purchasing the ADI-P controller - a smartphone operated controller for filtration systems of up to
two filters. The system consists of two major components, the ADI-P Controller and the ADI-P Mobile Application.
The ADI-P Controller can be supplied in two different configurations: as an integral component already connected
to the filter(s) and configured for that specific filter model or as a standalone unit to be connected and configured
for an existing installed filter(s).
This document covers both product configurations.
ADI-P Controller Quick Guide
(for detailed information see Understanding the application's screens data items on page 10)

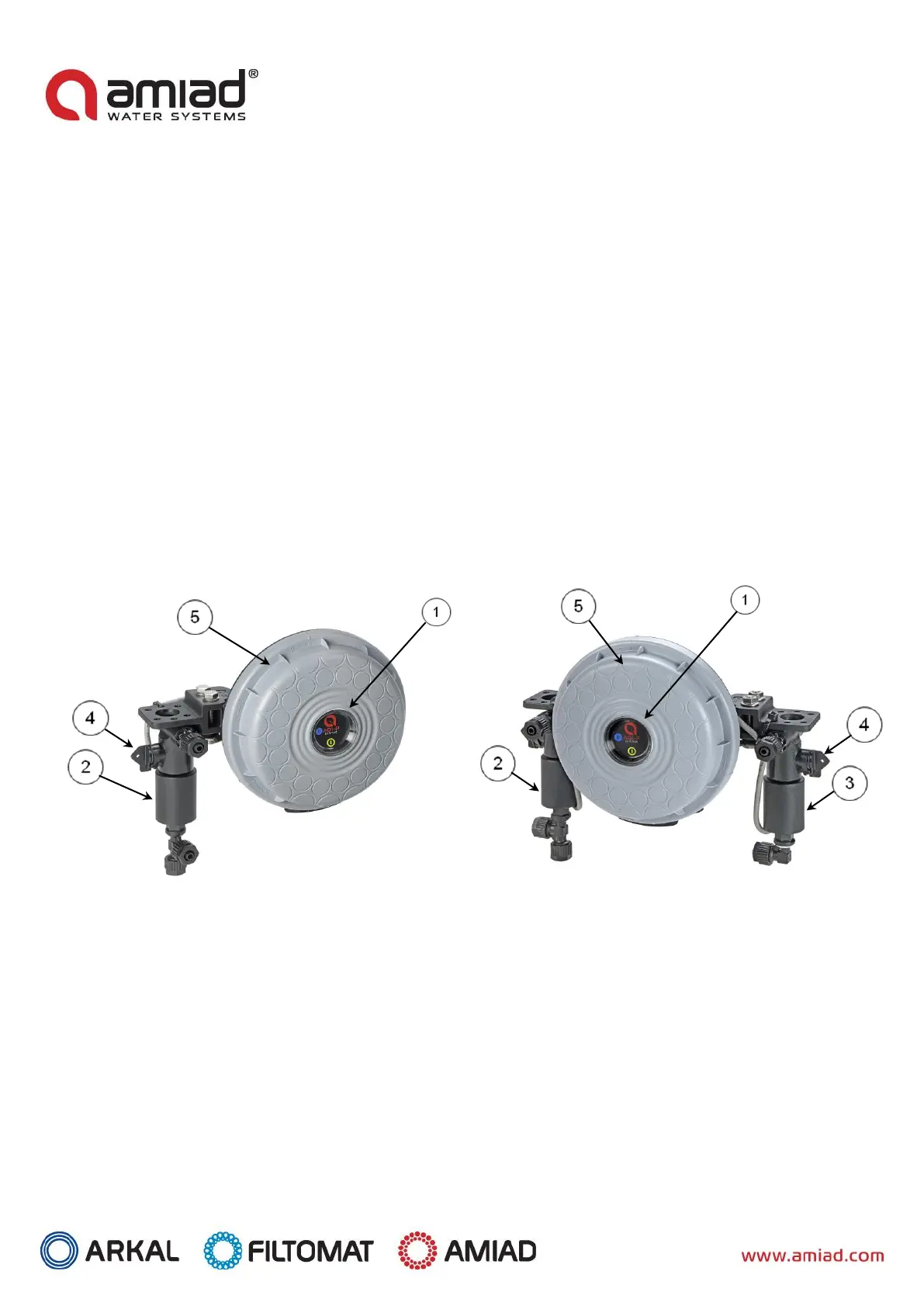

Take few moments to familiarize yourself with the ADI-P Controller components:
1. ADI-P panel for manual flushing button and indication LEDs
2. 3-Way 12VDC solenoid #1 – latch
3. 3-Way 12VDC solenoid #2 – latch
4. Solenoids' manual operation handles
5. ADI-P cover
