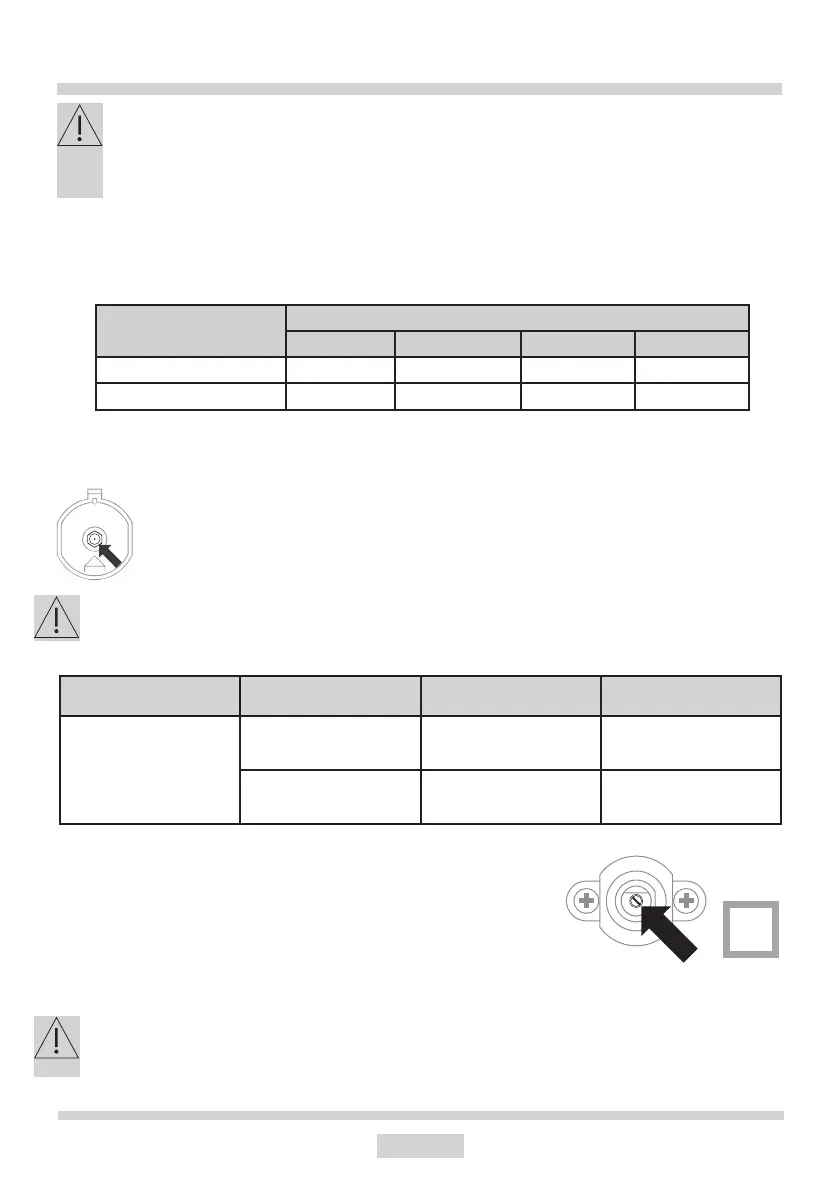

Replacement of burner nozzle: loosen the nozzle with a dedicated wrench (7). Fit the new nozzle,
suitable for the required gas type (see table above for reference).
After you have converted the cooktop to another gas type, make sure you have placed a label containing
that information on the appliance.
Valve adjustment
Valve adjustment should be done with the control knob set at Burner ON
saving ame position.
Remove the knob, and adjust the ame with a tiny screwdriver (see g.
7 below).
7
Checking the adjusted ame: heat the burner at full open position for 10 minutes. Then turn the knob into the saving setting.
The ame should not extinguish nor move to the nozzle. If it goes o󰀨 or moves over to the nozzle, readjust the valves.
Note.
It is up to the used to request converting the appliance to another gas type if so required by the local conditions
at a licensed gas tter / service.
NOTE
The cooktops delivered by the supplier come with the burners which are suitable for burning the type of
gas which is quoted in the type plate and in the guarantee certicate. The type plate is tted at the bottom
panel of the appliance. The following must be carried out if converting to another gas type is required:
l nozzles must be replaced (see assembling table),
l reduced valve ow rate must be adjusted.
Converting the unit to another gas type (see category on the rating plate on the appliance)
Gas type
Nozzle diameter
Small Medium Large WOK
2H G20/20mbar 72 92 115 55 + 2 x 75
3B/P G30/37mbar 46 62 79 37 + 2 x 52
Adjustment of the reduced valve ow
Burners Flame
Converting the cooktop
from LPG to natural gas
Converting the cooktop
from natural gas to LPG
Regular burners
Full ame
Replace the burner nozzle
according to the guideli-
nes in table 1
Replace the burner nozzle
according to the guideli-
nes in table 1
Saving ame
Loosen the adjustment
spindle (see g. 7) and
adjust the ame
Loosen the adjustment
spindle (see g. 7) and
adjust the ame
