120 ARX 4
1208531 | 03.07.2012

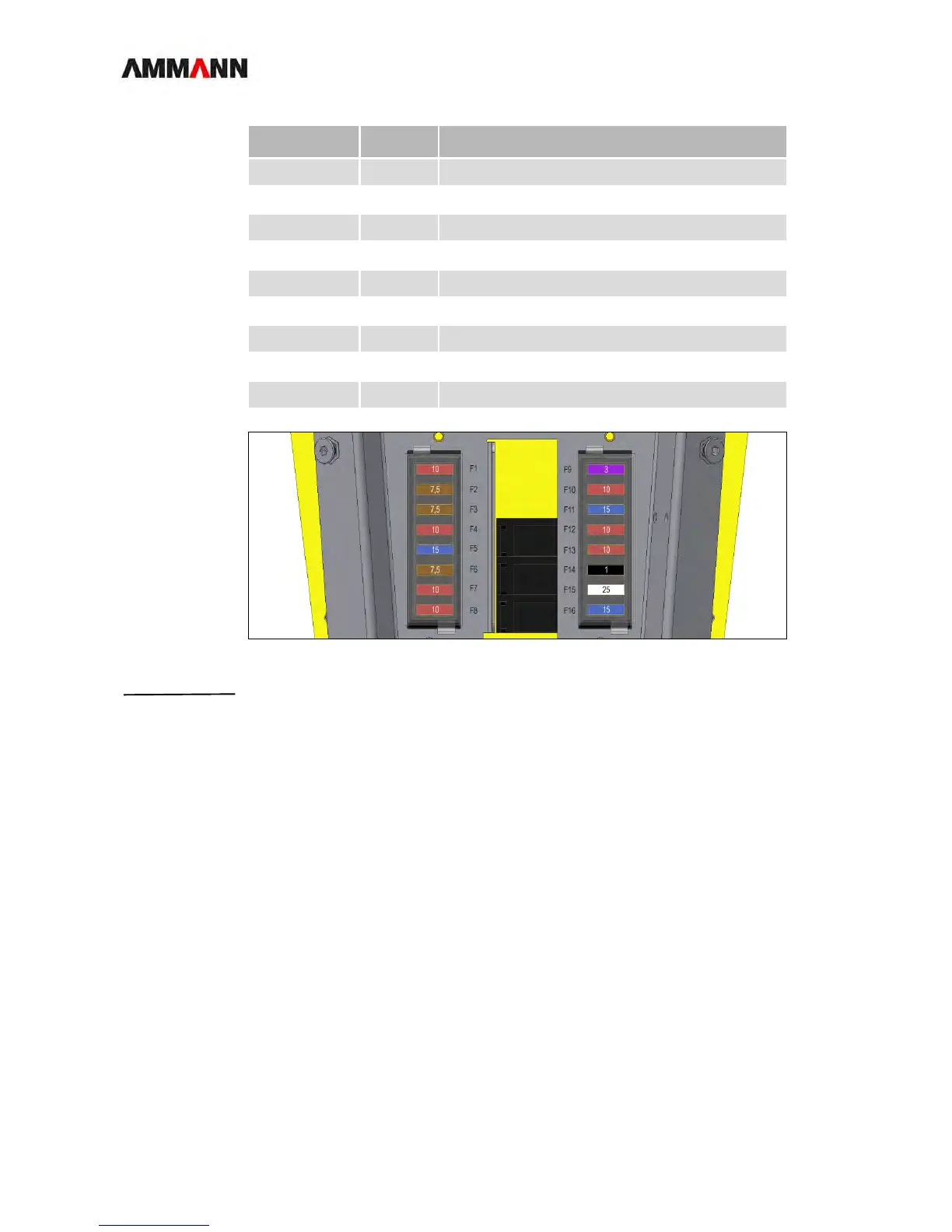

Fig. 10-5 Position of fuses in the steering column
NOTE Faulty installation can cause short circuiting or a cable fire.
• When replacing fuses, do not mix them up.
10.3 Replacing bulbs
10.3.1 Replacing bulbs at the front
1 Open the hood, see .Opening the hood, Page 91.
The bulbs of the low beam lights (1) and the parking lights (2) are now accessible.
F8 10 A Seat heating
F9 3 A Controller
F10 10 A Controller, drive pump, brake valve, holding solenoid
F11 15 A Sprinkling
F12 10 A Flow divider, edge cutter
F13 10 A Vibro switch valve
F14 1 A Brake pressure switch
F15 25 A Fuse, hydraulic oil cooler
F16 15 A Reserve
Fuse No. Power Fuse-protected circuit
