Permissible angle ranges for diagonal lashing:
● 0° ≤ α ≤ 40°
● 40° ≤ β ≤ 50°

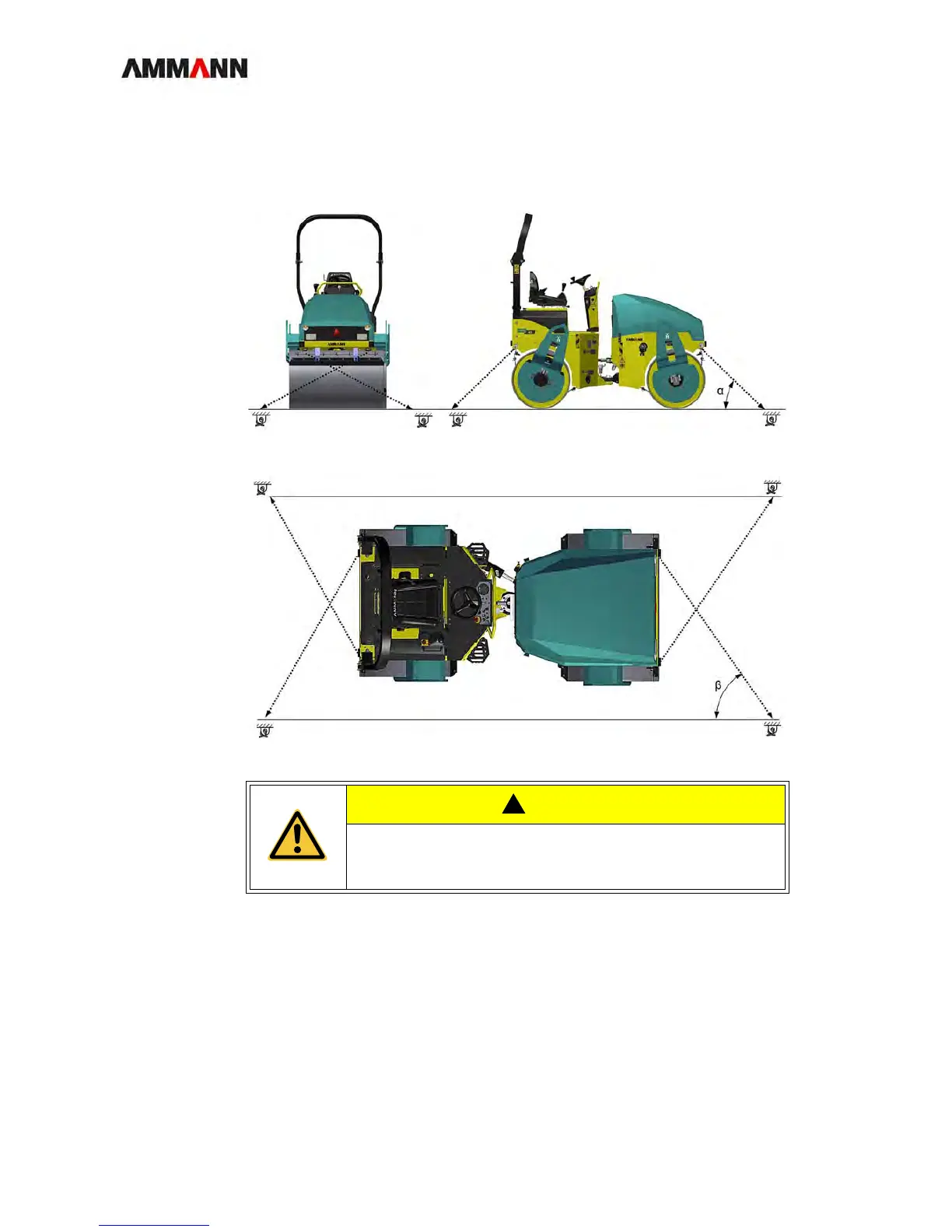

Fig. 12-3 Lashing the roller / side view
Fig. 12-4 Lashing the roller / front view
12.1.4 Center of gravity
The center of gravity relevant to transport is located 650mm from the floor and
approx. in the center of the roller, depending on the fill level of the diesel or water
tanks.
CAUTION
Risk of accident through blocked steering!
• Open the joint protection before starting the roller.
