AMP RESEARCH BED X-TENDER HD™
15
x2
Strap latch insert
16
x2
Socket cap screw
(Only provided on
Deep Bed/Small kits)
(Only provided on
Deep Bed/Small kits)
12
x4
19-03355-90
M8 Bolt
13
x4
19-03356-90
M8 Nut
Kit Number 74603-01A

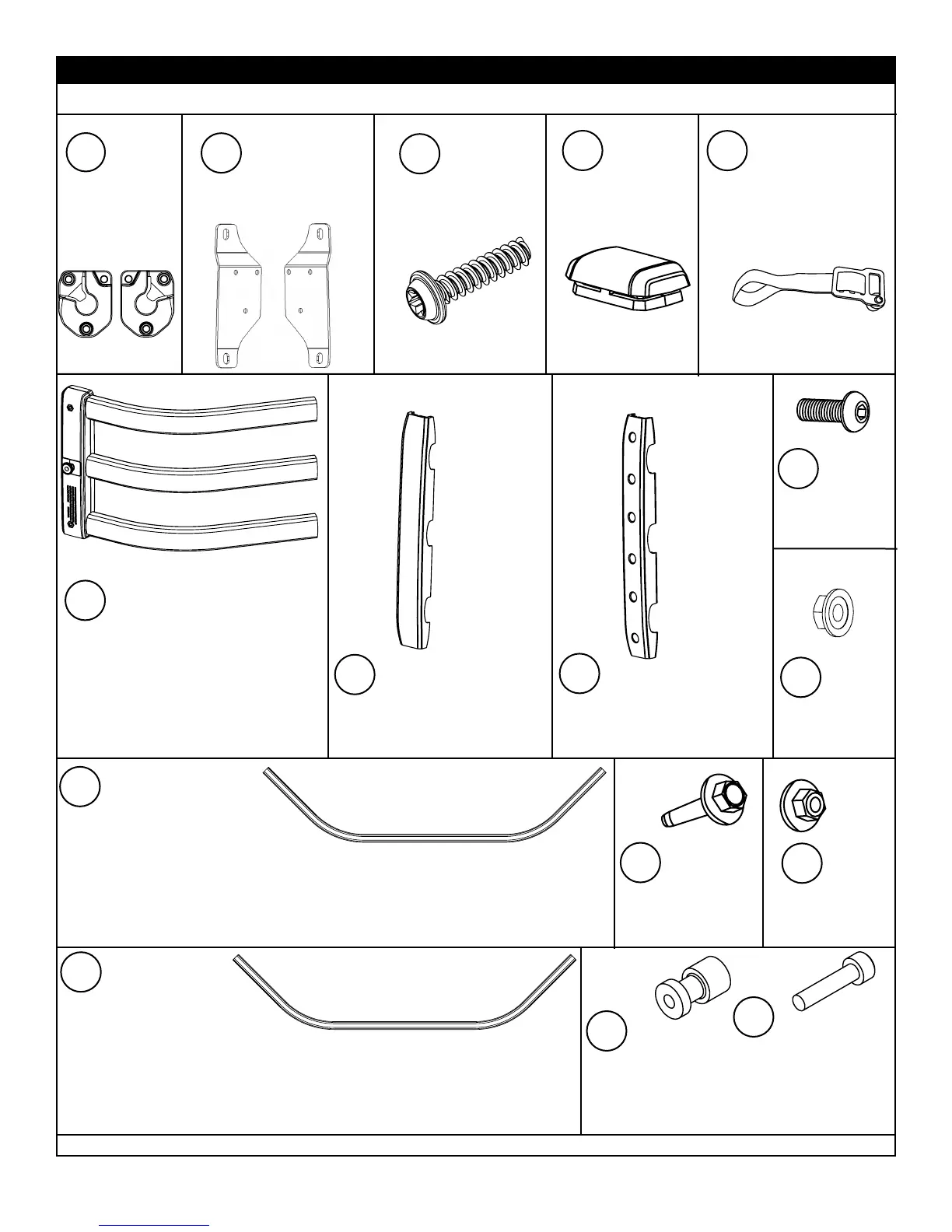

PARTS LIST AND HARDWARE IDENTIFICATION
74608-01A
Quick Mount
Bracket Set
1
x2
74606-01A
Mounting Bracket
2
x2
x4
4
20-3654-90
Bumper
11
Silver:12-03791-53SP
Black:12-03791-53BP
Double Bend Center Tube (With AMP Logo)
3
11-03639-90
PT-Screw
x12
x2
x2
5
20-0xxxx-13
Strap Buckle Assembly
Silver:12-03791-53S
Black:12-03791-53B
Double Bend Center Tube (Without AMP Logo)
14
6
x2
Silver: 20-0xxxx-xx
Black: 20-0xxxx-xx
Pivot Upright Assembly
7
x2
20-3640B-90
Bumper Upright Outer
8
x2
20-3640A-90
Bumper Upright Inner
10
x6
10-02387-90
M5 Nut
9
x6
19-03131-90
M5 Bolt
