A M P R E S E A R C H P O W E R S T E P
T M
– F O R D S u p e r D u t y

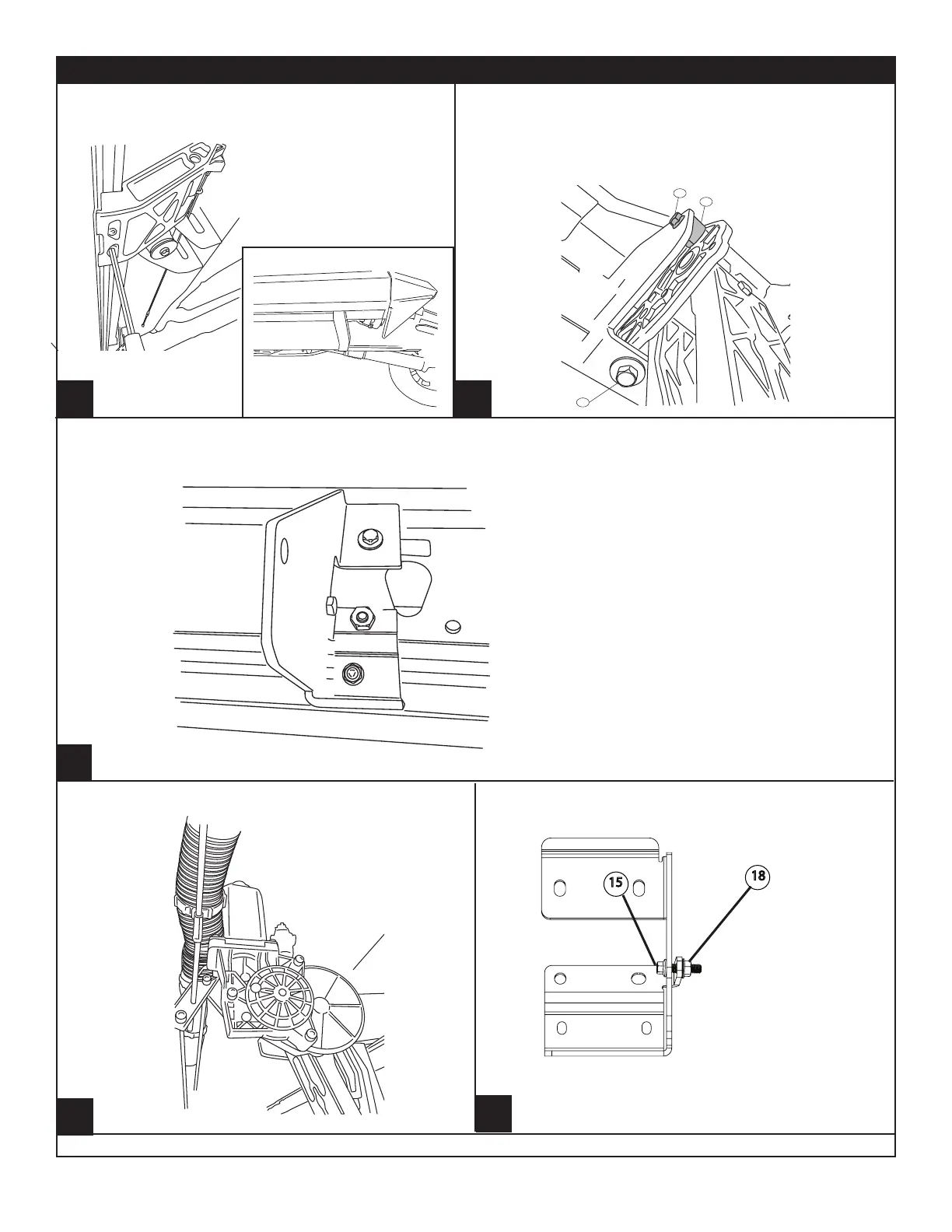

Torque bolts on mounting brackets as shown to 16ft-
lbs.
Slide mounting T-nut into position, Center board in
rail pocket. Tighten fasteners to 10 ft-lbs.
Using a 13mm socket Torque linkage bolts 4x (8) from
step 3 to 16 ft-lbs. Next use a 10mm socket, torque
linkage spacer bolt 2x (12) from step 6 to 8 ft-lbs. Once
linkages are tight cycle board to verify steps deploy
under own weight.
Attach motor to harness. Using a 4mm hex Torque
to 36 in-Lbs.
Start from rear of vehicle tighten brackets to the body of the vehicle. First Torque Button Head Bolts(10) to
16ft-lbs and then tighten Captive washer bolts(8) to 16 ft-lbs.
