Ampeg Heritage Series User Manual

Heritage Bass Guitar Cabinets
SVT-410HLF / SVT-810E
10
INSIDE INSIDE
POWER HANDLING:
800W RMS (MONO)
400W RMS (DUAL)
IMPEDANCE:
4 OHMS (MONO)
8 OHMS (DUAL)
PIN 1+ = POS (+)
PIN 1- = NEG (-)
4X10-DUAL MODE ONLY
4X10-DUAL MODE
MONO INPUTS
-or-
POWER HANDLING:
800W RMS (MONO)
400W RMS (DUAL)
IMPEDANCE:
4 OHMS (MONO)
8 OHMS (DUAL)
PIN 1+ = POS (+)
PIN 1- = NEG (-)
4X10-DUAL MODE ONLY
4X10-DUAL MODE
MONO INPUTS
-or-
1 2
Combined (Mono) Split (Dual)
XLR line out
MICRO-VR
REVISION
SERIAL NUMBER
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE. DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
AVIS: RISQUE DE CHOC ELECTRIQUE — NE PAS OUVRIR
speaker outputs
150W @ 8 Ω
200W @ 4
Ω
4 Ω minimum
XLR line out
MICRO-VR
REVISION
SERIAL NUMBER
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE. DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
AVIS: RISQUE DE CHOC ELECTRIQUE — NE PAS OUVRIR
speaker outputs
150W @ 8 Ω
200W @ 4
Ω
4 Ω minimum
2

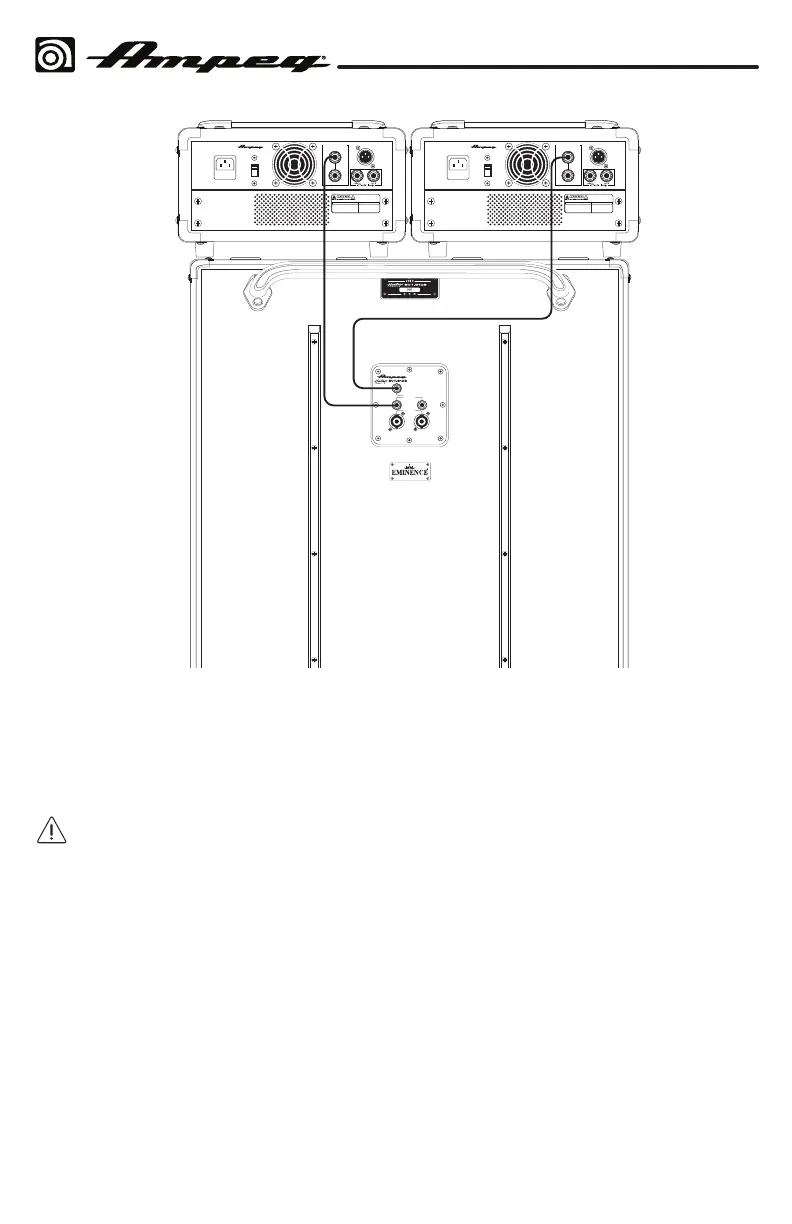

In the "Split (dual)" example 2 above, a speaker cable with 1/4" ends connects from the
speaker output of the amplier to the Upper 4x10 Dual Mode 1/4" input of the Ampeg
Heritage SVT-810E cabinet. An additional speaker cable with 1/4" ends connects from the
speaker output of another amplier to the Lower 4x10 Dual Mode/Mono Mode 1/4" input.
This conguration allows two ampliers to separately drive each 4x10 section of the full
cabinet.
WARNING: Always use good quality (non-shielded) speaker cables. Never use
(shielded) instrument cables to connect speakers to an amplier.

Ampeg Heritage Series Specifications

General

Usable Low Frequency (-10dB)	40Hz
Corners	Metal
Input Connectors	2 x 1/4" jacks
Series	Heritage
Category	Enclosure
Covering	Tolex
Handle	Side Handles
