Ampeg Heritage Series User Manual

Heritage Bass Guitar Cabinets
SVT-410HLF / SVT-810E
9

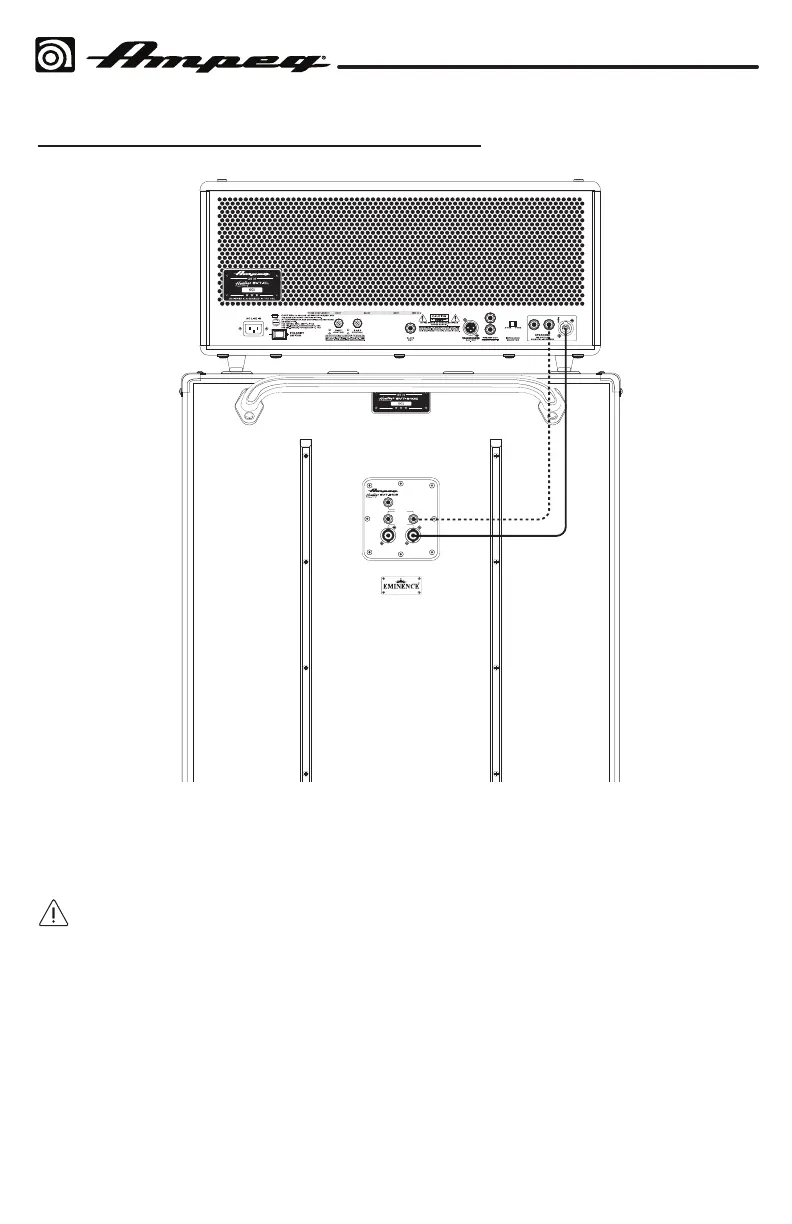

SVT-810E Suggested Hookup Diagrams
INSIDE INSIDE
POWER HANDLING:
800W RMS (MONO)
400W RMS (DUAL)
IMPEDANCE:
4 OHMS (MONO)
8 OHMS (DUAL)
PIN 1+ = POS (+)
PIN 1- = NEG (-)
4X10-DUAL MODE ONLY
4X10-DUAL MODE
MONO INPUTS
-or-
POWER HANDLING:
800W RMS (MONO)
400W RMS (DUAL)
IMPEDANCE:
4 OHMS (MONO)
8 OHMS (DUAL)
PIN 1+ = POS (+)
PIN 1- = NEG (-)
4X10-DUAL MODE ONLY
4X10-DUAL MODE
MONO INPUTS
-or-
1 2
Combined (Mono) Split (Dual)
XLR line out
MICRO-VR
REVISION
SERIAL NUMBER
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE. DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
AVIS: RISQUE DE CHOC ELECTRIQUE — NE PAS OUVRIR
speaker outputs
150W @ 8 Ω
200W @ 4
Ω
4 Ω minimum
XLR line out
MICRO-VR
REVISION
SERIAL NUMBER
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE. DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
AVIS: RISQUE DE CHOC ELECTRIQUE — NE PAS OUVRIR
speaker outputs
150W @ 8 Ω
200W @ 4
Ω
4 Ω minimum
1
In the "Combined (mono)" example 1 above, a speaker cable with 1/4" or Speakon ends
connects from the speaker output of the amplier to one of the Lower 4x10 Dual Mode/
Mono Mode speaker inputs of the Ampeg Heritage SVT-810E cabinet. This conguration
allows an amplier to drive all 8x10 speakers.
WARNING: Always use good quality (non-shielded) speaker cables. Never use
(shielded) instrument cables to connect speakers to an amplier. Also, do not use
both cable routes in the example listed above. Use one route or the other, but never both
simultaneously!

Ampeg Heritage Series Specifications

General

Usable Low Frequency (-10dB)	40Hz
Corners	Metal
Input Connectors	2 x 1/4" jacks
Series	Heritage
Category	Enclosure
Covering	Tolex
Handle	Side Handles
