Ampeg Heritage Series User Manual

Heritage Bass Guitar Cabinets
SVT-410HLF / SVT-810E
8

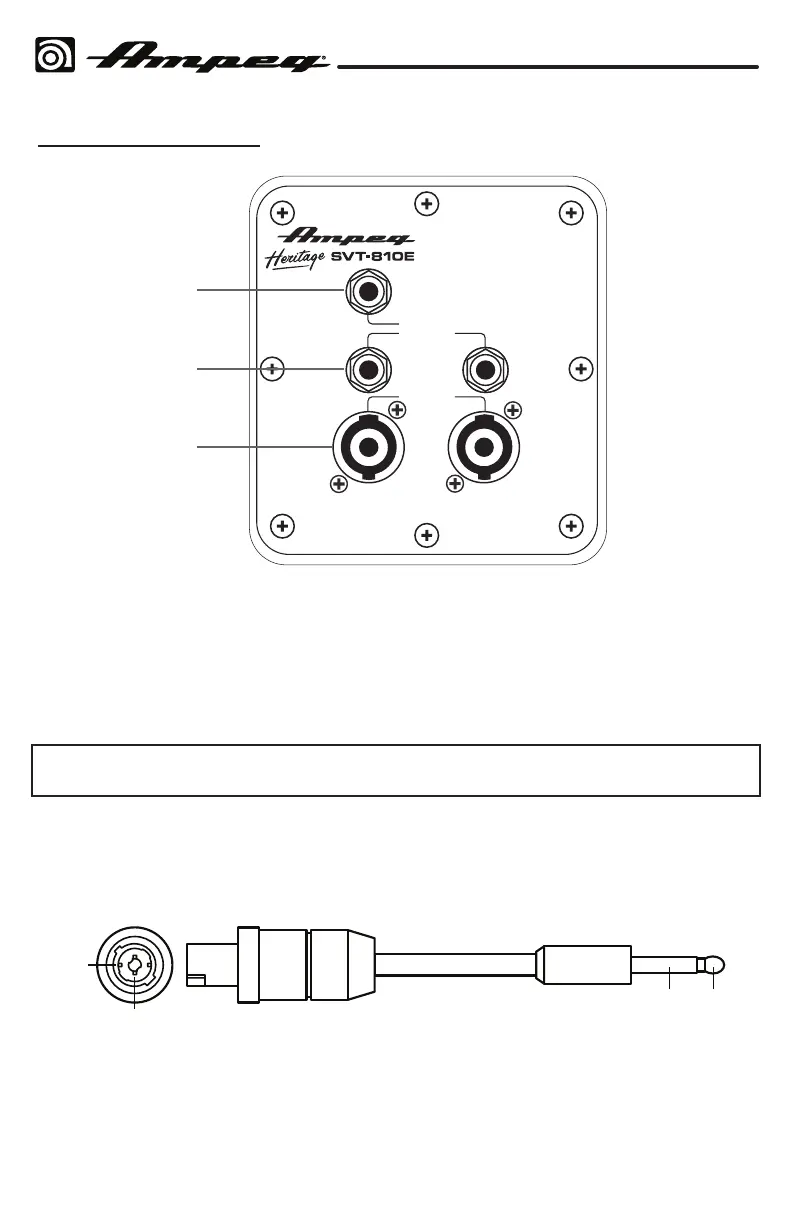

SVT-810E Jackplate
POWER HANDLING:
800W RMS (MONO)
400W RMS (DUAL)
IMPEDANCE:
4 OHMS (MONO)
8 OHMS (DUAL)
PIN 1+ = POS (+)
PIN 1- = NEG (-)
4X10-DUAL MODE ONLY
4X10-DUAL MODE
MONO INPUTS
-or-
3
2
1
1. 1/4" Upper 4x10 Dual Mode Input Jack
2. 1/4" Lower 4x10 Dual Mode or Mono Mode Input / Output Jacks
3. Speakon Lower 4x10 Dual Mode or Mono Mode Input / Output Jacks
The cabinet operates in Dual Mode whenever a connector is inserted into the 1/4" Upper 4x10
Dual Mode input jack [1]. Otherwise, the cabinet operates in the single 8x10 Mono Mode.
Speakon to 1/4" Wiring Diagram
1+
1-
1+
1-

Ampeg Heritage Series Specifications

General

Usable Low Frequency (-10dB)	40Hz
Corners	Metal
Input Connectors	2 x 1/4" jacks
Series	Heritage
Category	Enclosure
Covering	Tolex
Handle	Side Handles
