Page 10 of 12

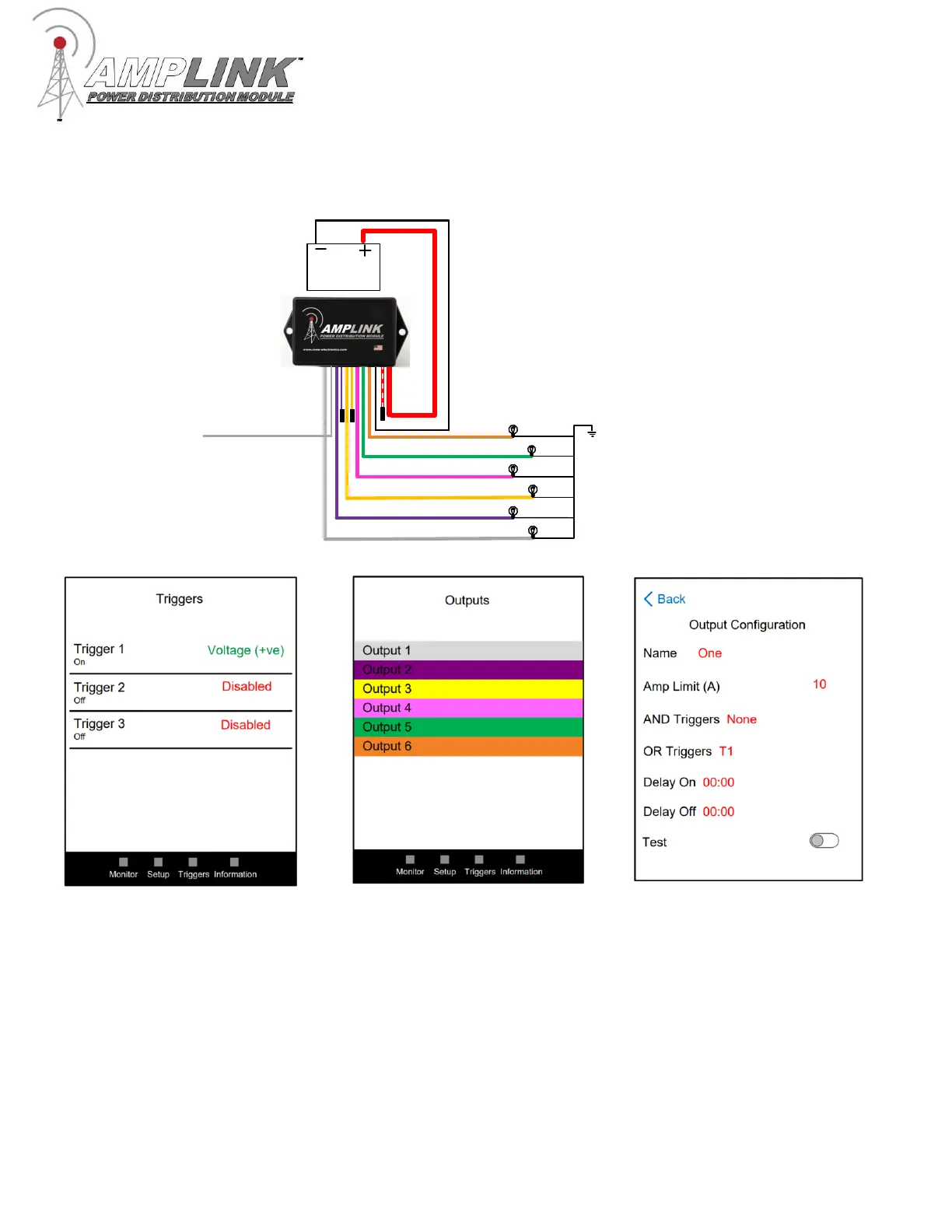

Wiring and App Setup Example 1
Ignition trigger only. Outputs 1-6 will turn on and off with ignition. Connect the
Red (+) wire to the battery before the black ground.
Configure the Amplink PDM using the App
Configure the trigger page as
shown, then proceed to the
Setup page by tapping Setup on
the bottom of the screen
On the Setup page tap each
output to open the configuration
page.
In the Configuration page set
the triggers as shown. You can
also set the output name, amp
limit and delay times. When
finished tap the <Back button
and proceed to the next output.
Set the triggers as shown on
each output
To Next Page
