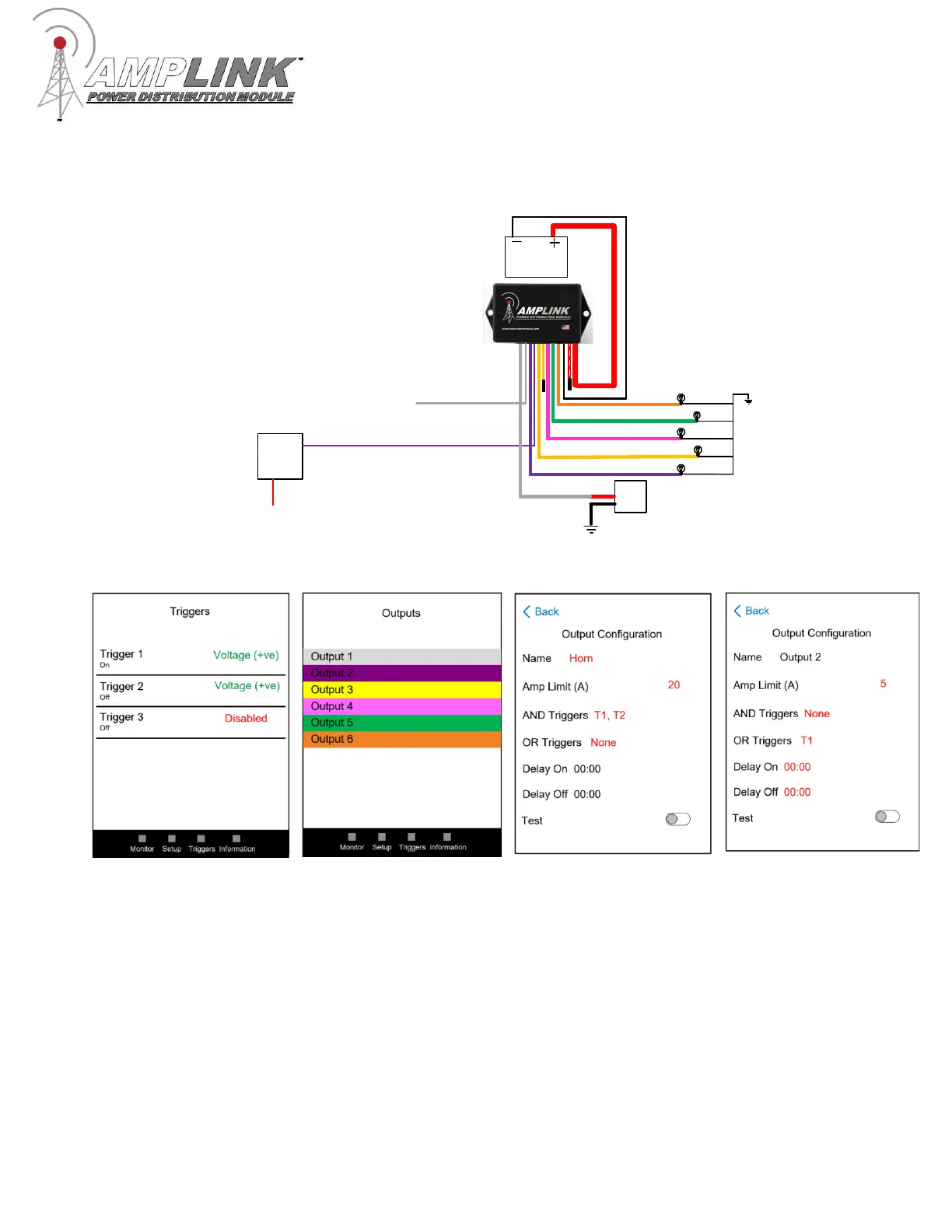

Wiring and App Setup Example 2
Ignition triggered outputs and Horn output. Outputs 2-6 will turn on and off with ignition, Output
1 will turn on when the ignition is on and the horn button is pressed.
Configure the Amplink PDM using the App
Configure the trigger
page as shown, then
proceed to the Setup
page by tapping Setup
on the bottom of the
screen
On the Setup page tap
each output to open
the configuration page.
In the Configuration
page for output 1
(horn), set the triggers
as shown. You can
also set the output
name and amp limit.
When finished tap the
<Back button and
proceed to the next
output.
In the Configuration
page for outputs 2-6,
set the triggers as
shown. You can also
set the output name,
amp limit and delay
times. When finished
tap <Back the button
and proceed to the
next output.
Horn
button
Horn
Trigger 2
12V
battery
Ignition switched
+12V source
+
12
V
