RESISTANCE OF THE THERMISTOR
STEP 1

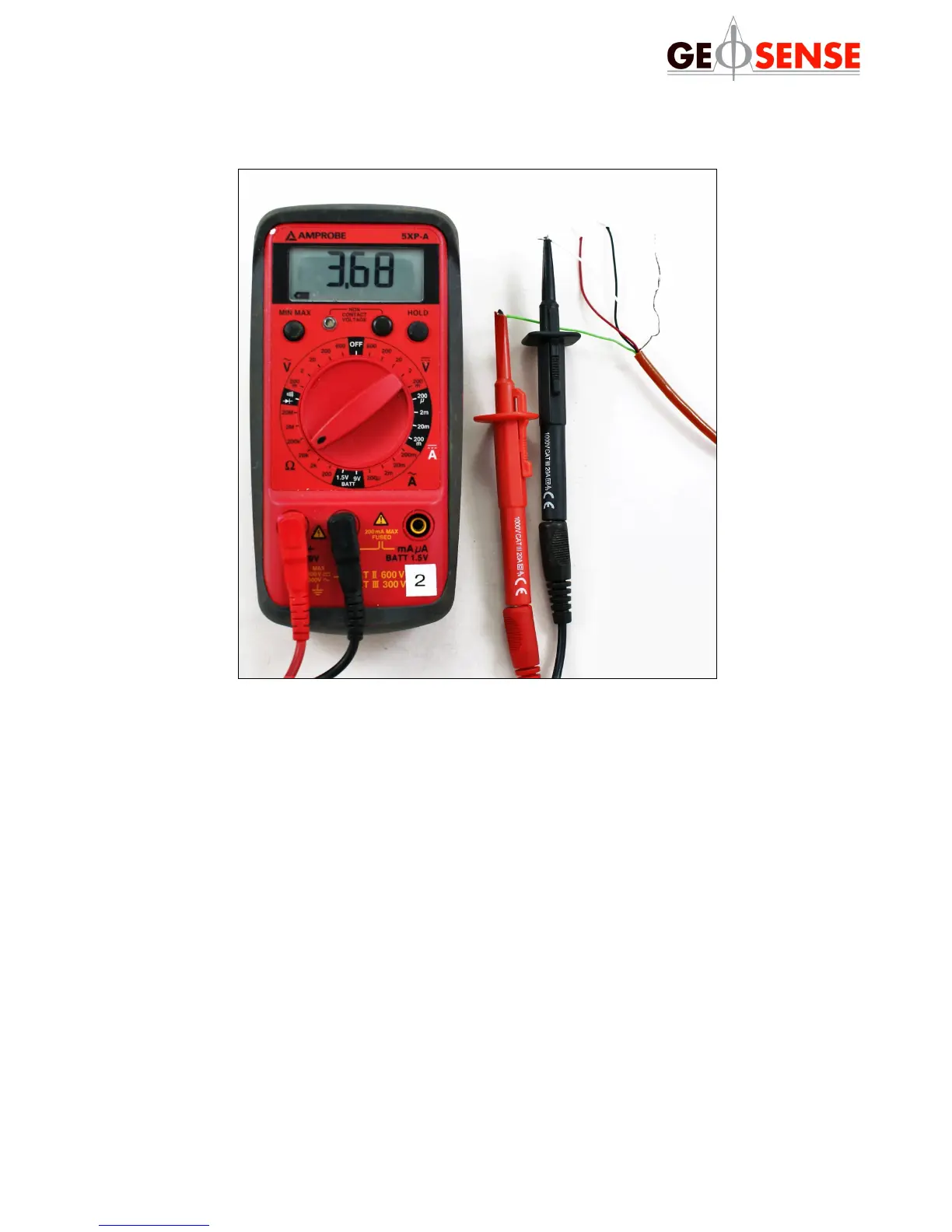

Set the range to 20kΩ or Ω if using a multi-meter which has automatic ranging.
STEP 2
Connect the T+ (green) conductor to the red lead on the multi-meter and the T- (white) to the black
lead on the multi-meter.
The readings will be dependent on the temperature as below:-
10°C ~ 5.971kΩ (5971Ω)
15°C ~ 4.714kΩ (4714Ω)
20°C ~ 3.478kΩ (3478Ω)
25°C ~ 3.000kΩ (3000Ω)
PLEASE REFER TO THE THERMISTOR LOOK UP TABLE ON PAGE 4
IF THESE VALUES DIFFER THEN THERE IS A PROBLEM WITH THE THERMISTOR OR IT’S
CONDUCTORS
