6
.
18. BEEP (3) Activates the audible indicator on or off. Numeric entry key for number three.
19.
(0) This key moves the cursor one digit left until it comes to the desired
digit to be varied. Numeric entry key for "0".
20.
ê
(.) This key decreases the value of the digit to be varied.
Decimal point key.
21.
è
This key moves the cursor one digit right until it comes to the digit to be
varied.
22. CH ( SELECT ) This key allows you to select channel 1 or channel 2 (Applicable only for the
PPS-2322 ).
23. UTILITY ( ENTER ) Reserved for future use. Enters the values in the setting mode and returns the
display to metering mode.

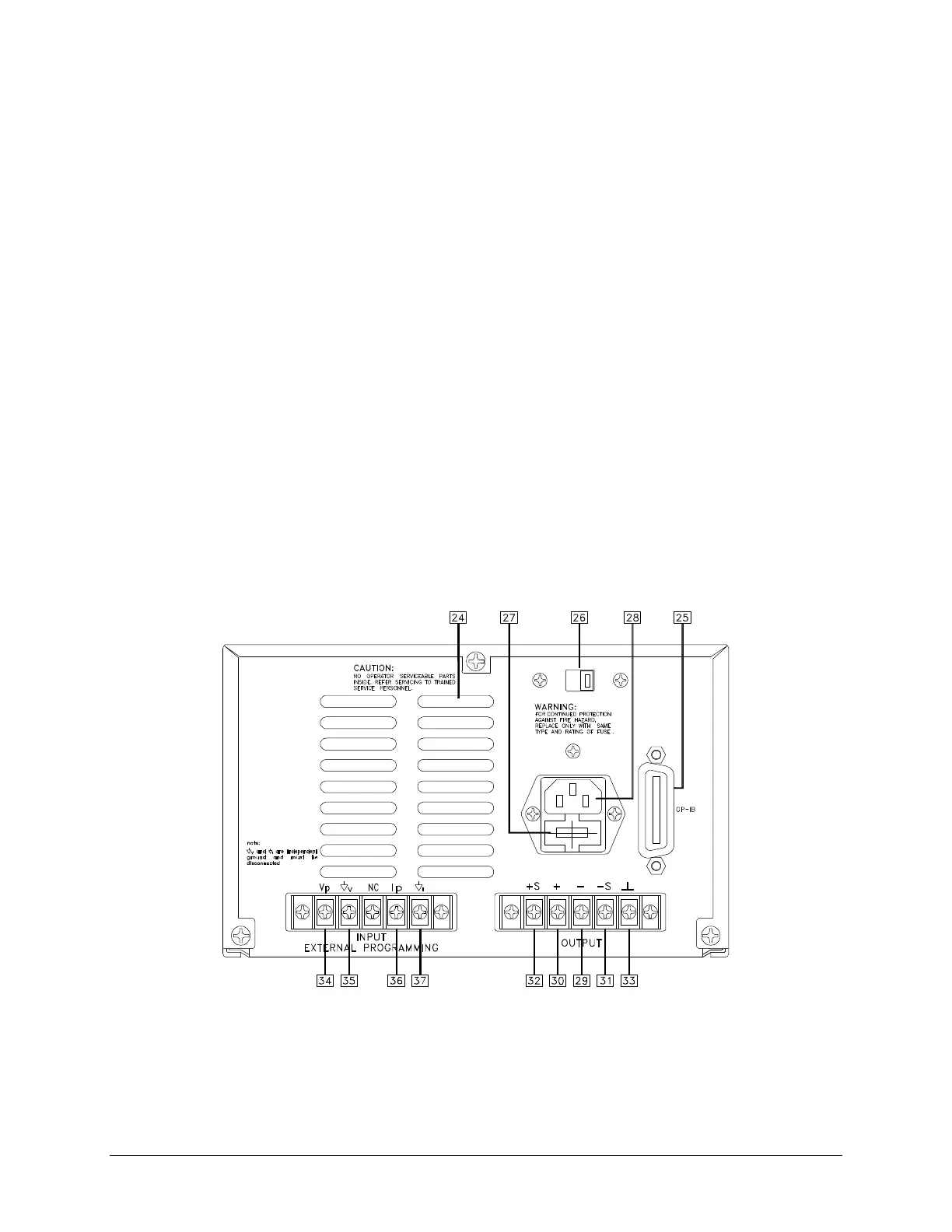

REAR PANEL: Figure E-1, E-2, E-3
Figure E -1. Rear Panel of PPS-1603/10710
